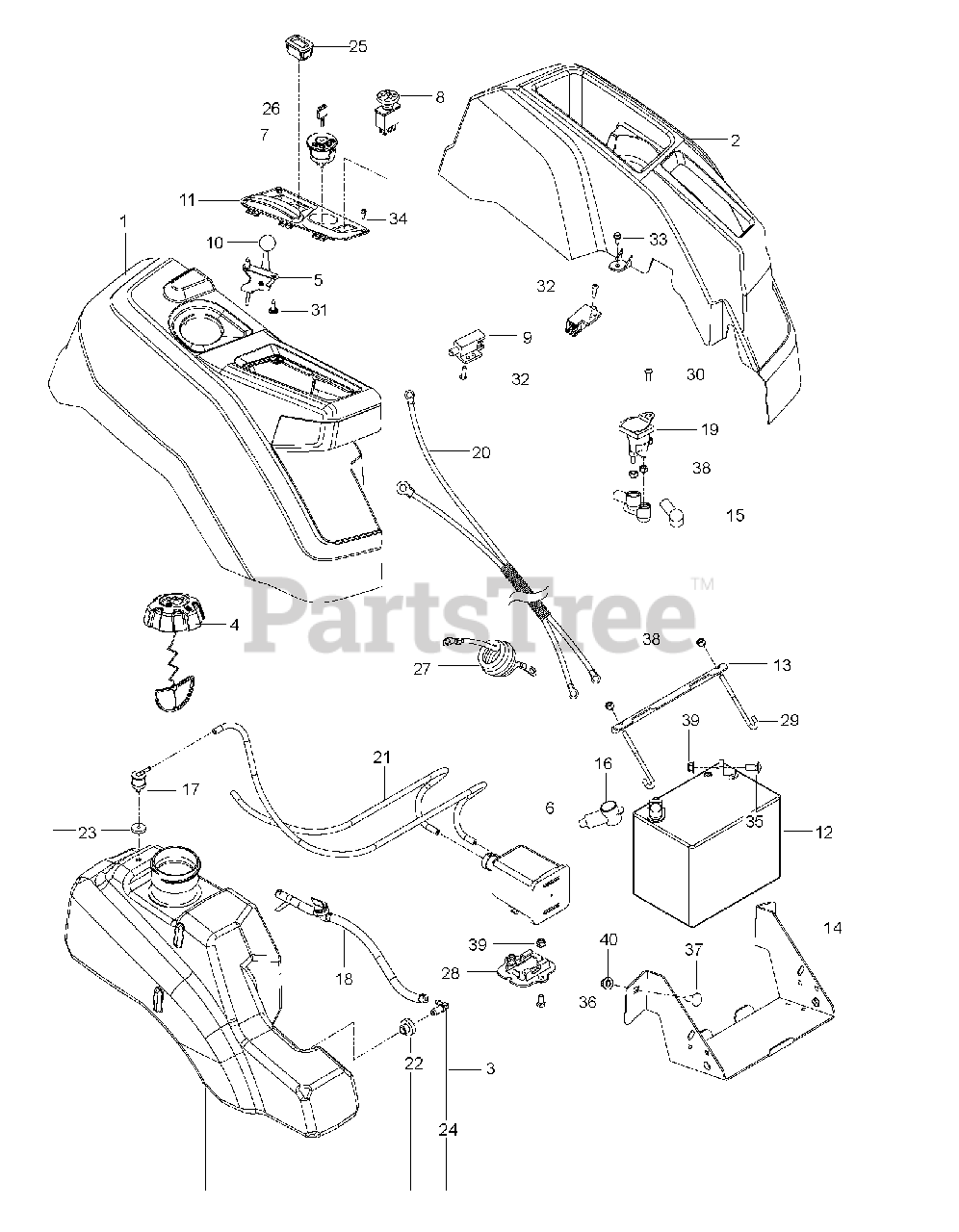

Z 246 (967271601-00) - Husqvarna 46" Zero-Turn Mower (2016-11) IGNITION SYSTEM Parts Diagram

46" Zero-Turn Mower

IGNITION SYSTEM Parts Diagram

  • Title

1

Husqvarna 585522801

CONSOLE.ASSY.RZ.REFRESH.RH
(Superseded to 598602602)

$102.99

$

In Stock, only 4 left!

0

2

Husqvarna 586621201

CONSOLE.LH.ASM
(Superseded to 586621202)

$91.99

$

In Stock, only 2 left!

0

3

Husqvarna 578180602

ASM.FUEL.TANK.LG.3".W/O SHIELD
(Superseded to 589924705)

$157.99

$

Usually ships in 3-10 days

0

4

Husqvarna 585124801

CAP ASSY FUEL 3" GRAY

$20.99

$

In Stock, only 1 left!

0

5

Husqvarna 585974902

CABLE.THROTTLE.37"

$66.99

$

In Stock, only 1 left!

0

6

Husqvarna 532414114

CANNISTER, CARBON

$62.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539107541

RP IGNITION SWITCH
(Superseded to 532175566)

$26.99

$

In Stock, Qty 7

0

8

Husqvarna 582107602

RP SWITCH.PTO.TERMINAL.STD.RED
(Superseded to 582107601)

$28.99

$

In Stock, only 3 left!

0

9

Husqvarna 587601501

SWITCH.INTLK.RZ.RFRSH.BUTTON

$13.99

$

In Stock, only 2 left!

0

10

Husqvarna 539133049

KNOB.ROUND.BALL.BLACK

$18.99

$

Usually ships in 3-10 days

0

11

Husqvarna 585522703

CONTROL.PANEL.RZ.REFRESH.RH

$11.99

$

In Stock, only 1 left!

0

12

Husqvarna 579411601

BATTERY, 12 V 300 AMP

$

$

Not available

13

Husqvarna 510030003

BRACKET.PNT.MOUNT.BATTERY.EDIP
(Superseded to 510030001)

$51.99

$

In Stock, only 1 left!

0

14

Husqvarna 582609602

BOX.PNT.BATTERY.RZ.EDIP

$37.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

16

Husqvarna 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

17

Husqvarna 576618101

VALVE.FUEL.CHECK

$25.99

$

In Stock, Qty 12

0

18

Husqvarna 586123904

FUEL.HOSE.SHUT.OFF.ASM.10".3"

$13.99

$

Usually ships in 3-10 days

0

19

Husqvarna 582042801

SOLENOID.STARTER.BRASS.PLUNGER
(Superseded to 582042802)

$26.99

$

In Stock, Qty 19

0

20

Husqvarna 587198601

HARNESS.BTTRY.CABLE.RZ.REFRESH

$31.99

$

Usually ships in 3-10 days

0

21

Husqvarna 587044533

HOSE.3/16".VAPOR.LINE.33"LGTH

$6.49

$

Usually ships in 3-10 days

0

22

Husqvarna 532003645

BUSHING OUTLET T

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532437492

GROMMET.ROV.SENTEC
(Superseded to 584648201)

$4.99

$

In Stock, only 4 left!

0

24

Husqvarna 532139277

STEM FUEL TANK

$8.99

$

In Stock, Qty 7

0

25

Husqvarna 586161801

GUAGE.SRVCMNDR.HRMTR.
(Superseded to 594919101)

$24.99

$

In Stock, Qty 6

0

26

Husqvarna 532140401

KEY MLD GEN DELTA

$6.99

$

In Stock, Qty 8

0

27

Husqvarna 539103306

CABLE POSITIVE, LONG
(Superseded to 586108201)

$10.99

$

In Stock, only 2 left!

0

28

Husqvarna 575242701

BRACKET, CANISTER

$10.99

$

Usually ships in 3-10 days

0

29

Husqvarna 588839401

HOOK.J.BATTERY

$4.99

$

In Stock, only 2 left!

0

30

Husqvarna 539111229

SCR 1/4-20 X 5/8 BTN SKT HD ZD

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532141841

SCREW.PAN.HEAD.#10

$7.49

$

In Stock, only 2 left!

0

32

Husqvarna 586936001

SCREW.BUTTONHD.10-24X1/2.(2 2)

$4.99

$

In Stock, only 1 left!

0

33

Husqvarna 817490408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 545227101

SCREW 6-19X.437

$4.99

$

In Stock, only 2 left!

0

35

Husqvarna 872140506

BOLT 5/16-18 X3/4 ZN/YEL GR 5
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

36

Husqvarna 539108392

HCS 5/16-18 X 5/8 GR 5 ZD
(Superseded to 596031601)

$3.99

$

In Stock, only 3 left!

0

37

Husqvarna 539990645

RHSNB 3/8C X 1

$

$

Not available

38

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

39

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

40

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

Husqvarna 586337301

HARNESS.MAIN.RZ.WITHOUT.BRAKE

Note: NOT SHOWN

$93.99

$

In Stock, only 1 left!

0

Husqvarna 532109748

RELAY.ASSY.T

Note: NOT SHOWN

$30.99

$

In Stock, only 1 left!

0
