Z 242 F (967665703-00) - Husqvarna 42" Zero-Turn Mower (2020-09) ENGINE MOUNTING, GUARDS & MUFFLER Parts Diagram

42" Zero-Turn Mower

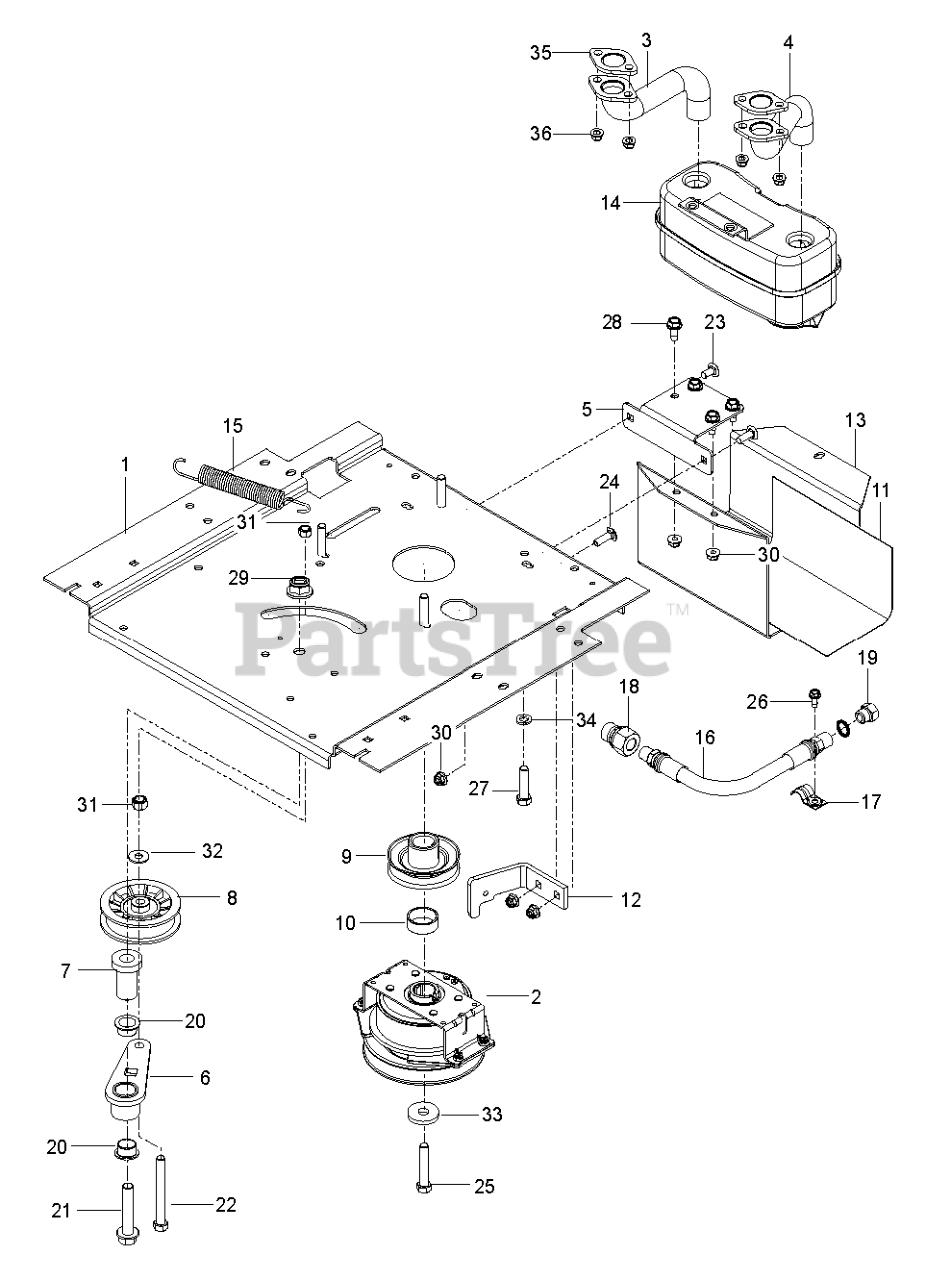

ENGINE MOUNTING, GUARDS & MUFFLER Parts Diagram

  • Title

10

Husqvarna 587660101

SPACER.SPACER.625 W/OGURA.LCC

$6.99

$

In Stock, only 3 left!

0

5

Husqvarna 581886702

BRACKET MUFFLER MS431BLK

$34.99

$

In Stock, only 1 left!

0

15

Husqvarna 532196105

SPRING, DECK DRIVE

$7.99

$

In Stock, Qty 8

0

25

Husqvarna 581332803

CLUTCH BOLT7/16-20X2.5 GR524HR
(Superseded to 581332806)

$8.99

$

In Stock, Qty 9

0

34

Husqvarna 539990118

SLW 3/8 STD
(Superseded to 596238701)

$4.99

$

In Stock, Qty 16

0

36

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

$6.49

$

In Stock, only 1 left!

0

4

Husqvarna 583955601

TUBE.EXHAUST.LH.FR961/FR730

$37.99

$

In Stock, only 1 left!

0

1

Husqvarna 593898602

PLATE ENGINE; RZ, 23IN BLACK
(Superseded to 598736102)

$74.99

$

Usually ships in 3-10 days

0

20

Husqvarna 501603701

BEARING.FLANGED.PLASTIC.3/4ID

$6.99

$

In Stock, only 4 left!

0

2

Husqvarna 587241601

CLUTCH.OGURA.5.0PD.GT1.5A-EH07

$278.99

$

In Stock, only 1 left!

0

31

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 539131604

MUFFLER ASM TWIN

$45.99

$

In Stock, only 4 left!

0

28

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

24

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

Husqvarna 522598601

KAWASAKI PIGTAIL

Note: KAWASAKI ENG ONLY

$20.99

$

Usually ships in 3-10 days

0

27

Husqvarna 874780620

BOLT
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

32

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

17

Husqvarna 539101363

CLAMP

$3.99

$

In Stock, only 1 left!

0

35

Husqvarna 532178151

GASKET

$2.49

$

In Stock, Qty 20+

0

8

Husqvarna 532177968

PULLEY.IDLER.FLAT

$31.99

$

In Stock, Qty 9

0

Husqvarna 590511701

NEEDS DESCRIPTION

Note: Engine, Kawasaki FR600V 18 HP. For engine replacement parts, see a Kawasaki dealer.

$

$

Currently unavailable

9

Husqvarna 587537401

PULLEY.ENGINE

$26.99

$

In Stock, only 3 left!

0

16

Husqvarna 584825501

HOSE.ASSEMBLY.OIL.DRAIN

$31.99

$

In Stock, only 1 left!

0

12

Husqvarna 587633302

CLUTCH.STOP.OGURA LCC.BLACK

$9.49

$

In Stock, only 1 left!

0

13

Husqvarna 587451202

GUARD.MUFFLER.WO.TOW.HITCHX431

$51.99

$

Usually ships in 3-10 days

0

19

Husqvarna 585807101

PLUG OIL DRAIN

$4.99

$

In Stock, only 2 left!

0

11

Husqvarna 539132859

HEAT SHIELD

$36.99

$

Usually ships in 3-10 days

0

26

Husqvarna 817490410

SCR 1/4-20X5/8 HEX SELF TAP ZD

$

$

Not available

7

Husqvarna 582538901

SPINDLE.IDLER
(Superseded to 582538902)

$5.99

$

In Stock, only 4 left!

0

18

Husqvarna 522599001

ADAPTER, OIL DRAIN
(Superseded to 522599002)

$

$

Not available

3

Husqvarna 583955701

TUBE.EXHAUST.RH.FR961/FR730

$37.99

$

In Stock, only 1 left!

0

33

Husqvarna 532126197

WASHER

$8.99

$

In Stock, only 3 left!

0

6

Husqvarna 532448145

ARM IDLER
(Superseded to 583593901)

$13.99

$

In Stock, only 4 left!

0

29

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

Husqvarna 589543901

KIT.ARM.IDLER.RZ

Note: NOT SHOWN

$37.99

$

Usually ships in 3-10 days

0

21

Husqvarna 582539501

BOLT.FLANGE.1/2-13 X 2.75.GRD5

$

$

Not available

23

Husqvarna 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 874520656

HCS 3/8-16X3-1/2 TAPBLT GR5 ZD

$

$

Not available

30

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0
