Z 242 F (967602801-01) - Husqvarna 42" Zero-Turn Mower (2016-01) DECALS Parts Diagram

42" Zero-Turn Mower

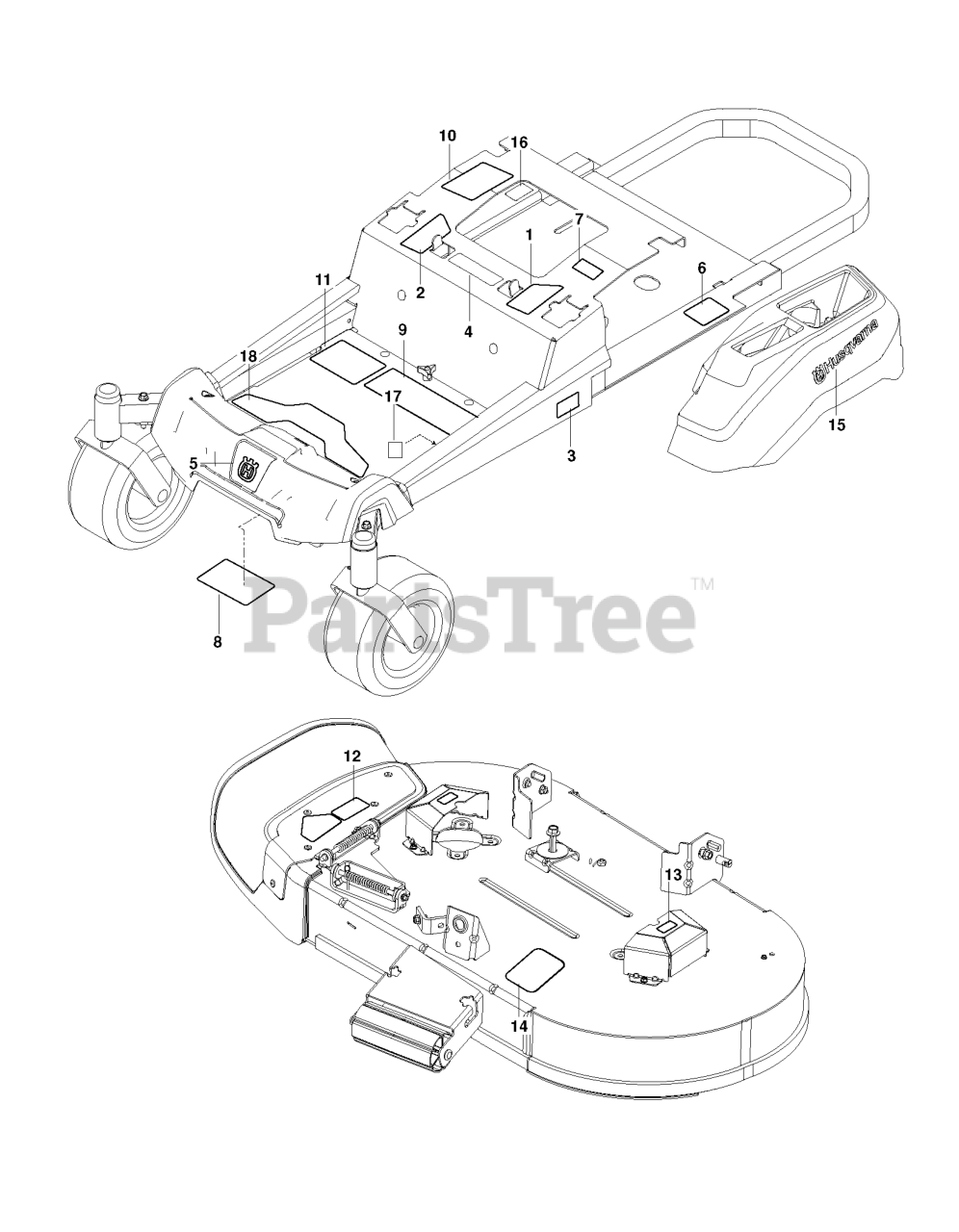

DECALS Parts Diagram

  • Title

9

Husqvarna 583934001

DECAL.ZTR.WARNING.SMARTIGNITIN
(Superseded to 590485501)

Note: WARNING

$11.99

$

In Stock, only 1 left!

0

2

Husqvarna 587595501

DECAL.ZTR.RZ.THRTL/PRKBRK.V2.R

Note: STEER / BRAKE RT

$3.49

$

Usually ships in 3-10 days

0

17

Husqvarna 581724102

DECAL.80.DBA.AUSTRALIA

Note: 80 DBA

$

$

Not available

7

Husqvarna 539108386

DECAL, EXITING MOWER

Note: EXIT MOWER

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 588035101

DECAL.ZTR.STARTINSTRCT.CHOKE15

Note: START

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532428677

DECAL.BADGE.55MM.CROWNH.HUSQ

Note: CROWN

$6.99

$

In Stock, only 2 left!

0

16

Husqvarna 501082601

DECAL CERTIFICATION DECAL EMCC

Note: ECM AUST

$14.99

$

Usually ships in 3-10 days

0

13

Husqvarna 581724301

DECAL.DECK.6MIL.EURO.NOSTEP

Note: NO STEP

$4.99

$

In Stock, only 3 left!

0

8

Husqvarna 539109897

DECAL, SERVICE

Note: SERVICE

$4.99

$

Usually ships in 3-10 days

0

1

Husqvarna 587595601

DECAL.ZTR.RZ.THRTL/PRKBRK.V2.L

Note: STEER / BRAKE LT

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna 577469001

DECAL.HUSQVARNA.210MM

Note: HUSQVARNA

$13.99

$

In Stock, only 4 left!

0

3

Husqvarna 587769201

DECAL.ZTR.SIDRAIL.Z242F.HUS

Note: Z 242F

$7.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539105745

EURO DECAL-BATTERY WARNIN6

Note: BATTERY WARNING

$6.49

$

Usually ships in 3-10 days

0

12

Husqvarna 586978801

DECAL.TRACT/ZTR.DECKWARN.HUSQ
(Superseded to 585302001)

Note: DEFLECTOR

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 581580001

DECAL.V-BELT.SCH.42/46"MEC/ELE
(Superseded to 531229001)

Note: BELT ROUTING

$2.49

$

Usually ships in 3-10 days

0

10

Husqvarna 539110522

DECAL, CUSTOMER RESPNSIBILITY
(Superseded to 532423829)

Note: RESPONSIBILITY

$40.99

$

In Stock, only 1 left!

0

18

Husqvarna 587000701

PAD.RZ.FOOTREST.PLATE

$11.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539108385

DECAL, DO NOT TOW
(Superseded to 585142401)

Note: DO NOT TOW

$2.49

$

Usually ships in 3-10 days

0
