Z 242 F (967324401) - Husqvarna 42" Zero-Turn Mower (2015-01) MOWER DECK / CUTTING DECK Parts Diagram

42" Zero-Turn Mower

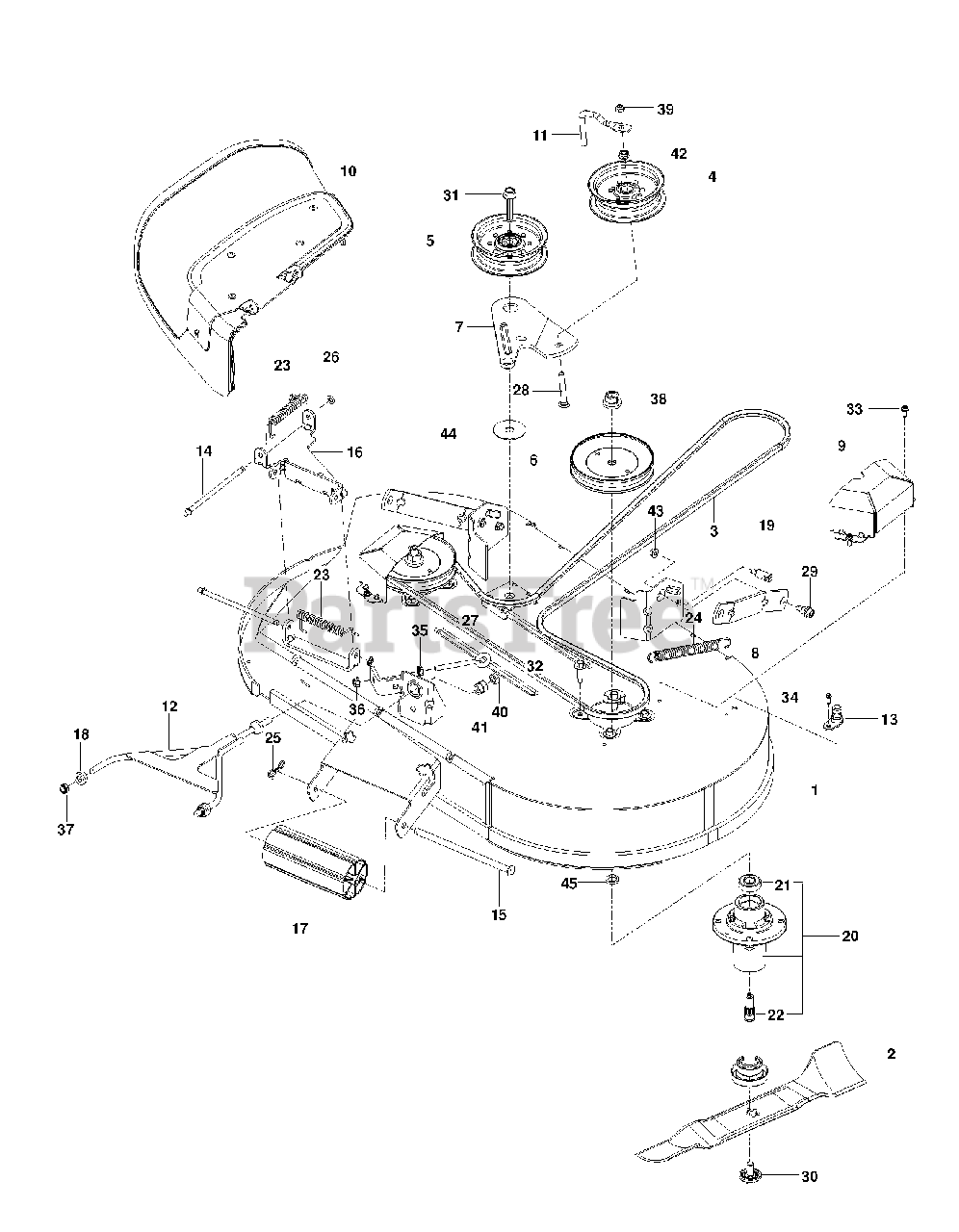

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Husqvarna 586979402

HOUSING.ASM.PNT.42.WELL.ZTR
(Superseded to 596973202)

$1152.99

$

Usually ships in 3-10 days

0

2

Husqvarna 586918101

BLADE.42.FCS.BAGGING.BLADE.RAW
(Superseded to 586918102)

$31.99

$

In Stock, Qty 6

0

3

Husqvarna 587270001

BELT.42.FCS.ZTR.DECK.DRIVE

$74.99

$

In Stock, only 3 left!

0

4

Husqvarna 532196106

PULLEY.IDLER.2006

$39.99

$

In Stock, Qty 20+

0

5

Husqvarna 532196104

PULLEY.IDLER.MWR.STATI.LH

$43.99

$

In Stock, Qty 18

0

6

Husqvarna 532199791

PULLEY MANDREL 5.0"

$31.99

$

In Stock, only 2 left!

0

7

Husqvarna 586874002

ARM.42"FCS.CLUTCHING.X431

$20.99

$

Usually ships in 3-10 days

0

8

Husqvarna 587140502

ARM.RFIXED.MOWER.SUSPNSIONX431

$6.99

$

Usually ships in 3-10 days

0

9

Husqvarna 586936802

COVER.42".MANDREL.FCS X668

$9.49

$

In Stock, only 2 left!

0

10

Husqvarna 587305701

DEFLECTOR.ASM.42.FCS.ORANGE

$87.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532198468

KEEPER.BELT.IDLER.54"T

$17.99

$

Usually ships in 3-10 days

0

12

Husqvarna 587256302

LINK.FRONT.WLDMNT.RZ X431

$43.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 12

0

14

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

15

Husqvarna 532179127

ROD.ROLLER.NOSE.NARROW.48"
(Superseded to 594092501)

$6.99

$

In Stock, Qty 20+

0

16

Husqvarna 586918002

BRACKET.42".FCS.DBLE.HINGEX668

$20.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532176066

NOSE ROLLER 48"

$13.99

$

In Stock, Qty 20+

0

18

Husqvarna 532195263

BUSHING SPHERICAL SUSP. FRONT

$

$

Not available

19

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

20

Husqvarna 539112170

MANDREL.DECK.ASSEMBLY

$79.99

$

In Stock, Qty 20+

0

21

Husqvarna 532110485

BEARING

$13.99

$

In Stock, Qty 14

0

22

Husqvarna 532187291

SHAFT ASM MANDREL

$28.99

$

In Stock, Qty 7

0

23

Husqvarna 587354701

SPRING.42.FCS.DEFLECTOR

$6.99

$

In Stock, Qty 10

0

24

Husqvarna 532197251

SPRING.MOWER.DRIVE.ELECTRIC

$11.99

$

In Stock, only 2 left!

0

25

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539115574

EYE BOLT 5/16 X 3.50

$

$

Not available

28

Husqvarna 872140620

BOLT

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

30

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

31

Husqvarna 587333301

SCREW.7/16-14X2.125.HEX.WSH.HD
(Superseded to 588438301)

$6.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

33

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 19

0

34

Husqvarna 532152927

SCREW.TT.#10-32X.5.3/8.FLANGE

$7.49

$

In Stock, only 2 left!

0

35

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

37

Husqvarna 573975201

NUT, 7/16-20 HEX NYLOC ZC

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

39

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

40

Husqvarna 873610700

NUT.ASF.HEX.7/16

$7.49

$

In Stock, only 1 left!

0

41

Husqvarna 532175994

NUT, LIFT LINK 7/16-20
(Superseded to 589464902)

$4.99

$

In Stock, Qty 13

0

42

Husqvarna 532083923

HEX FLANGE LOCKNT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

43

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

44

Husqvarna 532178515

WASHER

$6.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 8

0
