Z 2205KV (80920) - Snapper Zero-Turn Mower, 22hp Single Idler Assembly Parts Diagram

Zero-Turn Mower, 22hp

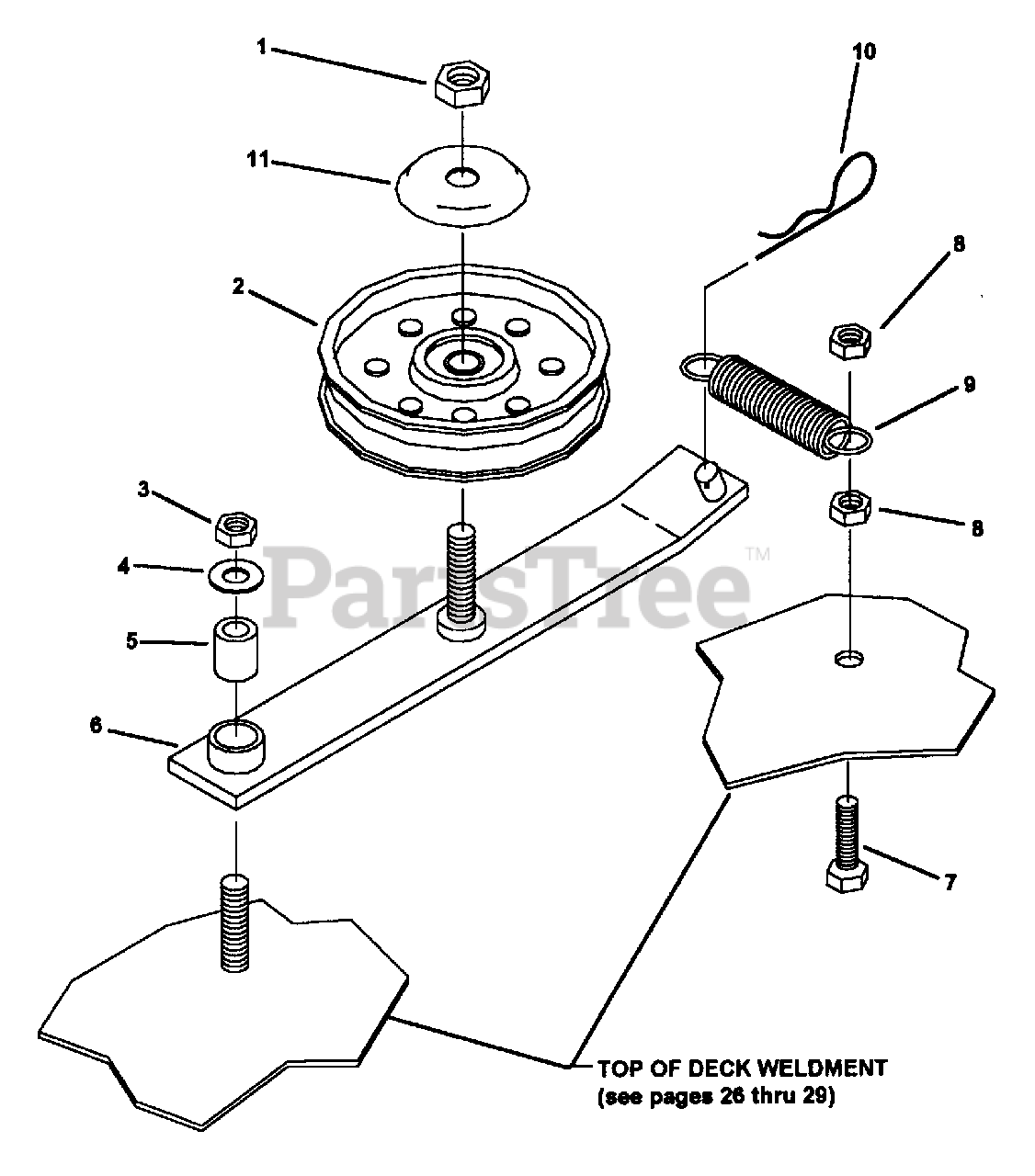

Single Idler Assembly Parts Diagram

  • Title
1

Snapper 7079277

NUT, HEX. 1/2-13 NYLOC

$

$

Not available

2

Snapper 7079167

PULLEY, FLAT IDLER, 1/2" BORE, 4" O.D.
(Superseded to 7079167YP)

$59.99

$

Usually ships in 2-12 days

0

3

Snapper 7091299

NUT, HEX. 3/8-16 NYLOC
(Superseded to 703117)

Note: Was 79273

$3.49

$

In Stock, Qty 20+

0

4

Snapper 7090517

WASHER, FLAT STD. 3/8" W SERIES
(Superseded to 7090517SM)

Note: Was 90600

$4.49

$

In Stock, Qty 8

0

5

Snapper 7079174

BEARING OILITE, 3/8 I.D. X 5/8" O.D.
(Superseded to 7079174YP)

$11.99

$

Usually ships in 2-12 days

0

6

Snapper 7079015

SINGLE IDLER ARM WELDMENT, 60" DECK

$

$

Not available

6

Snapper 7079880

NLA - SINGLE IDLER ARM WELDMENT, 42" & 48" DECK

$

$

Currently unavailable

7

Snapper 7090824

BOLT, 3/8-24 X 1-1/4" GR. 5
(Superseded to 7090824YP)

Note: Was 79422

$4.99

$

In Stock, Qty 9

0

8

Snapper 7090289

LOCKNUT, HEX. 3/8"-24 YZ GR5
(Superseded to 703458)

Note: Was 79327

$4.99

$

In Stock, Qty 14

0

9

Snapper 7079217

SPRING, EXTENSION, 3/4 X 4" O.A.L.
(Superseded to 7079217YP)

$9.49

$

In Stock, Qty 5

0

10

Snapper 7079289

NLA - PIN, HAIR SPRING, 1/8 X 2-1/2"

$

$

Not available

11

Snapper 7062286

WASHER, BEARING CAP
(Superseded to 7062286YP)

$11.99

$

Usually ships in 2-12 days

0
