Z 2205KV (7080920) - Snapper Zero-Turn Mower, 22hp Parking Brake Assembly Parts Diagram

Zero-Turn Mower, 22hp

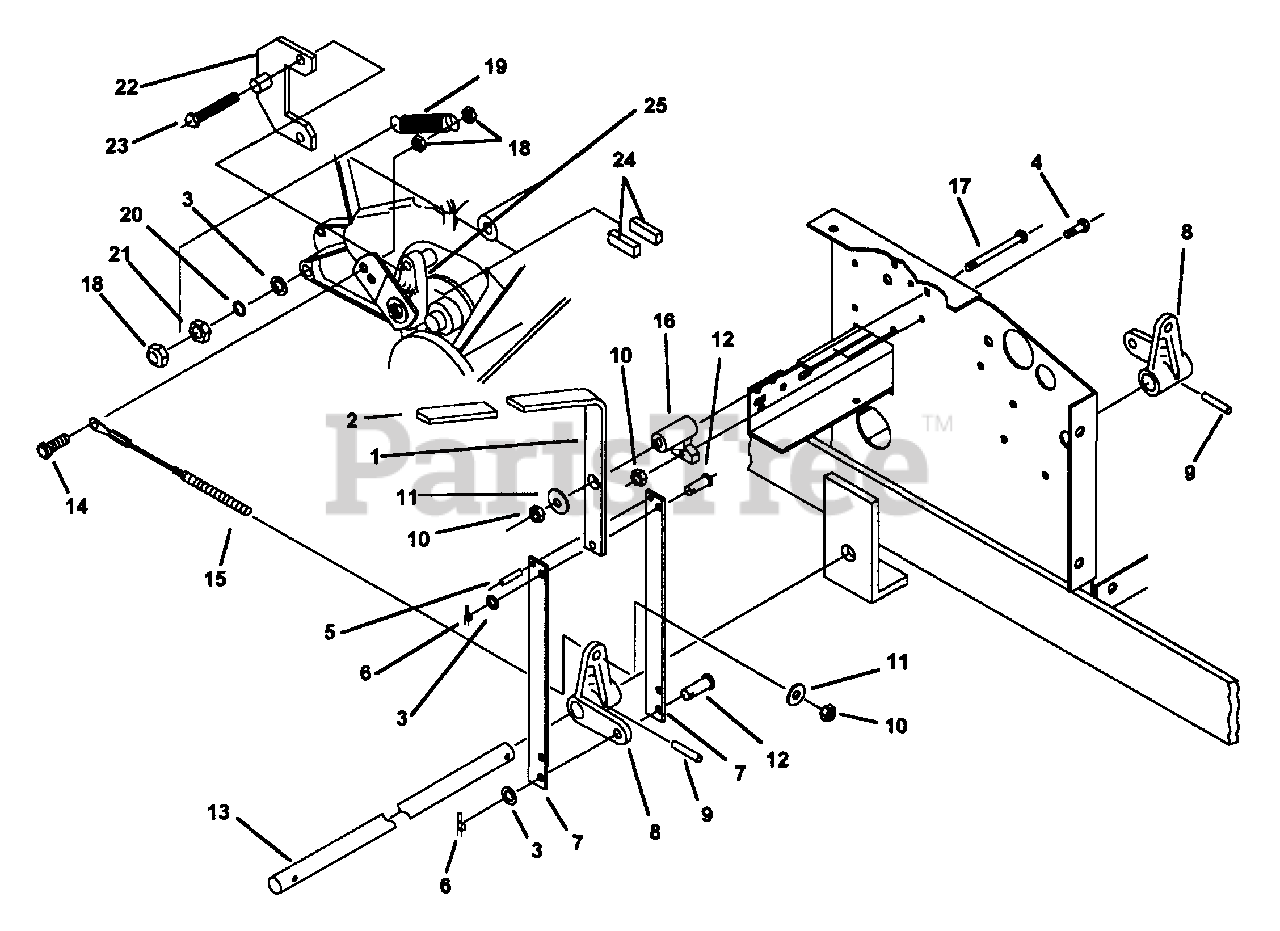

Parking Brake Assembly Parts Diagram

  • Title

1

Snapper 7079692

BRAKE HANDLE
(Superseded to 7079692YP)

$10.99

$

Usually ships in 2-12 days

0

2

Snapper 7079860

GRIP, HANDLE
(Superseded to 7079860YP)

$3.99

$

Usually ships in 2-12 days

0

3

Snapper 7090188

WASHER, FLAT STD. 5/16"
(Superseded to 703350)

$4.49

$

In Stock, Qty 6

0

4

Snapper 7077761

BOLT, 1/4-20 X 1" GR.5
(Superseded to 7077761YP)

Note: Was 79265

$3.99

$

Usually ships in 2-12 days

0

5

Snapper 7079319

NLA - ROLL PIN, 3/16 X 7/8" LONG, SPIRAL

$

$

Currently unavailable

6

Snapper 7091593

COTTER PIN, SELF LOCKING, 5/16 - 3/8
(Superseded to 703355)

Note: Was 79291

$3.99

$

In Stock, Qty 14

0

7

Snapper 7062444

HANDLE LINK

$

$

Not available

8

Snapper 7079728

BRAKE ARM
(Superseded to 7079728YP)

$26.99

$

Usually ships in 2-12 days

0

9

Snapper 7079294

PIN, SPIRAL ROLL, 3/16 X 1" LIGHT DUTY
(Superseded to 7079294YP)

$2.99

$

In Stock, only 1 left!

0

10

Snapper 7076978

NUT, 1/4-20 NYLOCK
(Superseded to 703232)

Note: Was 79260 (Now 76978 + 90372)(Quantity of 4 may be used)

$4.49

$

In Stock, Qty 20+

0

11

Snapper 7091294

WASHER, FLAT STD. 1/4"
(Superseded to 703332)

Note: Was 79410 (Quantity of 3 may be used)

$4.49

$

In Stock, Qty 20+

0

12

Snapper 7073953

CLEVIS PIN, 5/16 X 7/8" LONG
(Superseded to 7073953YP)

Note: Was 79283

$2.99

$

Usually ships in 2-12 days

0

13

Snapper 7079702

NLA - BRAKE ROD

$

$

Currently unavailable

14

Snapper 7076934

BOLT, 5/16-18 X 3/4" GR.5
(Superseded to 7076934YP)

Note: Was 79315

$3.49

$

Usually ships in 2-12 days

0

15

Snapper 7062482

CABLE ASSEMBLY, BRAKE
(Superseded to 7062482YP)

$21.99

$

Usually ships in 2-12 days

0

16

Snapper 7062311

BRAKE LEVER MOUNT
(Superseded to 7062311YP)

$23.99

$

Usually ships in 2-12 days

0

17

Snapper 7091317

BOLT, 1/4-20 X 3", HEX HEAD
(Superseded to 704208)

Note: Was 62259

$4.49

$

Usually ships in 2-12 days

0

18

Snapper 7062401

LOCKNUT, 5/16-18 STOVER
(Superseded to 7062401YP)

$2.99

$

Usually ships in 2-12 days

0

19

Snapper 7062476

SPRING, EXT., 7/16" X 2-1/2"

$

$

Not available

20

Snapper 7079267

LOCKWASHER, 5/16" SPLIT SPRING
(Superseded to 7079267YP)

$3.49

$

Usually ships in 2-12 days

0

21

Snapper 7079573

NUT, 5/16-18 PLAIN

$

$

Currently unavailable

22

Snapper 7062459

BRAKE STOP PLATE ASSEMBLY
(Superseded to 7062459YP)

$20.99

$

Usually ships in 2-12 days

0

23

BOLT, 1/4-20 X 1-1/2" GR. 5 W/PATCH (COMES W/GEARBOX)

$

$

Not available

24

Snapper 7024404

BRAKE PUCK, REPLACEMENT
(Superseded to 7024404YP)

Note: Was 62245

$13.99

$

Usually ships in 2-12 days

0

25

Snapper 7062542

BRAKE YOKE, MACHINED, ASSEMBLED
(Superseded to 7062542YP)

$36.99

$

Usually ships in 2-12 days

0
