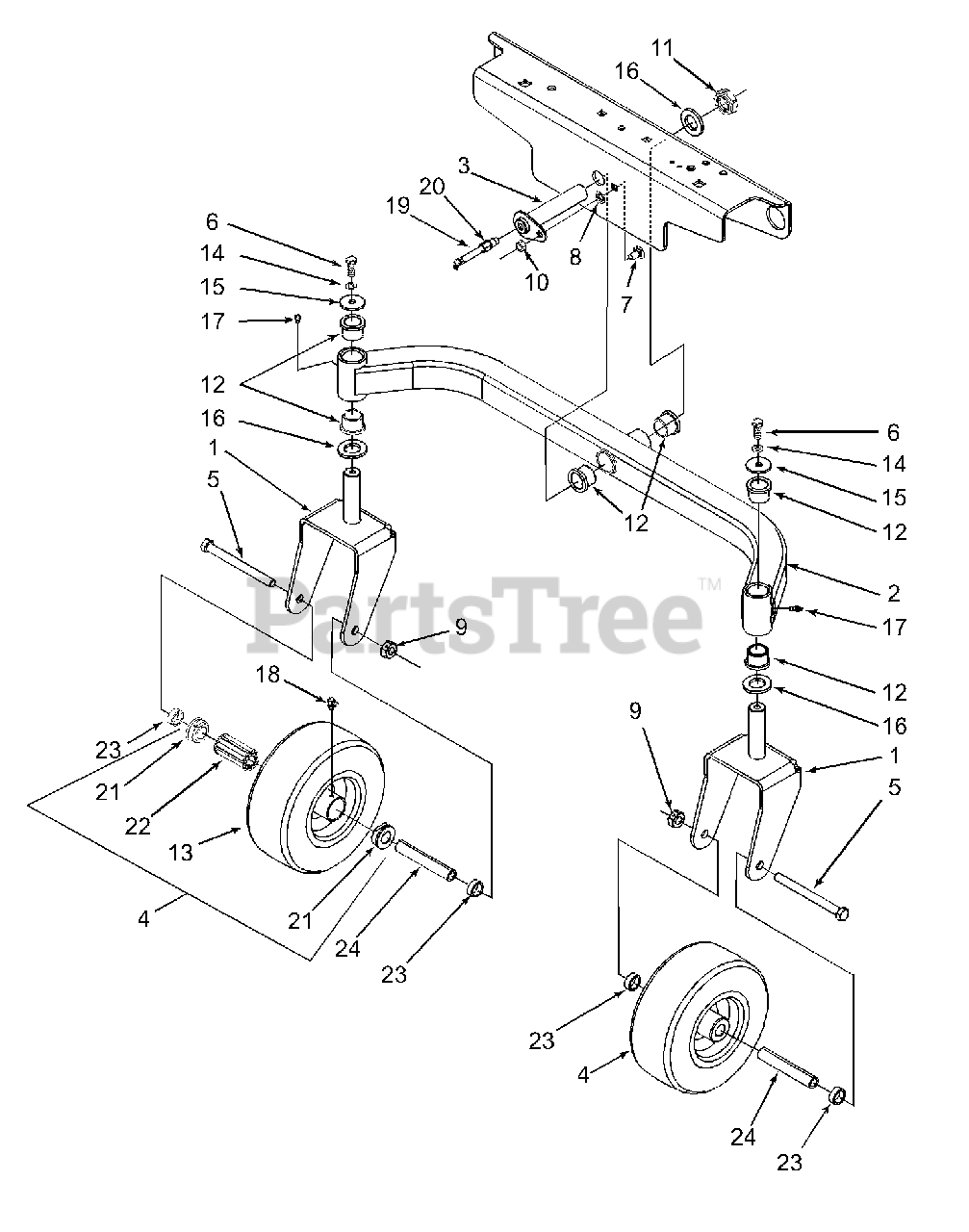

Z-220 (53BA1A7K190) - White Outdoor 54" Zero-Turn Mower Front Axle And Tire Assembly Parts Diagram

54" Zero-Turn Mower

Front Axle And Tire Assembly Parts Diagram

  • Title

1

White Outdoor 603-0363

Bracket, Castor Wheel
(Superseded to 603-0363A)

Variations

White Outdoor 603-0363-0498

Caster Wheel Bracket - OLD CUB YELLOW (0498)

$114.99

$

Usually ships in 3-6 days

0

White Outdoor 603-0363-0637

Caster Wheel Bracket - POWDER BLACK (0637)

$114.99

$

Usually ships in 3-6 days

0

White Outdoor 603-0363-0648

Caster Wheel Bracket - TECH GRAY (0648)

$114.99

$

Usually ships in 3-6 days

0

$114.99

$

Usually ships in 3-6 days

0

2

White Outdoor 603-0382

Axle Ass'y Front
(Superseded to 903-0382)

Note: Inc. 12 & 17

Variations

White Outdoor 603-0382-0498

No Longer Available AXLE ASM FR - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 603-0382-0648

AXLE ASSY: FRONT - TECH GRAY (0648)

$

$

Not available

$

$

3

White Outdoor 603-0389A

Pin Ass'y, Pivot

$

$

Not available

4

White Outdoor 634-3164

Wheel Comp 11.0 x 4.0 x 5.0

$

$

Not available

5

White Outdoor 710-0506

Screw, Hex Cap, 1/2-20 x 5.5

$10.99

$

In Stock, only 2 left!

0

6

White Outdoor 710-0514

Screw, Hex Cap, 3/8-16 x 1.0 GR5

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 710-3178

Bolt, Carriage, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 712-0229

Push Nut, Retainer, 3/8 ID

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 712-0239

Nut, Hex Center Lock, 1/2-20

$5.99

$

In Stock, Qty 20+

0

10

White Outdoor 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

11

White Outdoor 712-3075

Nut, Hex Lock, 1.0-14
(Superseded to 712-05008)

$14.99

$

In Stock, only 1 left!

0

12

White Outdoor 731-0374

Bearing, Flange, 1.0 ID
(Superseded to 931-0374)

$7.49

$

In Stock, only 3 left!

0

13

White Outdoor 734-3179

Tire, Urethane, Only

$

$

Not available

14

White Outdoor 736-0169

Washer, Lock 3/8

$3.99

$

In Stock, Qty 20+

0

15

White Outdoor 736-0227

Washer, Flat, .39 x 1.5 x .134

$6.49

$

In Stock, Qty 9

0

16

White Outdoor 736-0274

Washer, Special Flat

$8.99

$

In Stock, Qty 14

0

17

White Outdoor 737-0280

Fitting, Grease

$7.99

$

In Stock, Qty 8

0

18

White Outdoor 737-3004

Fitting, Grease, 90° Tap 1/4-28

$11.99

$

In Stock, Qty 6

0

19

White Outdoor 737-3072

Fitting, Grease, 65° w/Extension

$

$

Not available

20

White Outdoor 737-3090

Adapter, 1/8 NPTF x 1/8 NPTF
(Superseded to 937-3090)

$

$

Not available

21

White Outdoor 741-3069

Bearing, Flange

$17.99

$

In Stock, only 1 left!

0

22

White Outdoor 741-3070

Bearing, Roller
(Superseded to 941-3070)

$54.99

$

In Stock, only 3 left!

0

23

White Outdoor 750-0456

Spacer, .79 ID x .347 Lg

$4.49

$

In Stock, Qty 20+

0

24

White Outdoor 750-3197

Spacer, Wheel
(Superseded to 750-3197A)

$21.99

$

In Stock, Qty 13

0
