Z 2003K (80464) - Snapper Zero-Turn Mower, 20hp Double Idler Assembly (Part 2) Parts Diagram

Zero-Turn Mower, 20hp

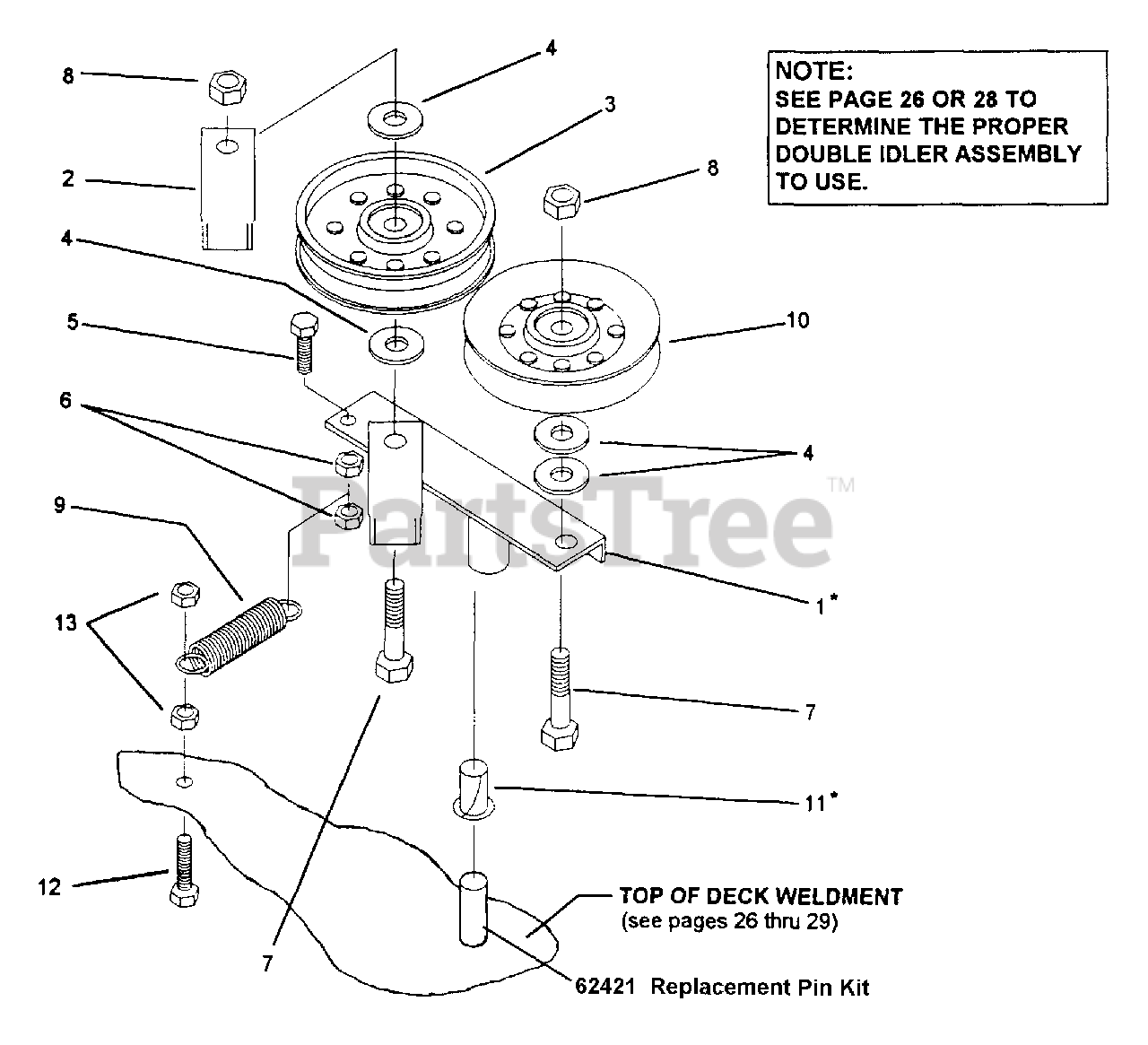

Double Idler Assembly (Part 2) Parts Diagram

  • Title

Snapper 7062239

DOUBLE IDLER ASS'Y

$

$

Currently unavailable

1

Snapper 7062238

DOUBLE IDLER WELD.

$

$

Not available

2

Snapper 7079032

PLATE, BELT STOP

$

$

Not available

3

Snapper 7079167

PULLEY, FLAT IDLER 1/2" BORE, 4" O.D.
(Superseded to 7079167YP)

$59.99

$

Usually ships in 2-12 days

0

4

Snapper 7090250

WASHER, FLAT 1/2" STD.
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

5

Snapper 7090824

BOLT, 3/8-24 x 1-1/4" GR. 5
(Superseded to 7090824YP)

Note: Was 79422

$4.99

$

In Stock, Qty 9

0

6

Snapper 7090289

NUT, 3/8-24, M-F LOCK
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

7

Snapper 7090543

BOLT, 1/2-13 x 2", GR. 5
(Superseded to 703817)

Note: Was 79276

$5.99

$

Usually ships in 2-12 days

0

8

Snapper 7079262

NUT, 1/2-13, STOVER
(Superseded to 7079262YP)

$2.99

$

Usually ships in 2-12 days

0

9

Snapper 7079217

SPRING, EXTENSION, 3/4" x 4" O.A.L.
(Superseded to 7079217YP)

$9.49

$

In Stock, Qty 5

0

10

Snapper 7079166

PULLEY, V-IDLER, 1/2" BORE, 4-3/8" O.D.
(Superseded to 7079166YP)

$59.99

$

Usually ships in 2-12 days

0

11

Snapper 7079175

BUSHING, NYLON, 5/8" BORE

$

$

Not available

12

Snapper 7090824

BOLT, 3/8-24 x 1-1/4", GR. 5
(Superseded to 7090824YP)

Note: Was 79422

$4.99

$

In Stock, Qty 9

0

13

Snapper 7090289

NUT, 3/8-24, M-F LOCK
(Superseded to 703458)

Note: Was 79327

$4.99

$

In Stock, Qty 14

0

Snapper 7062397

SCREW, SOCKET HEAD SET, 5/16-18 x 2-1 /4"
(Superseded to 7062397YP)

Note: NEW STYLE IDLER STUD BOLT & HARDWARE:

$3.99

$

Usually ships in 2-12 days

0

Snapper 7062398

IDLER MOUNTING PIN
(Superseded to 7062398YP)

Note: NEW STYLE IDLER STUD BOLT & HARDWARE:

$71.99

$

Usually ships in 2-12 days

0

Snapper 7062399

BUSHING, IDLER MOUNTING

Note: NEW STYLE IDLER STUD BOLT & HARDWARE:

$

$

Not available

Snapper 7062400

WASHER, .322 x 1-3/8" FLAT

Note: NEW STYLE IDLER STUD BOLT & HARDWARE:

$

$

Not available

Snapper 7062401

NUT, 5/16-18 STOVER LOCK
(Superseded to 7062401YP)

Note: NEW STYLE IDLER STUD BOLT & HARDWARE:

$2.99

$

Usually ships in 2-12 days

0

Snapper 7015339

PIVOT BUSHINGS
(Superseded to 7015339YP)

$16.99

$

In Stock, only 2 left!

0

Snapper 7062421

REPLACEMENT PIN KIT

$

$

Not available
