Z 2002K (7080186) - Snapper Zero-Turn Mower, 20hp Frame Sides And Related Parts Parts Diagram

Zero-Turn Mower, 20hp

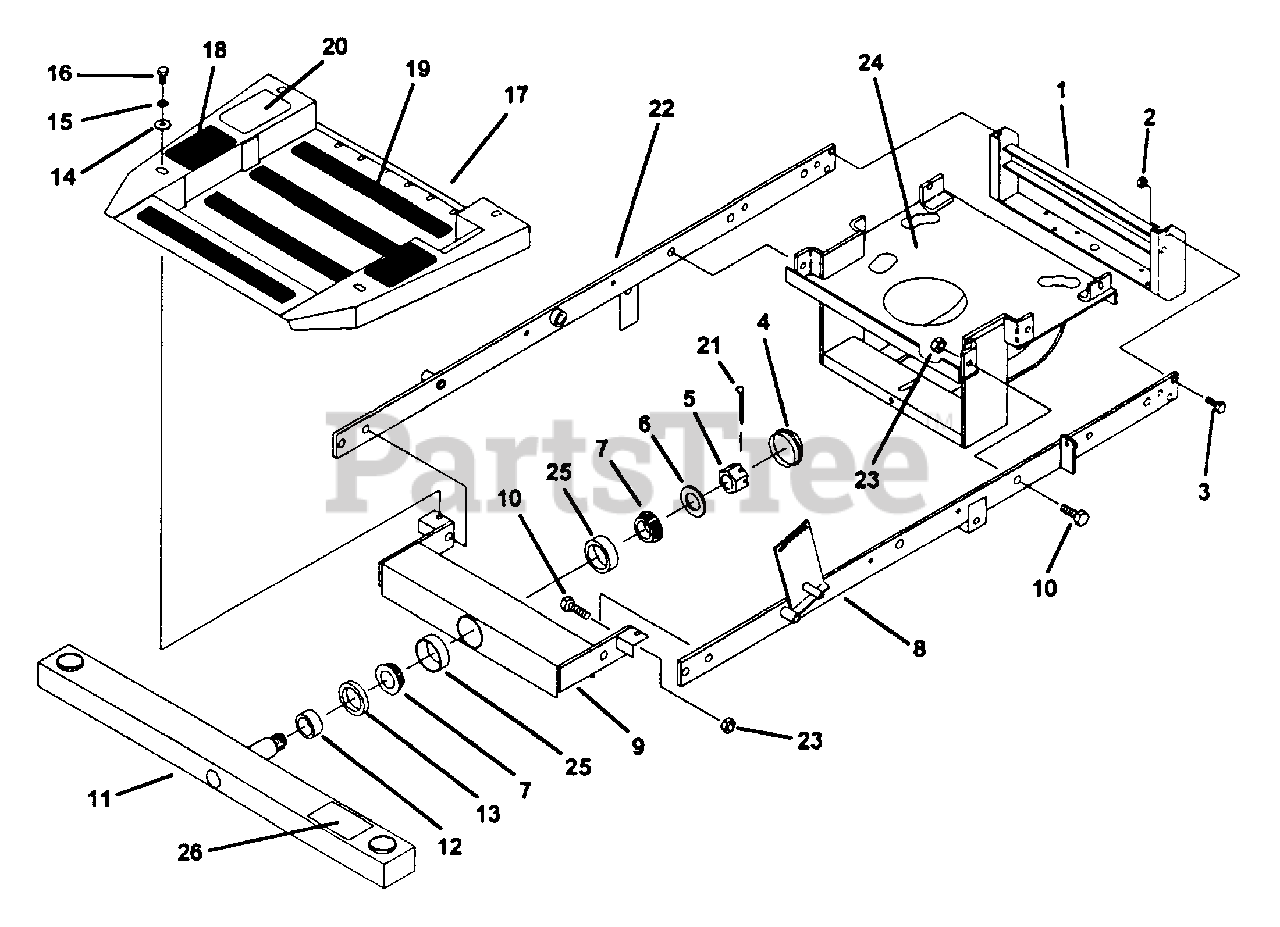

Frame Sides And Related Parts Parts Diagram

  • Title

1

Snapper 7079668

REAR BUMPER WELDMENT

$

$

Currently unavailable

2

Snapper 7091299

NUT, 3/8-16 NYLOC
(Superseded to 703117)

Note: Was 79273

$3.49

$

In Stock, Qty 20+

0

3

Snapper 7091328

BOLT, 3/8-16 X 1-1/4" GR.5
(Superseded to 703871)

Note: Was 90587

$4.99

$

Usually ships in 2-12 days

0

4

Snapper 7079859

GREASE CAP
(Superseded to 7079859YP)

$10.99

$

Usually ships in 2-12 days

0

5

Snapper 7079836

NUT, HEX. SLOTTED 1 "-14
(Superseded to 7079836YP)

$6.99

$

Usually ships in 2-12 days

0

6

Snapper 7079020

WASHER, 1" 10 GA.

$

$

Not available

7

Snapper 7079812

BEARING CONE
(Superseded to 7079812YP)

$41.99

$

Usually ships in 2-12 days

0

8

Snapper 7079646

FRAME SIDE, L.H.

$

$

Currently unavailable

9

Snapper 7079707

FRONT CHANNEL WELDMENT

$

$

Not available

10

Snapper 7062038

BOLT, 1/2-13 X 1-1/4" GR.5

$

$

Currently unavailable

11

Snapper 7079677

FRONT BUMPER/AXLE WELDMENT

$

$

Currently unavailable

12

Snapper 7079711

BEARING SPACER
(Superseded to 7079711YP)

$19.99

$

Usually ships in 2-12 days

0

13

Snapper 7079822

SEAL, OIL 1.688 SHAFT
(Superseded to 7079822YP)

$40.99

$

Usually ships in 2-12 days

0

14

Snapper 7090188

WASHER, FLAT STD. 5/16"
(Superseded to 703350)

$4.49

$

In Stock, Qty 6

0

15

Snapper 7079267

LOCKWASHER, 5/16" HEAVY SPRING
(Superseded to 7079267YP)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper 7076934

BOLT, 5/16-18 X 3/4" GR. 5
(Superseded to 7076934YP)

$3.49

$

Usually ships in 2-12 days

0

17

Snapper 7079756

FOOT DECK ASSEMBLY

Note: (w/decal and tread pads)

$

$

Currently unavailable

18

Snapper 7079863

TREAD PAD
(Superseded to 7079863YP)

$10.99

$

Usually ships in 2-12 days

0

19

Snapper 7079862

TREAD PAD

$

$

Not available

20

Snapper 7079915

DECAL, OPERATION INSTRUCTIONS

$

$

Not available

21

Snapper 7079839

COTTER PIN, 3/16 X 2"

$

$

Not available

22

Snapper 7079647

FRAME SIDE WELDMENT, R.H.

$

$

Currently unavailable

23

Snapper 7079262

NUT, 1/2-13, STOVER
(Superseded to 7079262YP)

$2.99

$

Usually ships in 2-12 days

0

24

Snapper 7079719

MOTOR MOUNT WELDMENT

$

$

Currently unavailable

25

Snapper 7079909

BEARING CUP
(Superseded to 7079909YP)

$13.99

$

Usually ships in 2-12 days

0

26

Snapper 7079916

DECAL, TOW WARNING

$

$

Not available
