Z 1805KV (80819) - Snapper Zero-Turn Mower, 18hp Wire Harness Parts Diagram

Zero-Turn Mower, 18hp

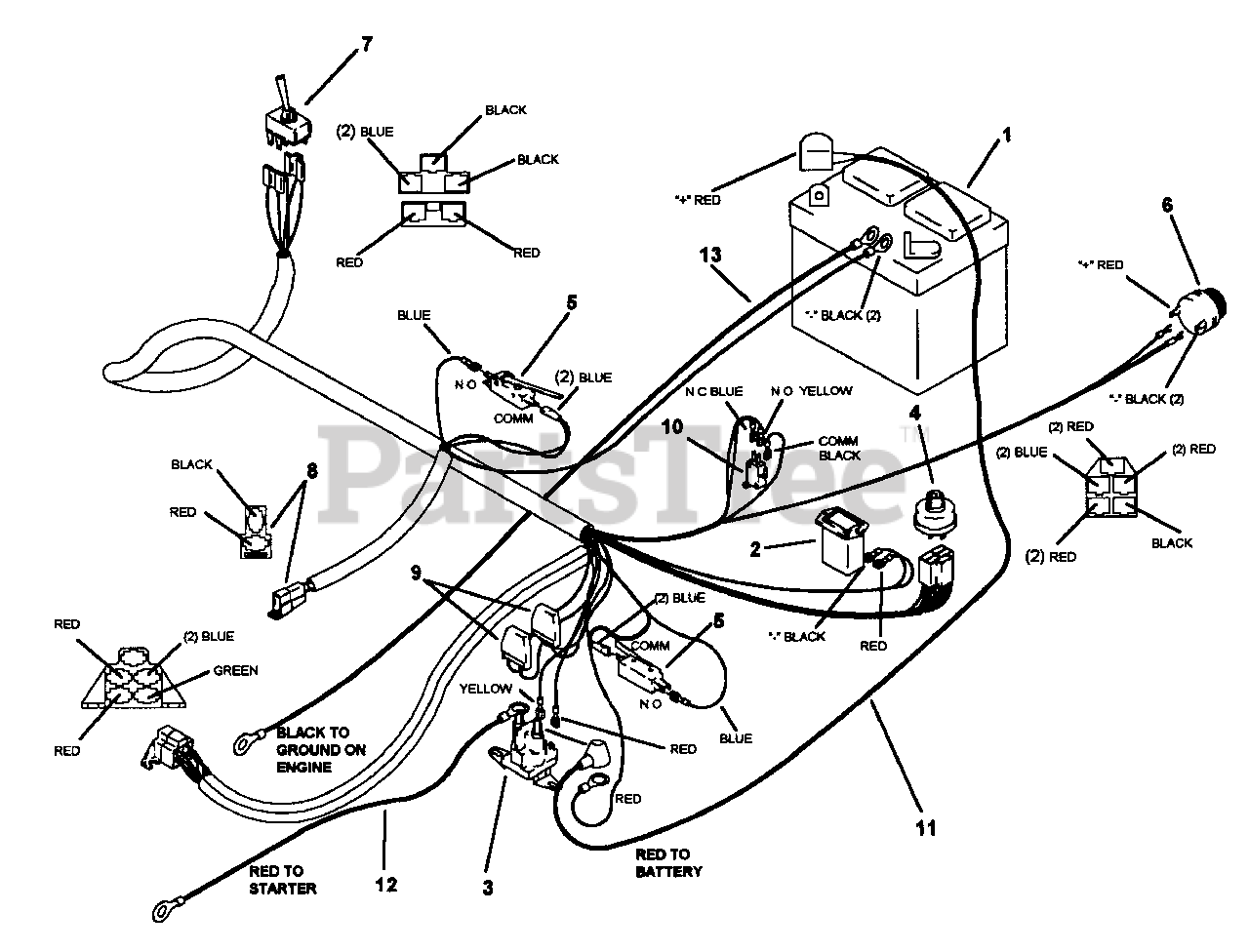

Wire Harness Parts Diagram

  • Title

1

Snapper 7079482

BATTERY 12 VOLT

$

$

Not available

2

Snapper 7060788

HOUR METER, 18, & 22 HP

Note: Was 79203

$

$

Not available

3

Snapper 7079193

SOLENOID, STARTER, 12V. INT. GRD.
(Superseded to 7079193YP)

Note: Was 79793

$42.99

$

Usually ships in 2-12 days

0

4

Snapper 7026343

START SWITCH
(Superseded to 7026343SM)

Note: Was 79201

$38.99

$

In Stock, Qty 17

0

5

Snapper 7079194

SWITCH, ENCL, SPDT 15A HINGED LEVER

$

$

Not available

6

Snapper 7079208

BUZZER, PULSING
(Superseded to 7079208YP)

$109.99

$

Usually ships in 2-12 days

0

7

Snapper 7079342

CLUTCH SWITCH
(Superseded to 7079342YP)

$38.99

$

In Stock, only 1 left!

0

8

Snapper 7079204

INSULATOR COVER (female end only)
(Superseded to 7079204YP)

$2.99

$

Usually ships in 2-12 days

0

9

Snapper 7062468

NLA - FUSEHOLDER (INLINE) SPADE STYLE

$

$

Currently unavailable

9

Snapper 7062469

FUSE, 30 AMP SPADE STYLE

$

$

Not available

10

Snapper 7079530

SWITCH, SPDT MINIATURE
(Superseded to 7079530YP)

$41.99

$

Usually ships in 2-12 days

0

11

Snapper 7079705

NLA - CABLE, BATTERY, 31.75" W/ BOOTS

$

$

Currently unavailable

12

Snapper 7079706

CABLE, STARTER, 31.75" WO/BOOTS
(Superseded to 7079706YP)

$17.99

$

Usually ships in 2-12 days

0

13

Snapper 7062547

NLA - WIRE HARNESS, MAIN: NO STRIP 18 & 22 HP

$

$

Currently unavailable
