Z 1805KV (80819) - Snapper Zero-Turn Mower, 18hp Motor Mount Assembly (Part 1) Parts Diagram

Zero-Turn Mower, 18hp

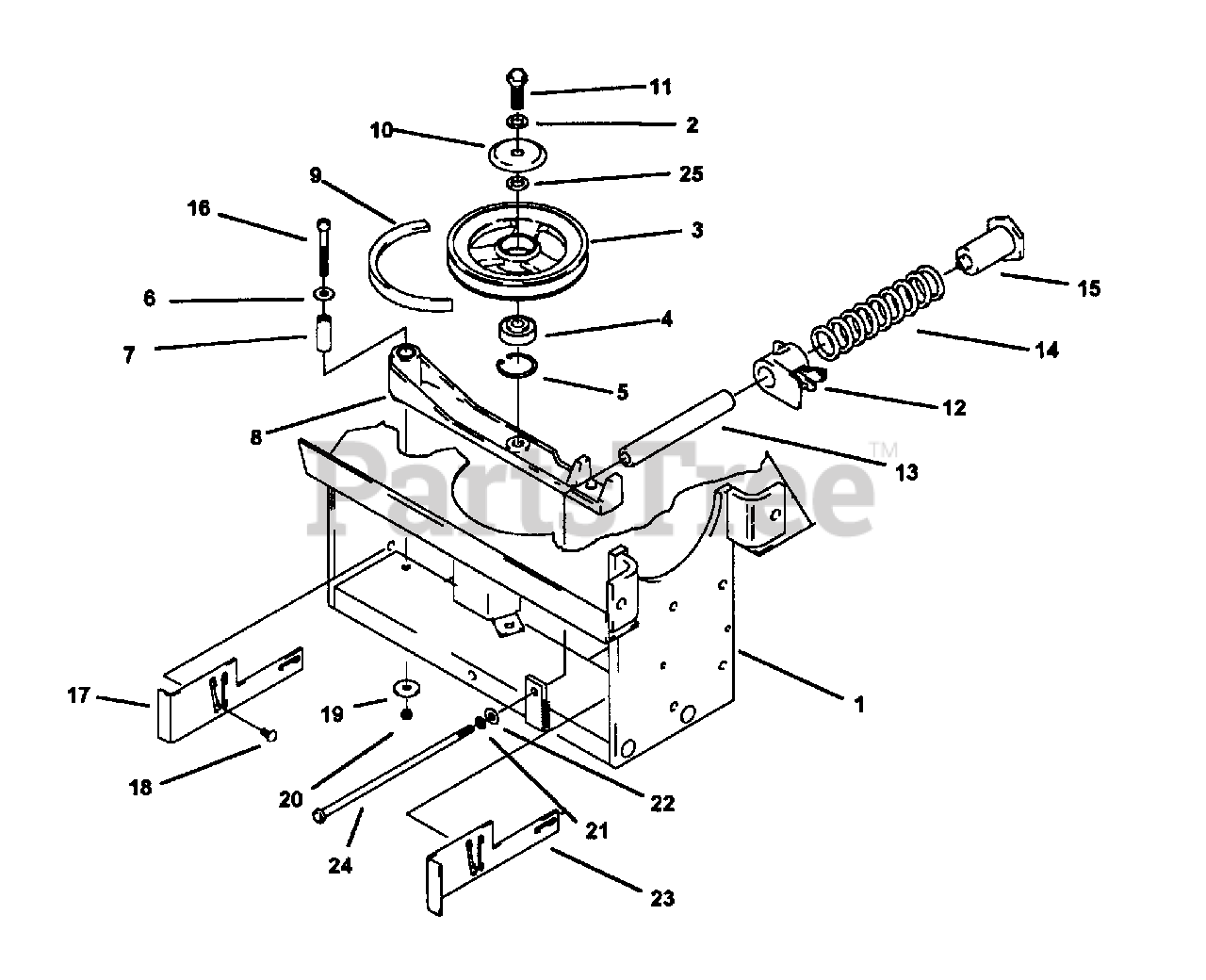

Motor Mount Assembly (Part 1) Parts Diagram

  • Title
1

Snapper 7062506

NLA - MOTOR MOUNT WELDMENT

$

$

Currently unavailable

2

Snapper 7090254

LOCKWASHER, 1/2" STD. SPLIT SPRING
(Superseded to 5025331SM)

$3.49

$

In Stock, Qty 20+

0

3

Snapper 7062454

NLA - IDLER PULLEY ASSEMBLY

$

$

Not available

4

Snapper 7062466

BEARING,WIDE INTER-RACE

$

$

Not available

5

Snapper 7062036

SNAP RING, INTERNAL 40mm BORE
(Superseded to 7062036YP)

$4.99

$

Usually ships in 2-12 days

0

6

Snapper 7090188

WASHER, FLAT, STD. 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

7

Snapper 7062538

MOUNTING PIN
(Superseded to 7062538YP)

$22.99

$

Usually ships in 2-12 days

0

8

Snapper 7062539

IDLER ARM
(Superseded to 7062539YP)

$62.99

$

Usually ships in 2-12 days

0

9

Snapper 7062465

BELT, A-80 KEVLAR, MAIN DRIVE BELT

$49.99

$

Usually ships in 2-12 days

0

10

Snapper 7062286

WASHER, BEARING CAP
(Superseded to 7062286YP)

$11.99

$

Usually ships in 2-12 days

0

11

Snapper 7062549

NLA - CAPSCREW 1/2"-13 X 1 3/8 SPECIAL HEAD

$

$

Currently unavailable

12

Snapper 7062533

TAIL STOP

$

$

Not available

13

Snapper 7062540

CLAMP SHAFT
(Superseded to 7062540YP)

$10.99

$

Usually ships in 2-12 days

0

14

Snapper 7062534

SPRING, COMPRESSION 1.359 O.D

$

$

Currently unavailable

15

Snapper 7062541

TAKE UP END

$

$

Currently unavailable

16

Snapper 7062397

CAPSCREW, SOCKET HEAD 5/16"-18 X 2 1/4, GR 8
(Superseded to 7062397YP)

$3.99

$

Usually ships in 2-12 days

0

17

Snapper 7079726

FREEWHEEL BAR R.H.
(Superseded to 7079726YP)

$8.99

$

Usually ships in 2-12 days

0

18

Snapper 7079840

DRIVE STUD, 1/4" X 1/2" LONG
(Superseded to 7079840YP)

$2.99

$

Usually ships in 2-12 days

0

19

Snapper 7062400

NLA - WASHER, SPACER REINFORCEMENT

$

$

Not available

20

Snapper 7062401

LOCKNUT, 5/16-18 STOVER
(Superseded to 7062401YP)

$2.99

$

Usually ships in 2-12 days

0

21

Snapper 7079268

LOCK WASHER, 3/8" HEAVY SPRING
(Superseded to 7079268YP)

$3.49

$

In Stock, Qty 7

0

22

Snapper 7090517

WASHER, FLAT STD 3/8
(Superseded to 7090517SM)

Note: Was 90600

$4.49

$

In Stock, Qty 8

0

23

Snapper 7062464

FREEWHEEL BAR, L.H

$

$

Not available

24

Snapper 7062532

CAPSCREW, 3/8"-16 X 9 3/4 LONG
(Superseded to 7062532YP)

$20.99

$

Usually ships in 2-12 days

0

25

Snapper 7079306

WASHER, 1/2 TYPE B NARROW

$

$

Not available
