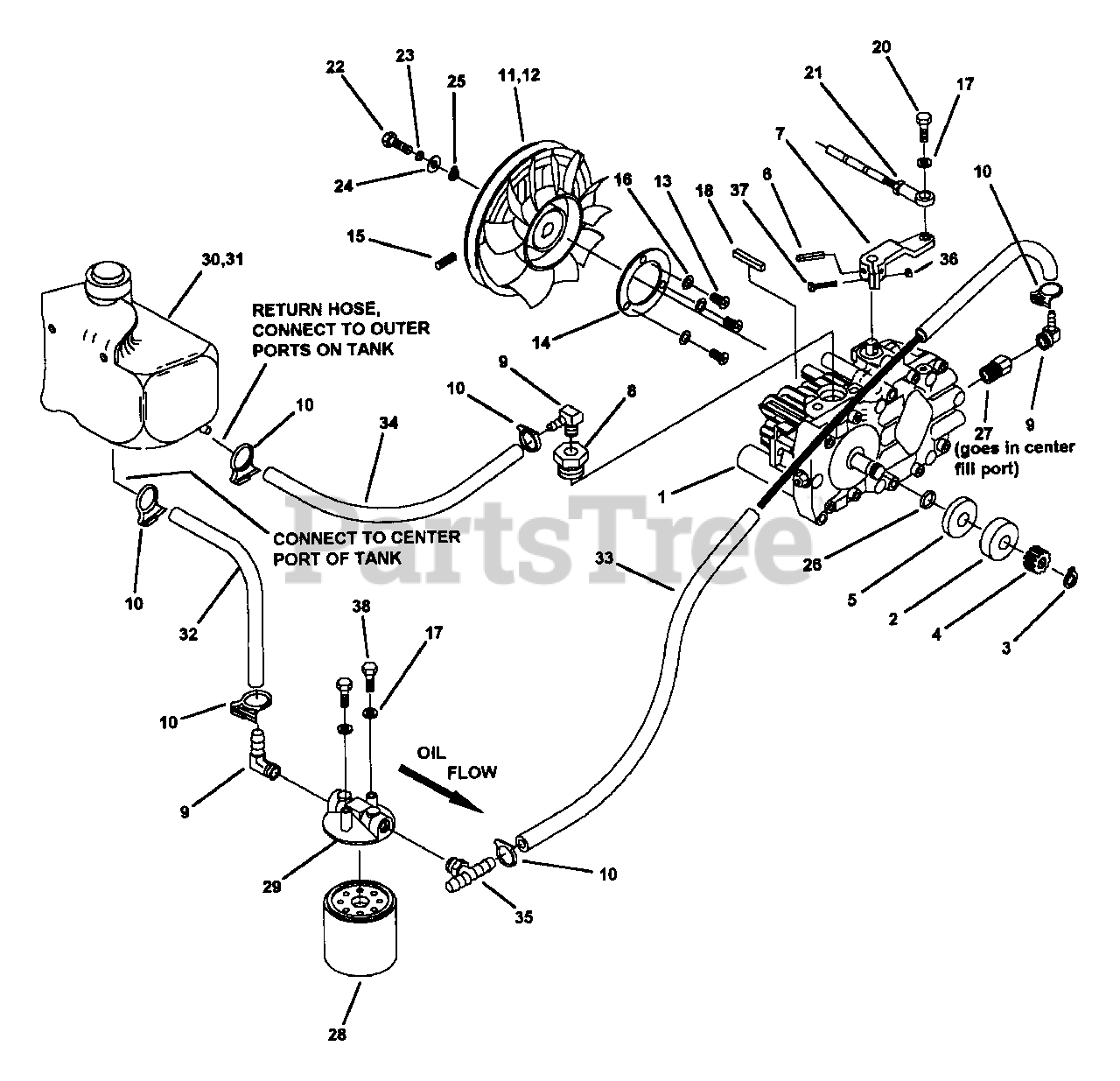

Z 1805KV (80819) - Snapper Zero-Turn Mower, 18hp Hydrostat Assembly Parts Diagram

Zero-Turn Mower, 18hp

Hydrostat Assembly Parts Diagram

  • Title

1

Snapper 7062530

HYDROSTAT TRANSMISSION, BDU-10L-218, LH

$

$

Not available

1

Snapper 7062529

HYDROSTAT TRANSMISSION, BDU-10L-119, RH (not shown)
(Superseded to 7062529YP)

$1538.99

$

Usually ships in 2-12 days

0

2

Snapper 7079638

BEARING, BALL, 15MM ID
(Superseded to 7079638YP)

$45.99

$

Usually ships in 2-12 days

0

3

Snapper 7079640

SNAP RING, EXT., .5 DIA
(Superseded to 7079640YP)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper 7079639

GEAR, 11 TOOTH
(Superseded to 7079639YP)

$74.99

$

In Stock, only 1 left!

0

5

Snapper 7079641

SPACER, BEARING
(Superseded to 7079641YP)

$7.99

$

Usually ships in 2-12 days

0

6

Snapper 7079837

ROLL PIN, 5MM X 26MM
(Superseded to 7079837YP)

$3.49

$

Usually ships in 2-12 days

0

7

Snapper 7079729

SHIFT ARM
(Superseded to 7079729YP)

$86.99

$

Usually ships in 2-12 days

0

8

Snapper 7079802

ADAPTER, 7/8-14M TO 1/4-18F

$

$

Not available

9

Snapper 7079794

HOSE BARB, 90D ELBOW, 1/4NPTM X 3/8"
(Superseded to 7079794YP)

Note: Quantity of 5 may be used

$15.99

$

Usually ships in 2-12 days

0

10

Snapper 7079861

HOSE CLAMP, 19/32-21/32, NYLON
(Superseded to 7079861YP)

Note: Quantity of 10 may be used

$3.99

$

Usually ships in 2-12 days

0

11

Snapper 7079804

NLA - PULLEY/FAN ASSEMBLY (comes with items 12, 24 & 25)

$

$

Not available

12

Snapper 7079796

FAN, 7" PLASTIC; 10 BLADE CCW
(Superseded to 7079796YP)

$19.99

$

Usually ships in 2-12 days

0

13

Snapper 7090071

BOLT, 1/4-20 X 1/2", GR.5
(Superseded to 703818)

Note: Was 62163

$3.49

$

In Stock, only 1 left!

0

14

Snapper 7079714

WASHER, 3" O.D.

$

$

Not available

15

Snapper 7079302

SETSCREW, SKHD 1/4-20 X 3/4" W/NYLOC
(Superseded to 7079302YP)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper 7090052

LOCKWASHER, 1/4" SPLIT SPRING
(Superseded to 7090052SM)

$3.49

$

In Stock, only 4 left!

0

17

Snapper 7090052

LOCKWASHER, 1/4" SPLIT SPRING
(Superseded to 7090052SM)

$3.49

$

In Stock, only 4 left!

0

18

Snapper 7079791

NLA - KEY, 5MM SQ. X 25MM

$

$

Not available

19

Snapper 7079513

BALL JOINT, FEMALE 1/4-28
(Superseded to 7079513YP)

$23.99

$

Usually ships in 2-12 days

0

20

Snapper 7091495

BOLT, 1/4-20 X 3/4" GR. 5
(Superseded to 703925)

Note: Was 90073

$4.49

$

In Stock, Qty 7

0

21

Snapper 7090095

NUT, 1/4-28 (COMES WITH PUSH-PULL CABLE)
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0

22

Snapper 7091113

BOLT, 6MM X 18MM

Note: Was 79842

$

$

Not available

23

Snapper 7079843

LOCKWASHER, 6MM
(Superseded to 7079843YP)

$3.49

$

Usually ships in 2-12 days

0

24

Snapper 7062272

WASHER

$

$

Not available

25

Snapper 7062273

NLA - SNAP-RING INT. 15MM

$

$

Not available

26

Snapper 7062467

O-RING SEAL
(Superseded to 7062467YP)

$4.99

$

Usually ships in 2-12 days

0

27

Snapper 7062280

NLA - ADAPTER, 7/16" SAE TO 1/4 NPT

$

$

Currently unavailable

28

Snapper 7062294

OIL FILTER

$26.99

$

In Stock, Qty 20+

0

29

Snapper 7062477

BASE, FILTER

$

$

Not available

30

Snapper 7062295

TANK, 1.5 QT, CHARGE PUMP STYLE (comes with cap, item 31)

$

$

Not available

31

Snapper 7012155

CAP, Oil Tank
(Superseded to 7012155YP)

Note: Was 62247

$9.49

$

In Stock, only 4 left!

0

32

Snapper 7062287

NLA - HOSE, 6-3/4"

$

$

Not available

33

Snapper 7062284

HOSE, 46", L.H.
(Superseded to 7062284YP)

$34.99

$

Usually ships in 2-12 days

0

33

Snapper 7062282

NLA - HOSE, 24", R.H.

$

$

Not available

34

Snapper 7062283

HOSE, 18"
(Superseded to 7062283YP)

$16.99

$

Usually ships in 2-12 days

0

35

Snapper 7062292

NLA - TEE FITTING, 3/8 x 3/8 x 3/8 NPT

$

$

Currently unavailable

36

Snapper 7076978

NUT, 1/4-20, NYLOC
(Superseded to 703232)

Note: Was 79260 (Now 76978 + 90372)

$4.49

$

In Stock, Qty 20+

0

37

Snapper 7077761

BOLT, 1/4-20 X 1", GR.5
(Superseded to 7077761YP)

Note: Was 79265

$3.99

$

Usually ships in 2-12 days

0

38

Snapper 7090072

BOLT, 1/4-20 X 5/8", GR.5
(Superseded to 001X38MA)

Note: Was 79405

$4.49

$

In Stock, Qty 18

0
