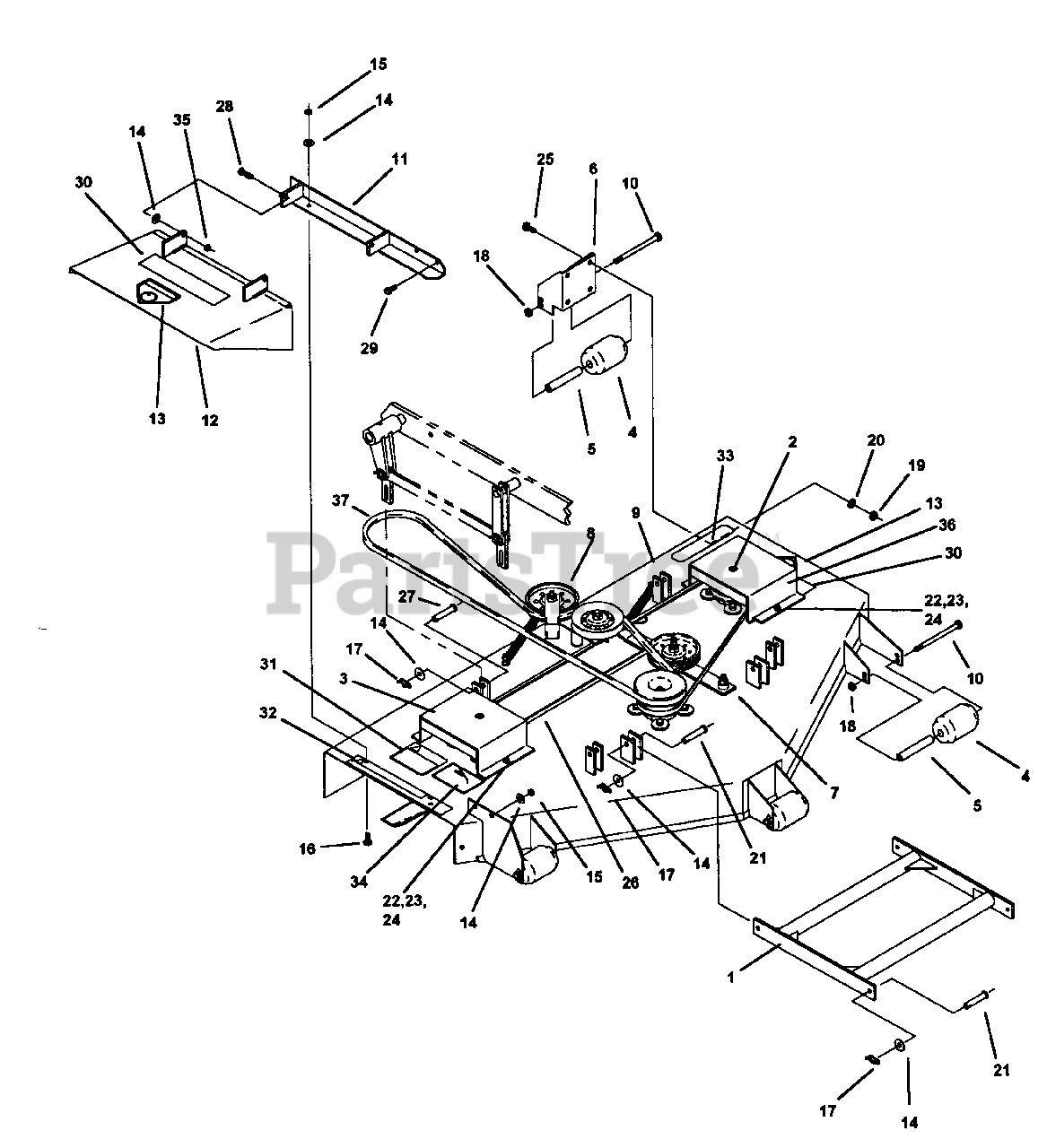

Z 1805KV (7080819) - Snapper Zero-Turn Mower, 18hp 48" Deck Assembly Parts Diagram

Zero-Turn Mower, 18hp

48" Deck Assembly Parts Diagram

  • Title

1

Snapper 7079655

DRAG BAR WELDMENT
(Superseded to 7079655YP)

$94.99

$

Usually ships in 2-12 days

0

2

Snapper 7079885

SPINDLE ASSEMBLY
(Superseded to 7079885YP)

$603.99

$

Usually ships in 2-12 days

0

3

Snapper 7062513

PULLEY COVER, R.H. 48 DECK
(Superseded to 7062513YP)

$34.99

$

Usually ships in 2-12 days

0

4

Snapper 7073142

ROLLER, DECK, BLACK
(Superseded to 7073142YP)

Note: Was 79226

$16.99

$

In Stock, Qty 7

0

5

Snapper 7079023

ROLLER SPACER BUSHING

$

$

Not available

6

Snapper 7079024

NLA - BRACKET, REAR ANTI-SCALPER

$

$

Not available

7

SINGLE IDLER PARTS

$

$

Not available

8

DOUBLE IDLER ASSEMBLY

$

$

Not available

9

Snapper 7062430

NLA - 48" DECK WELDMENT, GEARDRIVE

$

$

Currently unavailable

10

Snapper 7090591

BOLT, 3/8-16 X 4-1/2" GR.5
(Superseded to 7090591YP)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper 7062434

OUTLET STIFFENER WELDMENT, 48" DECK
(Superseded to 7062434YP)

$51.99

$

Usually ships in 2-12 days

0

12

Snapper 7062435

CHUTE WELDMENT (w/decal)
(Superseded to 7062435YP)

$156.99

$

Usually ships in 2-12 days

0

13

Snapper 7079234

NLA - DECAL, BLOODY STUMP"

$

$

Currently unavailable

14

Snapper 7090188

WASHER, FLAT STD. 5/16"
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

15

Snapper 7091298

NUT, 5/16-18 NYLOC
(Superseded to 703902)

Note: Was 90717

$3.99

$

In Stock, Qty 20+

0

16

Snapper 7090316

BOLT, 5/16-18 X 3/4" CARRIAGE
(Superseded to 703225)

Note: Was 79438

$3.99

$

In Stock, Qty 20+

0

17

Snapper 7091593

COTTER PIN, SELF LOCKING, 5/16 - 3/8
(Superseded to 703355)

Note: Was 79291

$3.99

$

In Stock, Qty 14

0

18

Snapper 7090499

NUT, 3/8-16 TOPLOCK .218 THK.
(Superseded to 7090499YP)

$3.49

$

Usually ships in 2-12 days

0

19

Snapper 7091299

NUT, 3/8-16 NYLOC
(Superseded to 703117)

Note: Was 79273

$3.49

$

In Stock, Qty 20+

0

20

Snapper 7090517

WASHER, FLAT STD. 3/8"
(Superseded to 7090517SM)

Note: Was 90600

$4.49

$

In Stock, Qty 8

0

21

Snapper 7079831

CLEVIS PIN, 5/16 X 1-1/4" LONG
(Superseded to 7079831YP)

Note: Was 79284

$3.99

$

Usually ships in 2-12 days

0

22

Snapper 7091495

BOLT, 1/4-20 X 3/4" GR.5
(Superseded to 703925)

Note: Was 90073

$4.49

$

In Stock, Qty 7

0

23

Snapper 7090052

LOCKWASHER, 1/4" SPLIT SPRING
(Superseded to 7090052SM)

$3.49

$

In Stock, Qty 5

0

24

Snapper 7091294

WASHER, FLAT STD. 1/4"
(Superseded to 703332)

Note: Was 79410

$4.49

$

In Stock, Qty 20+

0

25

Snapper 7090603

BOLT, 3/8-16 X 7/8" GR.5

$2.99

$

In Stock, only 1 left!

0

26

Snapper 7079777

DECK CROSS BELT, AP-100
(Superseded to 7079777YP)

$57.99

$

Usually ships in 2-12 days

0

27

Snapper 7079831

CLEVIS PIN, 5/16 X 1-1/2" LONG (4)
(Superseded to 7079831YP)

$3.99

$

Usually ships in 2-12 days

0

28

Snapper 7027168

BOLT, 5/16-18 X 1" GR.5.
(Superseded to 703585)

Note: Was 90636

$4.99

$

In Stock, only 1 left!

0

29

Snapper 7076934

BOLT, 5/16-18 X 3/4" GR.5
(Superseded to 7076934YP)

Note: Was 79315

$3.49

$

Usually ships in 2-12 days

0

30

Snapper 7062517

DECAL, "MULTI-PERIL"

$

$

Not available

31

Snapper 7079240

DECAL, "WARNING- ROTATING BLADES"
(Superseded to 7079240YP)

$12.99

$

Usually ships in 2-12 days

0

32

Snapper 7079242

NLA - DECAL, SAFETY "MISSING CHUTE"

$

$

Currently unavailable

33

Snapper 7062526

NLA - DECAL, "MODEL #Z4804M"

$

$

Currently unavailable

34

Snapper 7062199

DECAL, "GREASE SPINDLES'
(Superseded to 7062199YP)

$7.99

$

Usually ships in 2-12 days

0

35

Snapper 7062401

LOCKNUT, 5/16-18 STOVER
(Superseded to 7062401YP)

$2.99

$

Usually ships in 2-12 days

0

36

Snapper 7062512

NLA - PULLEY COVER L.H., 48" DECK

$

$

Currently unavailable

37

Snapper 7079781

ENGINE TO DECK BELT, BP-81
(Superseded to 7079781YP)

$49.99

$

In Stock, only 1 left!

0
