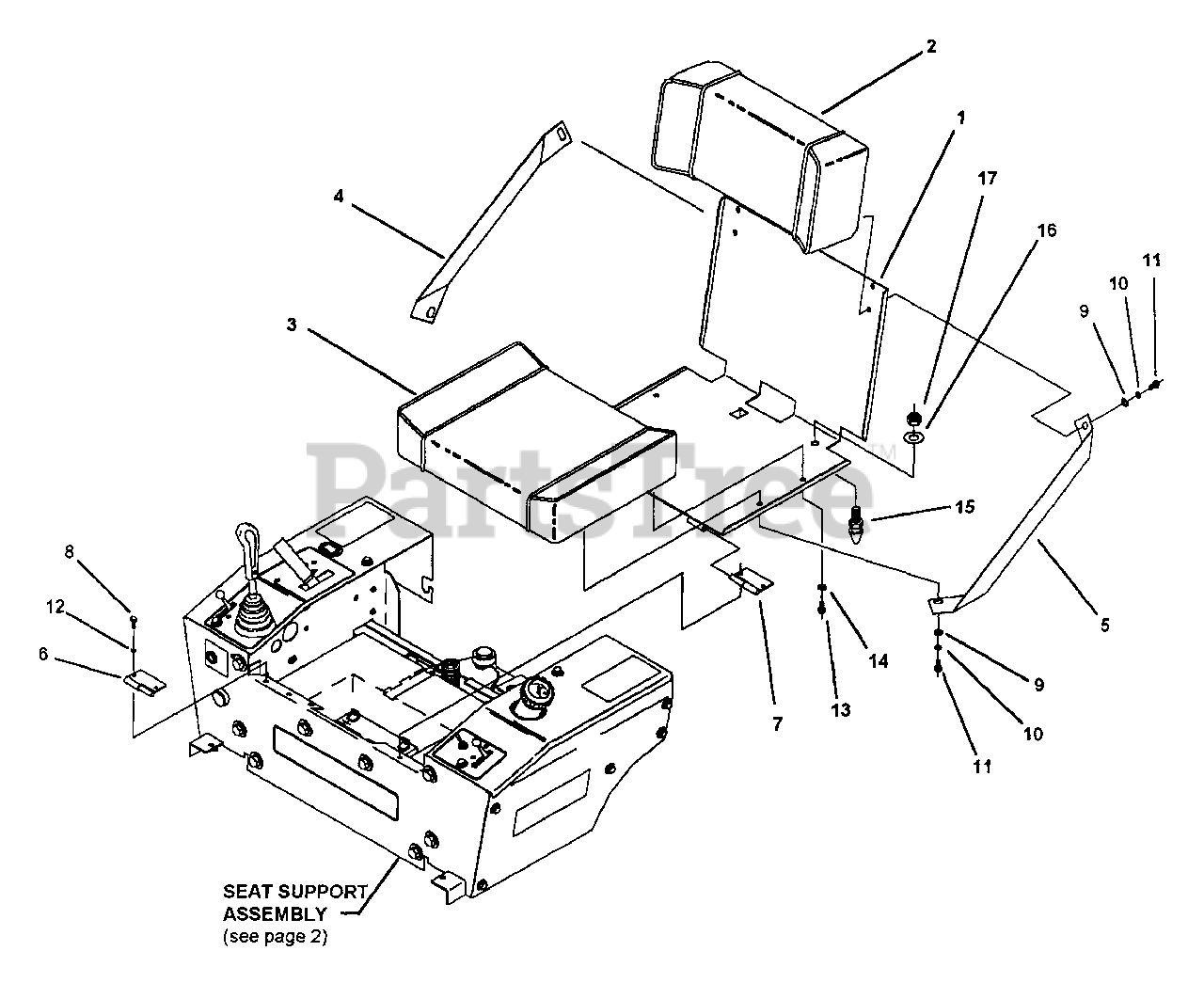

Z 1804K (80708) - Snapper Zero-Turn Mower, 18hp Seat Assembly Parts Diagram

Zero-Turn Mower, 18hp

Seat Assembly Parts Diagram

  • Title

1

Snapper 7079665

SEAT BRACKET WLDT.
(Superseded to 7079665YP)

$296.99

$

Usually ships in 2-12 days

0

1

-

MOWER DECK

$

$

Not available

2

Snapper 7079713

CUSHION BACK ASSEMBLY

$

$

Not available

3

Snapper 7079662

CUSHION SEAT ASSEMBLY

$

$

Not available

4

Snapper 7079931

GUSSET, SEAT RIGHT
(Superseded to 7079931YP)

$40.99

$

Usually ships in 2-12 days

0

5

Snapper 7079932

GUSSET, SEAT LEFT
(Superseded to 7079932YP)

$29.99

$

Usually ships in 2-12 days

0

6

Snapper 7079928

HINGE
(Superseded to 7079928YP)

$13.99

$

Usually ships in 2-12 days

0

7

Snapper 7079927

HINGE

$

$

Currently unavailable

8

Snapper 7091495

BOLT, 1/4-20 X 3/4" GR. 5
(Superseded to 703925)

Note: Was 90073

$4.49

$

In Stock, Qty 7

0

9

Snapper 7090188

WASHER, 5/16" SAE
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

10

Snapper 7079267

LOCKWASHER, 5/16" SPLIT SPRING
(Superseded to 7079267YP)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper 7027168

BOLT, 5/16-18 X 1" GR. 5
(Superseded to 703585)

Note: Was 90636

$4.99

$

Usually ships in 2-12 days

0

12

Snapper 7090052

LOCKWASHER, 1/4" SPLIT SPRING
(Superseded to 7090052SM)

$3.49

$

In Stock, only 4 left!

0

13

Snapper 7062066

BOLT, 5/16-18 X 5/8" LONG LOCK

$

$

Currently unavailable

14

Snapper 7062067

WASHER, 5/16 ID X 5/8 OD X .035 THK

$

$

Currently unavailable

15

Snapper 7062456

LATCH PIN

$

$

Currently unavailable

16

Snapper 7090250

WASHER, FLAT STD. 1/2"
(Superseded to 704123)

Note: Was 79264

$4.49

$

In Stock, only 3 left!

0

17

Snapper 7079277

1/2-13 LOCKNUT W/NYLOC

$

$

Not available
