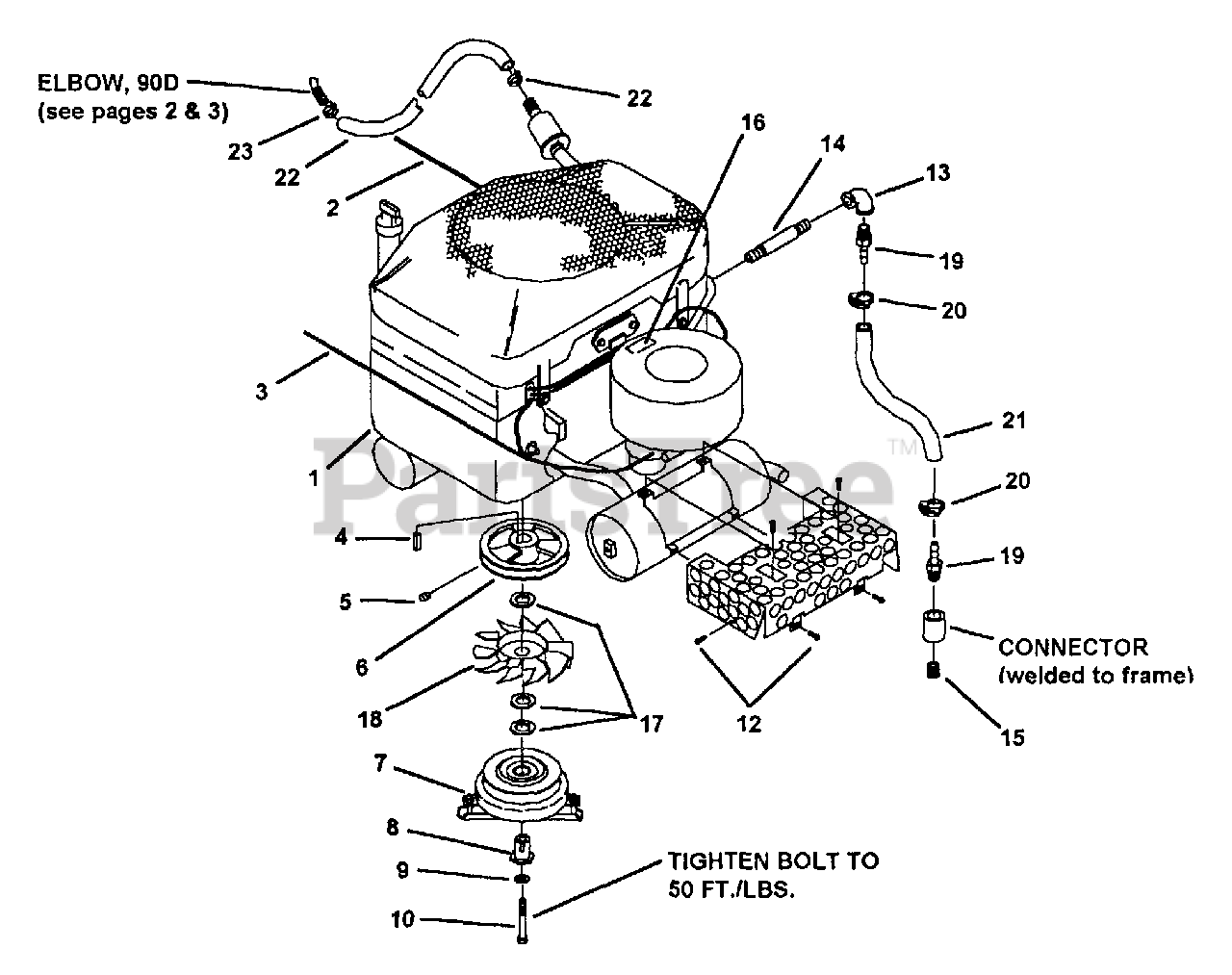

Z 1804K (80708) - Snapper Zero-Turn Mower, 18hp 18 & 20 HP Engine Assembly Parts Diagram

Zero-Turn Mower, 18hp

18 & 20 HP Engine Assembly Parts Diagram

  • Title

1

--

* 18 HP KOHLER, VERTICAL SHAFT ENGINE

$

$

Not available

1

--

* 20 HP KOHLER, VERTICAL SHAFT ENGINE

$

$

Not available

2

Snapper 7079800

CABLE, THROTTLE 18 & 20 HP

$

$

Not available

3

Snapper 7079801

CABLE, CHOKE 18 & 20 HP

$

$

Not available

4

Snapper 7079000

KEY, SQUARE, 1/4" X 1"
(Superseded to 5050407X8SM)

Note: (USED ON 18 HP ENGINE)

$3.99

$

In Stock, only 1 left!

0

4

Snapper 7091978

KEY, WOODRUFF, 1/4" X 3/4"
(Superseded to 7091978YP)

Note: Was 79159 (USED ON 20 HP ENGINE)

$4.49

$

Usually ships in 2-12 days

0

5

Snapper 7079823

SETSCREW, SOCKET HD., 5/16-18 X 3/8"
(Superseded to 7079823YP)

$3.49

$

Usually ships in 2-12 days

0

6

Snapper 7079736

PULLEY, 1" BORE

Note: (USED ON 18 HP ENGINE)

$

$

Not available

6

Snapper 7079745

PULLEY, 1-1/8" BORE
(Superseded to 7079745YP)

Note: (USED ON 20 HP ENGINE)

$106.99

$

Usually ships in 2-12 days

0

7

Snapper 7079446

CLUTCH, ELECTRIC, 1" BORE
(Superseded to 7079446YP)

$542.99

$

Usually ships in 2-12 days

0

8

Snapper 7062460

BUSHING, CLUTCH

$

$

Currently unavailable

9

Snapper 7091301

LOCKWASHER, 7/16" SPLIT SPRING
(Superseded to 704007)

Note: Was 90247

$4.49

$

In Stock, Qty 20+

0

10

Snapper 7062263

CAPSCREW, 7/16-20 X 3-1/4" GR. 5
(Superseded to 7062263YP)

Note: Tighten bolt to 50Ft./Lbs.

$3.99

$

In Stock, only 1 left!

0

?11

Snapper 7062052

MUFFLER GUARD

$

$

Not available

12

Snapper 7079424

SCREW, SHEET METAL, #8 X 1/2"
(Superseded to 7079424YP)

$2.99

$

Usually ships in 2-12 days

0

13

Snapper 7079210

ELBOW, 3/8, 90D, SCH. 40 CAST IRON

$

$

Currently unavailable

14

Snapper 7079209

NIPPLE, 3/8 X 3" SCH. 40 BLACK

$

$

Currently unavailable

15

Snapper 7079367

PLUG, PIPE 3/8"

$

$

Not available

16

Snapper 7079237

DECAL, "PERIODICALLY CLEAN"
(Superseded to 7079237YP)

$5.99

$

Usually ships in 2-12 days

0

17

Snapper 7062242

WASHER, SHIM

$

$

Not available

18

Snapper 7062236

FAN, 7" DIA. 10 BLADE CW

$

$

Not available

19

Snapper 7062296

HOSE BARB, 3/8" HOSE X 3/8" NPT

$

$

Not available

20

Snapper 7079861

HOSE CLAMP, 19-32-21/32, NYLON
(Superseded to 7079861YP)

$3.99

$

Usually ships in 2-12 days

0

21

Snapper 7062287

HOSE, 3/8" ID X 6-3/4" LONG

$

$

Not available

22

Snapper 7062429

FUEL LINE, 19"

$

$

Not available

23

Snapper 7029900

CLAMP, HOSE SPRING TYPE 1/2" O.D.
(Superseded to 791850)

Note: Was 62475

$3.49

$

In Stock, Qty 20+

0
