Z-180 (53AC235M190) - White Outdoor 48" Zero-Turn Mower Seat Assembly Parts Diagram

48" Zero-Turn Mower

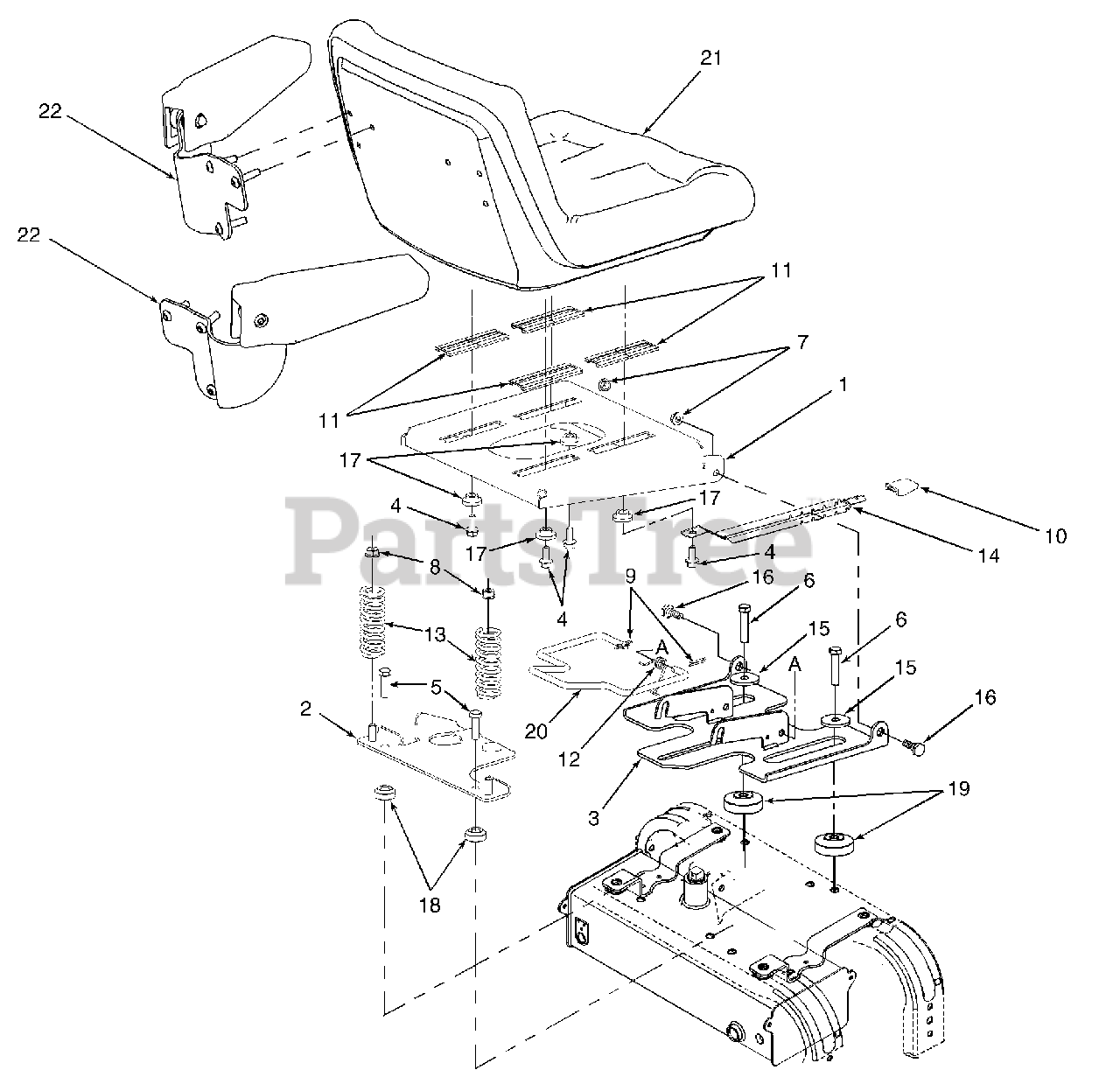

Seat Assembly Parts Diagram

  • Title
1

Variations

White Outdoor 603-0294-0637

BRACKET ASSY: SEATBASE - POWDER BLACK (0637)

$

$

Not available

$

$

2

White Outdoor 603-0318A

Plate, Seat Spring Mtg.

Variations

White Outdoor 603-0318A-0637

No Longer Available PLATE-SEAT SPRG MT - POWDER BLACK (0637)

$

$

Not available

$

$

3

White Outdoor 603-0470

Bracket, Seat Mounting

Variations

White Outdoor 603-0470-0637

BRACKET-SEAT MOUNT - POWDER BLACK (0637)

$

$

Not available

$

$

4

White Outdoor 710-1260

Screw, Hex Wash Hd Tapp 5/16-18 x .75
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

5

White Outdoor 710-0520

Screw, Hex Cap 3/8-16 x 1.5 GR5

$4.49

$

In Stock, Qty 5

0

6

White Outdoor 710-0347

Screw, Hex Cap 3/8-16 x 1-3/4 GR5

$5.49

$

In Stock, Qty 20+

0

7

White Outdoor 712-3004A

Nut, Hex Flange Lock 5/16-18 GR5

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 712-3005

Nut, Hex Flange Lock 3/8-16 GR5

$6.99

$

Usually ships in 3-6 days

0

9

White Outdoor 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 720-0190

Knob, Seat Adjustment
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

11

$

$

Not available

12

White Outdoor 732-0827

Spring, Torsion

$

$

Not available

13

White Outdoor 732-3080

Spring, Compression
(Superseded to 732-3080A)

$13.99

$

In Stock, Qty 11

0

14

White Outdoor 732-3098

Spring, Index

$

$

Not available

15

White Outdoor 736-0227

Washer, Flat, .390 x 1.5 x .134

$6.49

$

In Stock, Qty 9

0

16

White Outdoor 738-0296

Bolt, Shoulder .437 x .268:5/16-18

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 738-0372

Spacer, Shoulder, .38 I.D.
(Superseded to 738-0372B)

$9.49

$

In Stock, Qty 19

0

18

White Outdoor 738-3156

Spacer, Shoulder

$

$

Not available

19

White Outdoor 738-3166

Spacer, Seat Pan Shoulder

$

$

Not available

20

White Outdoor 747-3342

Rod, Seat Pan Lock

$

$

Not available

21

White Outdoor 757-0375

Seat Assembly
(Superseded to 957-0375B)

$

$

Not available

22

White Outdoor 757-3009

Seat Arm (Set of Two)

$

$

Not available
