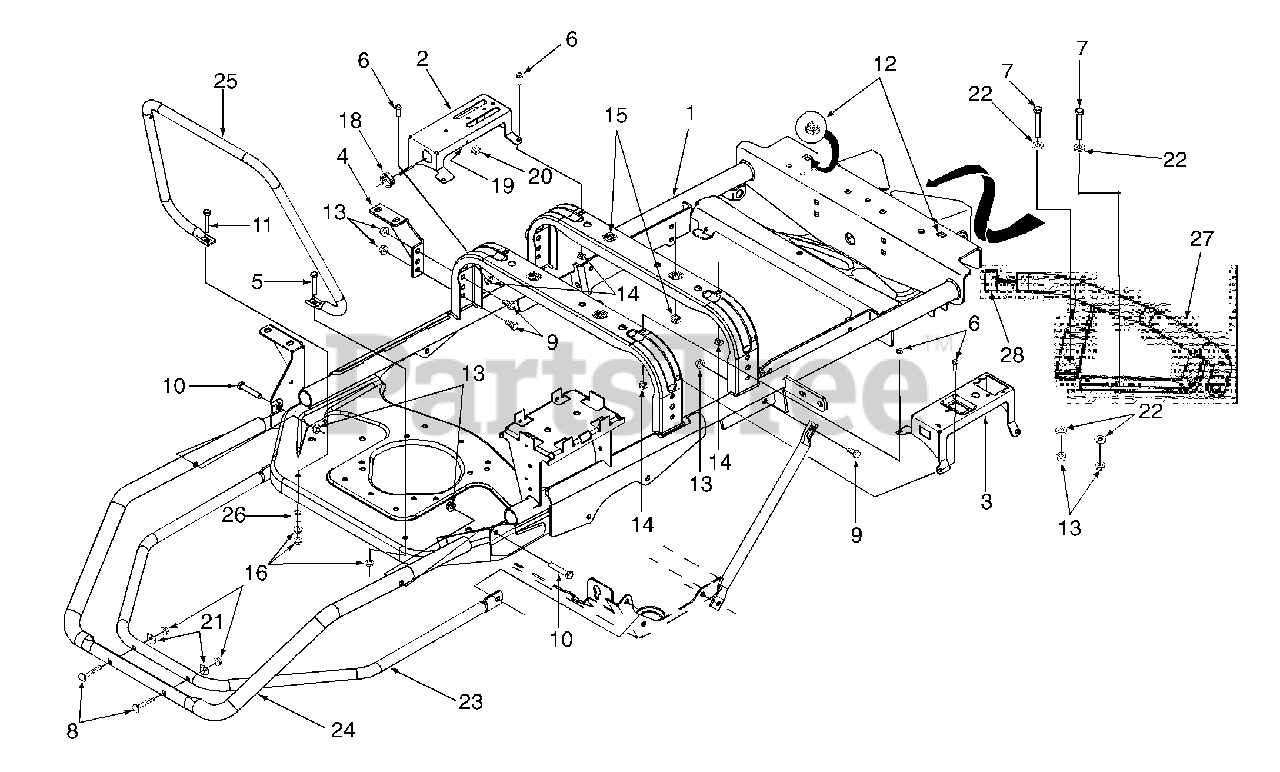

Z-180 (53AC235M190) - White Outdoor 48" Zero-Turn Mower Frame And Attachments Parts Diagram

48" Zero-Turn Mower

Frame And Attachments Parts Diagram

  • Title

1

White Outdoor 603-0258B

Frame

Variations

White Outdoor 603-0258B-0498

No Longer Available FRAME ASSEMBLY - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 603-0258B-0648

No Longer Available FRAME ASSEMBLY - TECH GRAY (0648)

$

$

Not available

$

$

2

White Outdoor 603-0424

Panel, Control LH

Variations

White Outdoor 603-0424-0637

No Longer Available PANEL ASM: CONTROL - POWDER BLACK (0637)

$

$

Not available

$

$

3

White Outdoor 603-0425

Panel, Control RH

Variations

White Outdoor 603-0425-0637

No Longer Available PANEL ASM CONT. R - POWDER BLACK (0637)

$

$

Not available

$

$

4

White Outdoor 703-2783

Bracket, Fuel Tank Mounting

Variations

White Outdoor 703-2783-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 703-2783-0637

No Longer Available BRACKET-FUEL TANK - POWDER BLACK (0637)

$

$

Not available

White Outdoor 703-2783-0648

Bracket, Fuel Tank Mounting - TECH GRAY (0648)

$

$

Not available

$

$

5

White Outdoor 710-0376

Screw, Hex Cap 5/16-18 x 1.0 GR5

$3.99

$

In Stock, Qty 20+

0

6

White Outdoor 710-0642

Screw, Hex Wash. Hd. Tapp 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 710-0520

Screw, Hex Cap 3/8-16 x 1.50 GR5

$4.49

$

In Stock, Qty 5

0

8

White Outdoor 710-1174

Screw, Curved Hd. Carriage 5/16-18 x 2.02

$7.49

$

In Stock, Qty 20+

0

9

White Outdoor 710-0216

Screw, Hex Cap 3/8-16 x 3/4 GR5

$4.49

$

In Stock, Qty 12

0

10

White Outdoor 710-3144

Screw, Hex Cap 3/8-16 x 2 GR5

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 710-3180

Screw, Hex Cap 5/16-18 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

12

White Outdoor 712-0251

Nut, Retainer, 3/8-16

$

$

Not available

13

White Outdoor 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

14

White Outdoor 712-0453

Nut, Retainer, 1/4-20

$

$

Not available

15

White Outdoor 712-0455

Nut, Retainer, 3/8-16

$

$

Not available

16

White Outdoor 712-3004A

Nut, Hex Flange Lock, 5/16-18 GR5

$3.99

$

In Stock, Qty 20+

0

?17

White Outdoor 719-3130

Weight, Frame Counter

Variations

White Outdoor 719-3130-0637

No Longer Available WEIGHT-FRAME COUNT - POWDER BLACK (0637)

$

$

Not available

$

$

18

White Outdoor 723-3042

Snap Bushing

$4.49

$

In Stock, only 1 left!

0

19

White Outdoor 728-0117

Rivet, Pop, .125

$3.99

$

Usually ships in 3-6 days

0

20

White Outdoor 732-0830

Clip, Spring
(Superseded to 932-0830)

$

$

Not available

21

White Outdoor 736-0451

Washer, Saddle

$4.49

$

In Stock, Qty 11

0

22

White Outdoor 736-3004

Washer, Flat, .406 x .875 x .105

$4.99

$

In Stock, Qty 6

0

23

White Outdoor 749-3061

Bumper, Lower Tube

Variations

White Outdoor 749-3061-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 749-3061-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

White Outdoor 749-3061-0648

No Longer Available BMPR TUBE LWR - TECH GRAY (0648)

$

$

Not available

$

$

24

White Outdoor 749-3062

Bumper, Upper Tube

Variations

White Outdoor 749-3062-0498

No Longer Available BMPR:TUBE:UPPER - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 749-3062-0637

No Longer Available BMPR:TUBE:UPPER - POWDER BLACK (0637)

$

$

Not available

White Outdoor 749-3062-0648

BMPR:TUBE:UPPER - TECH GRAY (0648)

$

$

Not available

$

$

25

White Outdoor 749-3082

Tube, Engine Compart. Support

Variations

White Outdoor 749-3082-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

26

White Outdoor 750-3200

Spacer

$

$

Not available

27

White Outdoor 603-0620

Bumper, Front

Variations

White Outdoor 603-0620-0498

No Longer Available BUMPER ASSY-FRONT - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 603-0620-0648

No Longer Available BUMPER ASSY-FRONT - TECH GRAY (0648)

$

$

Not available

$

$

28

White Outdoor 726-0298

End Cap

$

$

Not available
