Z-180 (53AC235M190) - White Outdoor 48" Zero-Turn Mower Engine Mounting, Muffler, Controls And PTO Clutch (Air Cooled Only) Parts Diagram

48" Zero-Turn Mower

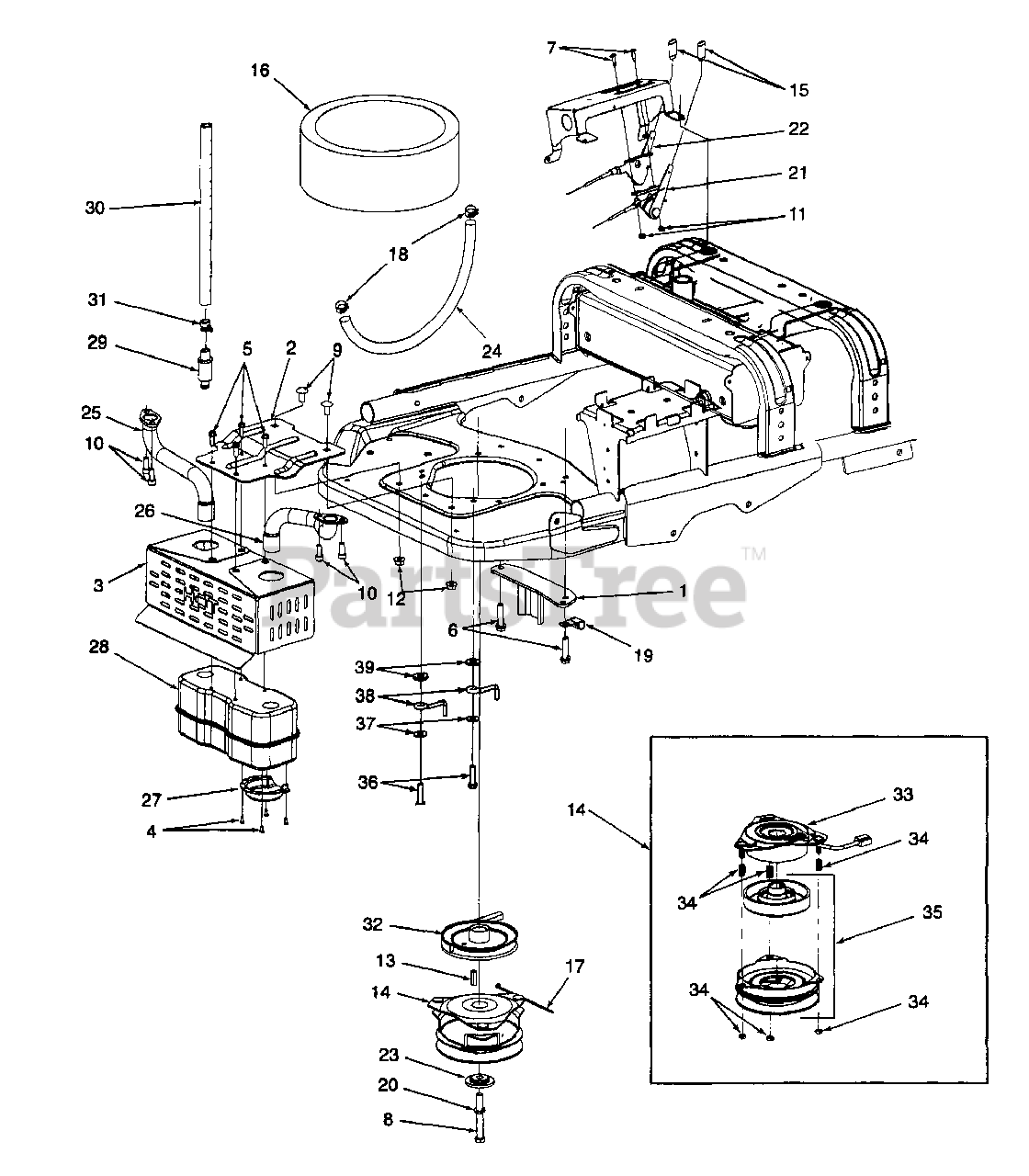

Engine Mounting, Muffler, Controls And PTO Clutch (Air Cooled Only) Parts Diagram

  • Title

1

White Outdoor 603-0317

Retainer, PTO Clutch Assembly

Variations

White Outdoor 603-0317-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

2

White Outdoor 703-2859

Bracket, Muffler Support

$

$

Not available

3

White Outdoor 703-3004

Shield, Muffler
(Superseded to 703-3004-0637)

Variations

White Outdoor 703-3004-0637

SHIELD-MUFFLER - POWDER BLACK (0637)

$

$

Not available

$

$

4

White Outdoor 710-0148

Screw, Hex Wash Hd Tapp #8-32 x .38

$4.49

$

In Stock, Qty 16

0

5

White Outdoor 710-0642

Screw, Hex Wash Hd Tapp 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 710-1007

Screw, Hex Wash Hd Tapp 3/8-16 x 1.5

$6.49

$

In Stock, only 1 left!

0

7

White Outdoor 710-3009

Screw, Phil. Pan Hd, 10-24 x .75

$7.49

$

Usually ships in 3-6 days

0

8

White Outdoor 710-3157

Screw, Hex Cap 7/16-20 x 3.25 GR5
(Superseded to 710-3157A)

$10.99

$

In Stock, only 1 left!

0

9

White Outdoor 710-3178

Bolt, Carriage, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 710-3292

Screw, Socket Hd M8 x 1.25 x 20 mm

$6.99

$

Usually ships in 3-6 days

0

11

White Outdoor 712-0161

Nut, Hex, #10-24

$4.49

$

In Stock, only 1 left!

0

12

White Outdoor 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

13

White Outdoor 714-0128

Key, Square, 1/4 x 1.0

$4.99

$

In Stock, Qty 6

0

14

White Outdoor 717-3389

Clutch Assembly, PTO
(Superseded to 917-3389)

$642.99

$

Usually ships in 3-6 days

0

15

White Outdoor 720-0303

Knob

$

$

Not available

16

White Outdoor 723-0466

Seal Ring, Foam Gasket

$

$

Not available

17

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

18

White Outdoor 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 18

0

19

White Outdoor 726-3008

Clip, Cable

$4.99

$

Usually ships in 3-6 days

0

20

White Outdoor 736-0171

Washer, Lock, 7/16

$4.49

$

In Stock, only 4 left!

0

21

White Outdoor 746-3068

Cable, Choke Control

$

$

Not available

22

White Outdoor 746-3070

Cable, Throttle Control

$

$

Not available

23

White Outdoor 750-3106

Spacer, PTO Clutch

$35.99

$

Usually ships in 3-6 days

0

24

White Outdoor 751-0535-13

Fuel Line Hose 13" Length
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

25

White Outdoor 751-0558

Tube, Exhaust - RH

$

$

Not available

26

White Outdoor 751-0559A

Tube, Exhaust - LH

$

$

Not available

27

White Outdoor 751-0564

Deflector, Muffler
(Superseded to 751-0564B)

$13.99

$

In Stock, Qty 5

0

28

White Outdoor 751-0616

Muffler, Twin Inlet
(Superseded to 951-0616B)

$163.99

$

In Stock, Qty 16

0

29

White Outdoor 751-3140

Drain, Oil
(Superseded to 951-10517A)

$24.99

$

In Stock, only 1 left!

0

30

White Outdoor 751-3141-13

Extension Hose, Oil Drain 13" Lg
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 8

0

31

White Outdoor 751-3142

Cap, Oil Drain

$4.49

$

In Stock, only 4 left!

0

32

White Outdoor 756-3060

Pulley, Transmission Drive
(Superseded to 756-3060A)

$97.99

$

Usually ships in 3-6 days

0

33

White Outdoor 759-3694

Field Assembly
(Superseded to 959-3694)

$303.99

$

In Stock, only 1 left!

0

34

White Outdoor 759-3697

Kit. Spring and Nut

$

$

Not available

35

White Outdoor 759-3739

Armature/Rotor Assembly
(Superseded to 959-3739)

$

$

Not available

36

White Outdoor 710-1008

Screw, Hex Wsh. Hd. Tapp 3/8-16 x 1.88

$5.49

$

In Stock, Qty 9

0

37

White Outdoor 736-3010

Washer, Flat

$4.99

$

In Stock, only 2 left!

0

38

White Outdoor 747-3362

Rod, Rear Belt Retaining

$

$

Not available

39

White Outdoor 736-0258

Washer, Flat

$4.49

$

In Stock, only 3 left!

0
