Z-180 (53AC235M190) - White Outdoor 48" Zero-Turn Mower Complete Transmission Assembly Parts Diagram

48" Zero-Turn Mower

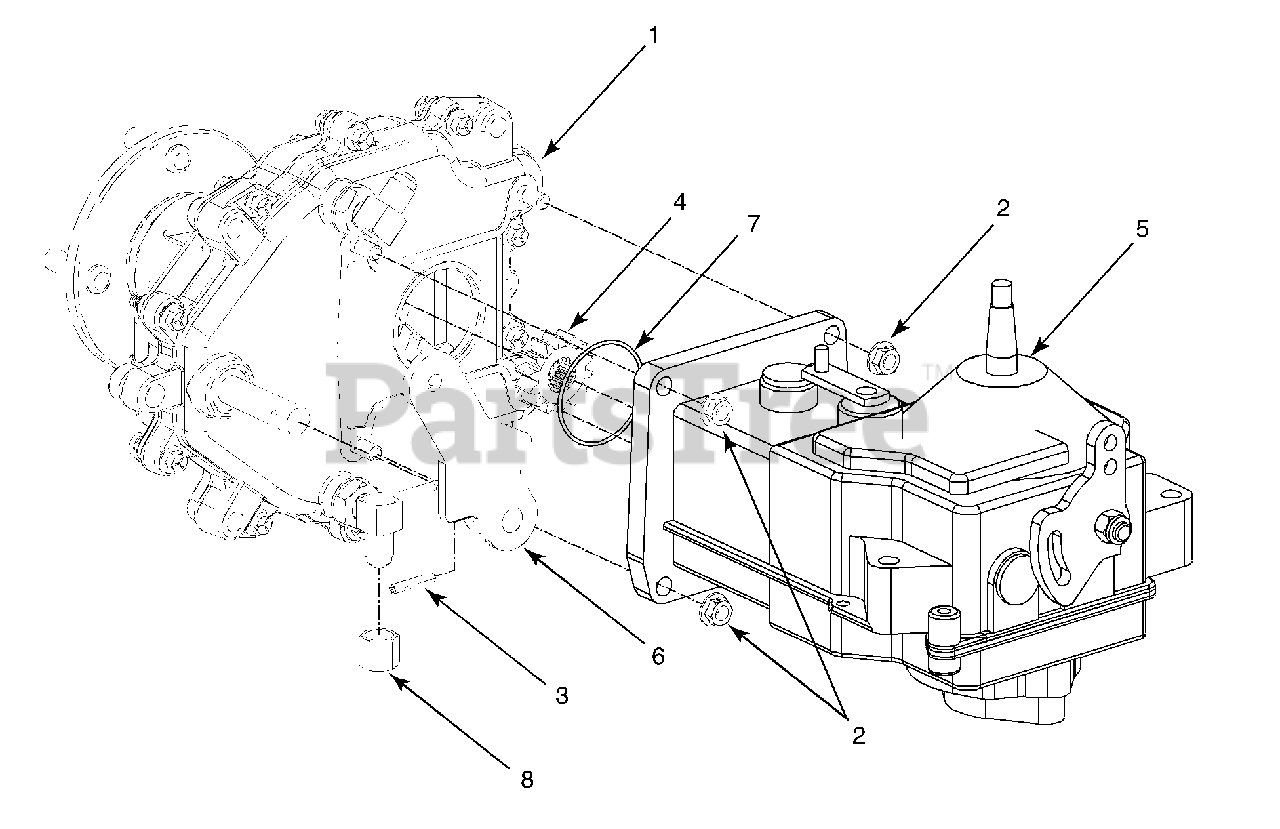

Complete Transmission Assembly Parts Diagram

  • Title
1

White Outdoor 618-3110A

Drive Ass'y, Complete Final

$

$

Not available

2

White Outdoor 712-3004A

Nut, Hex Flange Lock, 5/16-18 GR5

$3.99

$

In Stock, Qty 20+

0

3

White Outdoor 715-0136

Pin, Spirol, 3/16 x 1.25 HD
(Superseded to 915-0136)

$

$

Not available

4

White Outdoor 717-3396

Gear, Spur, 14T
(Superseded to 917-3396)

$

$

Not available

5

White Outdoor 717-3455

Transmission, Hydro: BDR
(Superseded to 917-3455)

$

$

Not available

6

White Outdoor 718-3053

Lever, Park Brake

$

$

Not available

7

White Outdoor 721-0343

O-Ring, 2.0 Dia.

$

$

Not available

8

White Outdoor 727-3125

Nut, Cap, 3/8
(Superseded to 927-3125)

$

$

Not available
