Z-180 (53AC235M190) - White Outdoor 48" Zero-Turn Mower Battery, Electrical Components & Switches (Liquid Cooled Only) Parts Diagram

48" Zero-Turn Mower

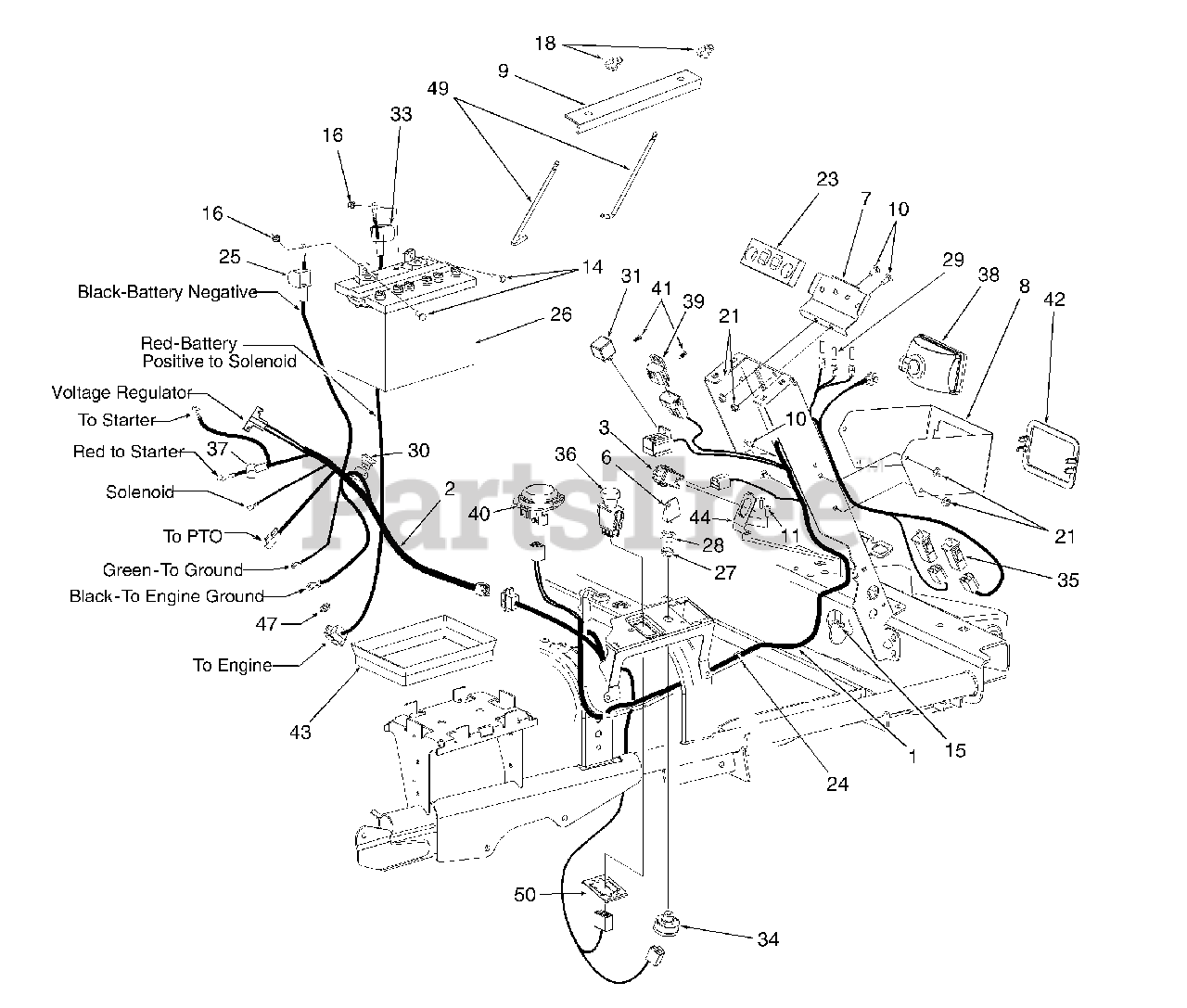

Battery, Electrical Components & Switches (Liquid Cooled Only) Parts Diagram

  • Title

1

White Outdoor 629-3032

Wire Harness, Main

$

$

Not available

2

White Outdoor 629-3035

Wire Harness, Engine

Note: Includes Ref. Nos.30

$

$

Not available

3

White Outdoor 725-3191A

Switch, Plunger Safety
(Superseded to 925-3191A)

$54.99

$

In Stock, only 4 left!

0

6

White Outdoor 759-3476A

Key, Ignition
(Superseded to 925-0201)

Note: (Set of 2)

$9.49

$

In Stock, only 1 left!

0

7

White Outdoor 703-2809

Bracket, Indicator Bulb Mtg.

Variations

White Outdoor 703-2809-0637

No Longer Available BRKT. INDICATOR LG - POWDER BLACK (0637)

$

$

Not available

$

$

8

White Outdoor 703-2836

0498 Bracket, Headlight Mtg.

Variations

White Outdoor 703-2836-0498

BRACKET-HEADLIGHT - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 703-2836-0637

BRACKET-HEADLIGHT - POWDER BLACK (0637)

$

$

Not available

White Outdoor 703-2836-0648

Bracket, Headlight Mtg. - TECH GRAY (0648)

$

$

Not available

$

$

9

White Outdoor 703-3149

Strip, Battery Retainer
(Superseded to 703-3149A)

$

$

Not available

10

White Outdoor 710-0134

Bolt, Carriage, 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 710-0425

Screw, Machine, #10-24 x 5/8

$4.99

$

Usually ships in 3-6 days

0

14

White Outdoor 710-3015

Screw, Hex Cap, 1/4-20 x .75 GR5

$3.99

$

In Stock, Qty 20+

0

15

White Outdoor 712-0161

Nut, Hex Insert Lock, #10-24

$4.49

$

In Stock, Qty 20+

0

16

White Outdoor 712-0271

Nut, Hex Sems, 1/4-20

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 712-0397

Nut, Nylon Wing, 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

21

White Outdoor 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 17

0

23

White Outdoor 723-0455

Foam Protector, Indicator Light

$

$

Not available

24

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

25

White Outdoor 725-0340

Cover, Battery Terminal - Black

$

$

Not available

26

White Outdoor 725-0453E

Battery
(Superseded to 925-0453G)

$

$

Not available

27

White Outdoor 725-1346

Nut, Ignition Switch, 5/8-32
(Superseded to 925-1346)

$

$

Not available

28

White Outdoor 725-1347

Cap, Ignition Switch

$4.99

$

In Stock, only 1 left!

0

29

White Outdoor 725-1365

Bulb, Indicator
(Superseded to 925-1365)

$10.99

$

In Stock, only 1 left!

0

30

White Outdoor 725-1656

Fuse, Mini, 20 Amp

$

$

Not available

31

White Outdoor 725-1718

Relay
(Superseded to 925-1718)

$73.99

$

Usually ships in 3-6 days

0

33

White Outdoor 725-3007A

Cover, Battery Terminal - Red

$

$

Not available

34

White Outdoor 725-1717

Switch, Ignition
(Superseded to 925-1717)

$52.99

$

In Stock, only 4 left!

0

35

White Outdoor 725-3164A

Switch, Plunger Safety
(Superseded to 925-3164A)

$40.99

$

In Stock, Qty 20+

0

36

White Outdoor 725-3233

Switch, PTO
(Superseded to 925-3233A)

$51.99

$

In Stock, Qty 9

0

37

White Outdoor 725-3237

Cover, Terminal - Red

$10.99

$

Usually ships in 3-6 days

0

38

White Outdoor 725-3250

Headlight Assembly
(Superseded to 925-3250)

$

$

Not available

White Outdoor 759-3864

Bulb, Headlight - Only
(Superseded to 925-1759)

$51.99

$

In Stock, only 1 left!

0

39

White Outdoor 725-3251

Sensor, Voltage
(Superseded to 925-3251)

$49.99

$

In Stock, only 1 left!

0

40

White Outdoor 725-3254

Switch, Seat
(Superseded to 925-3254)

$

$

Not available

41

White Outdoor 726-0349

Retainer, Ratchet

$

$

Not available

42

White Outdoor 731-3184

Bezel, Headlight

$

$

Not available

43

White Outdoor 731-3233

Tray, Battery

$

$

Not available

44

White Outdoor 732-0816

Spring, Switch Mounting

$

$

Not available

47

UNKNOWN

$

$

Not available

49

White Outdoor 747-3347

Rod, Battery Retainer

$

$

Not available

50

White Outdoor 783-0462

Bracket, PTO Switch Retainer

$

$

Not available
