Z-180 (53AC235M190) - White Outdoor 48" Zero-Turn Mower Battery, Electrical Components And Switches (Air Cooled Only) Parts Diagram

48" Zero-Turn Mower

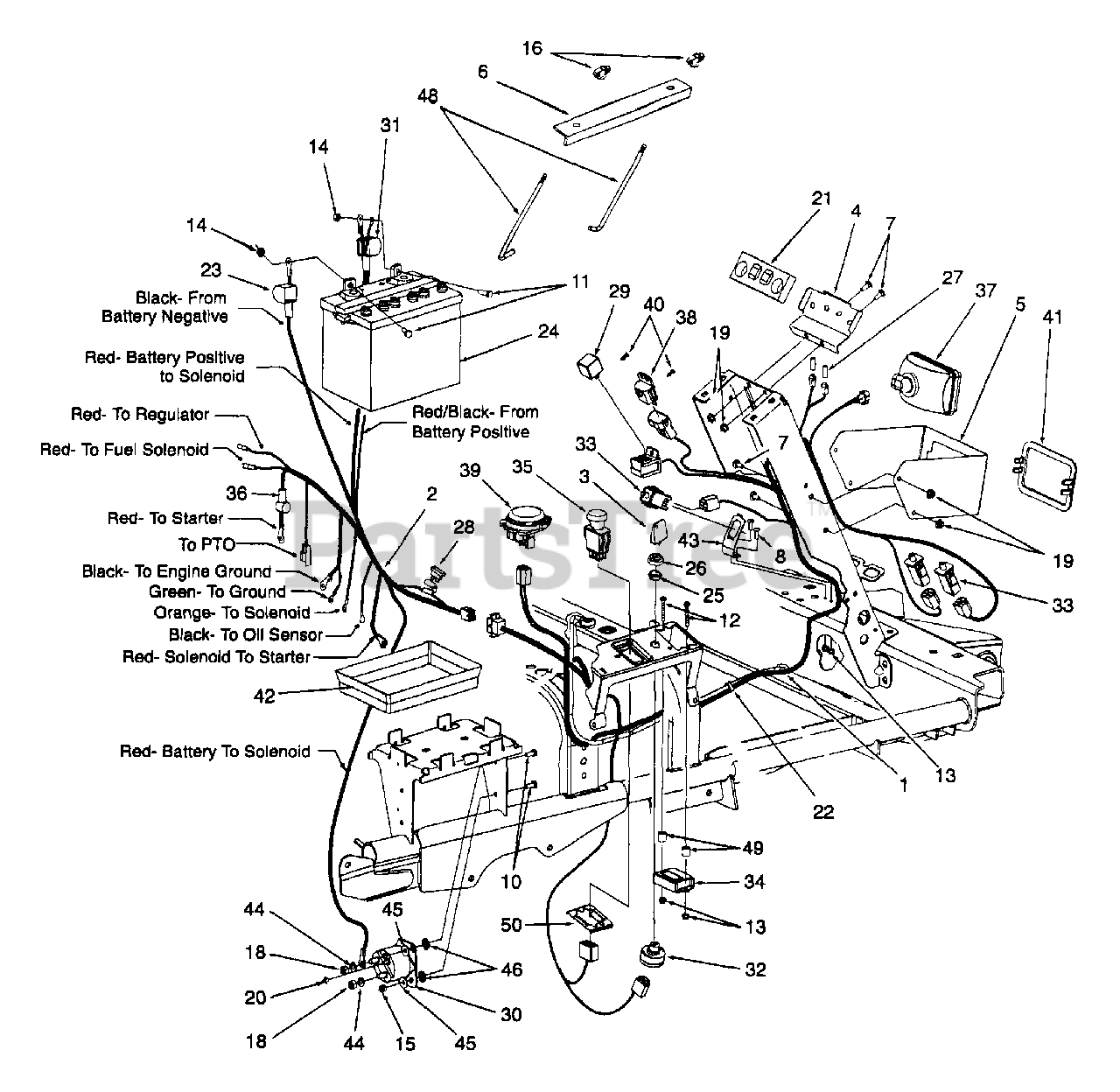

Battery, Electrical Components And Switches (Air Cooled Only) Parts Diagram

  • Title

1

White Outdoor 629-3033

Wire Harness, Main

$

$

Not available

2

White Outdoor 629-3036A

Wire Harness, Engine

Note: Includes Ref. Nos. 23, 28, 31 & 36

$

$

Not available

3

703-1341B

Key, Ignition

$

$

Not available

4

White Outdoor 703-2809

Bracket, Indicator Bulb Mtg.

Variations

White Outdoor 703-2809-0637

No Longer Available BRKT. INDICATOR LG - POWDER BLACK (0637)

$

$

Not available

$

$

5

White Outdoor 703-2836-0648

Bracket, Headlight Mtg.

$

$

Not available

6

White Outdoor 703-3149

Strip, Battery Retainer
(Superseded to 703-3149A)

$

$

Not available

7

White Outdoor 710-0134

Bolt, Carriage, 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 710-0425

Screw, Machine, #10-24 x 5/8

$4.99

$

Usually ships in 3-6 days

0

10

White Outdoor 710-0751

Screw, Hex Cap, 1/4-20 x .62 GR5

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 710-3015

Screw, Hex Cap, 1/4-20 x .75 GR5

$3.99

$

In Stock, Qty 20+

0

12

White Outdoor 710-3143

Screw, Pan Hd Cutting, #10-24

$11.99

$

Usually ships in 3-6 days

0

13

White Outdoor 712-0161

Nut, Hex Insert Lock, #10-24

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 712-0271

Nut, Hex Sems, 1/4-20

$4.49

$

In Stock, Qty 19

0

15

White Outdoor 712-0291

Nut, Hex Center Lock, 1/4-20

$4.49

$

In Stock, Qty 8

0

16

White Outdoor 712-0397

Nut, Nylon Wing, 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

18

White Outdoor 712-3010

Nut, Hex, 5/16-18

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 712-3071

Nut, Hex Sems, #10-32
(Superseded to 712-3071A)

$3.49

$

Usually ships in 3-6 days

0

21

White Outdoor 723-0455

Foam Protector, Indicator Light

$

$

Not available

22

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

23

White Outdoor 725-0340

Cover, Battery Terminal - Black

$

$

Not available

24

White Outdoor 725-0453F

Battery
(Superseded to 925-0453G)

$

$

Not available

25

White Outdoor 725-1346

Nut, Ignition Switch, 5/8-32
(Superseded to 925-1346)

$

$

Not available

26

White Outdoor 725-1347

Cap, Ignition Switch

$4.99

$

In Stock, only 1 left!

0

27

White Outdoor 725-1365

Bulb, Indicator
(Superseded to 925-1365)

$10.99

$

In Stock, only 1 left!

0

28

White Outdoor 725-1656

Fuse, Mini, 20Amp

$

$

Not available

29

White Outdoor 725-1718

Relay
(Superseded to 925-1718)

$73.99

$

Usually ships in 3-6 days

0

30

White Outdoor 725-3001

Solenoid Switch
(Superseded to 925-3001)

$58.99

$

Usually ships in 3-6 days

0

31

White Outdoor 725-3007A

Cover, Battery Terminal - Red

$

$

Not available

32

White Outdoor 725-3163

Switch, Ignition
(Superseded to 925-3163)

$48.99

$

In Stock, Qty 20+

0

33

White Outdoor 725-3164A

Switch, Plunger Safety
(Superseded to 925-3164A)

$40.99

$

In Stock, Qty 20+

0

34

White Outdoor 725-3229

Hourmeter/Tachometer

$

$

Not available

35

White Outdoor 725-1716

Switch, PTO
(Superseded to 925-1716A)

$73.99

$

In Stock, Qty 13

0

36

White Outdoor 725-3237

Cover, Terminal - Red

$10.99

$

Usually ships in 3-6 days

0

37

White Outdoor 725-3250

Headlight Assembly
(Superseded to 925-3250)

$

$

Not available

White Outdoor 759-3864

Bulb, Headlight - Only
(Superseded to 925-1759)

$51.99

$

In Stock, only 1 left!

0

38

White Outdoor 725-3251

Sensor, Voltage
(Superseded to 925-3251)

$49.99

$

In Stock, only 1 left!

0

39

White Outdoor 725-3253

Switch, Seat
(Superseded to 925-3253)

$61.99

$

In Stock, only 1 left!

0

40

White Outdoor 726-0349

Retainer, Ratcheet

$

$

Not available

41

White Outdoor 731-3184

Bezel, Headlight

$

$

Not available

42

White Outdoor 731-3233

Tray, Battery

$

$

Not available

43

White Outdoor 732-0816

Spring, Switch Mounting

$

$

Not available

44

White Outdoor 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

45

White Outdoor 736-0270

Washer, Bell, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

46

White Outdoor 736-3006

Washer, Int./Ext. Lock, 1/4 ID

$6.49

$

Usually ships in 3-6 days

0

48

White Outdoor 747-3347

Rod, Battery Retainer

$

$

Not available

49

White Outdoor 750-0539

Spacer, .315 x .50 x .52
(Superseded to 950-0539)

$

$

Not available

50

White Outdoor 783-0462

Bracket, PTO Switch Retainer

$

$

Not available
