Z 18 (968999501) - Husqvarna Zero-Turn Mower (2007-03) ASSEMBLY Parts Diagram

Zero-Turn Mower

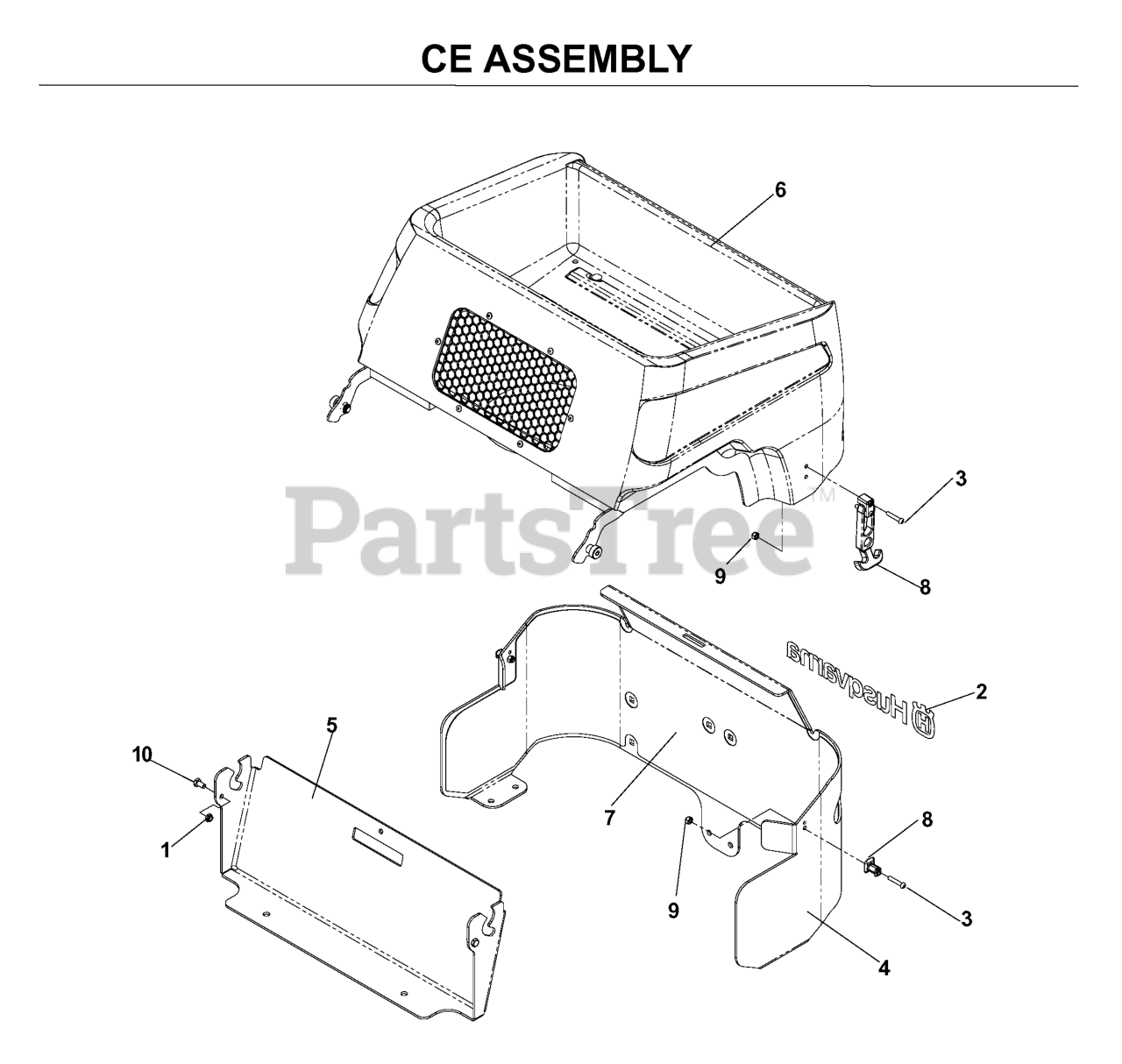

ASSEMBLY Parts Diagram

  • Title
2

Husqvarna 539111047

DECAL, HUSQ 12" BLUE

$

$

Not available

5

Husqvarna 539113599

FRONT SUPPORT

$

$

Not available

9

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

10

Husqvarna 539990071

HCS 1/4-20.

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539113597

REAR GUARD

$

$

Not available

8

Husqvarna 539200478

DRAW LATCH, FLEXIBLE T-HANDLE
(Superseded to 540200478)

$34.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539113604

HOOD ASSEMBLY, Z

$

$

Not available

7

Husqvarna 539113970

BARRIER, HEAT

$

$

Not available

1

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

3

Husqvarna 539111186

SCR, #10-24 X 1-1/8

$2.49

$

Usually ships in 3-10 days

0
