Z 18 (968999501) - Husqvarna Zero-Turn Mower (2007-03) 42INCH CUTTING DECK Parts Diagram

Zero-Turn Mower

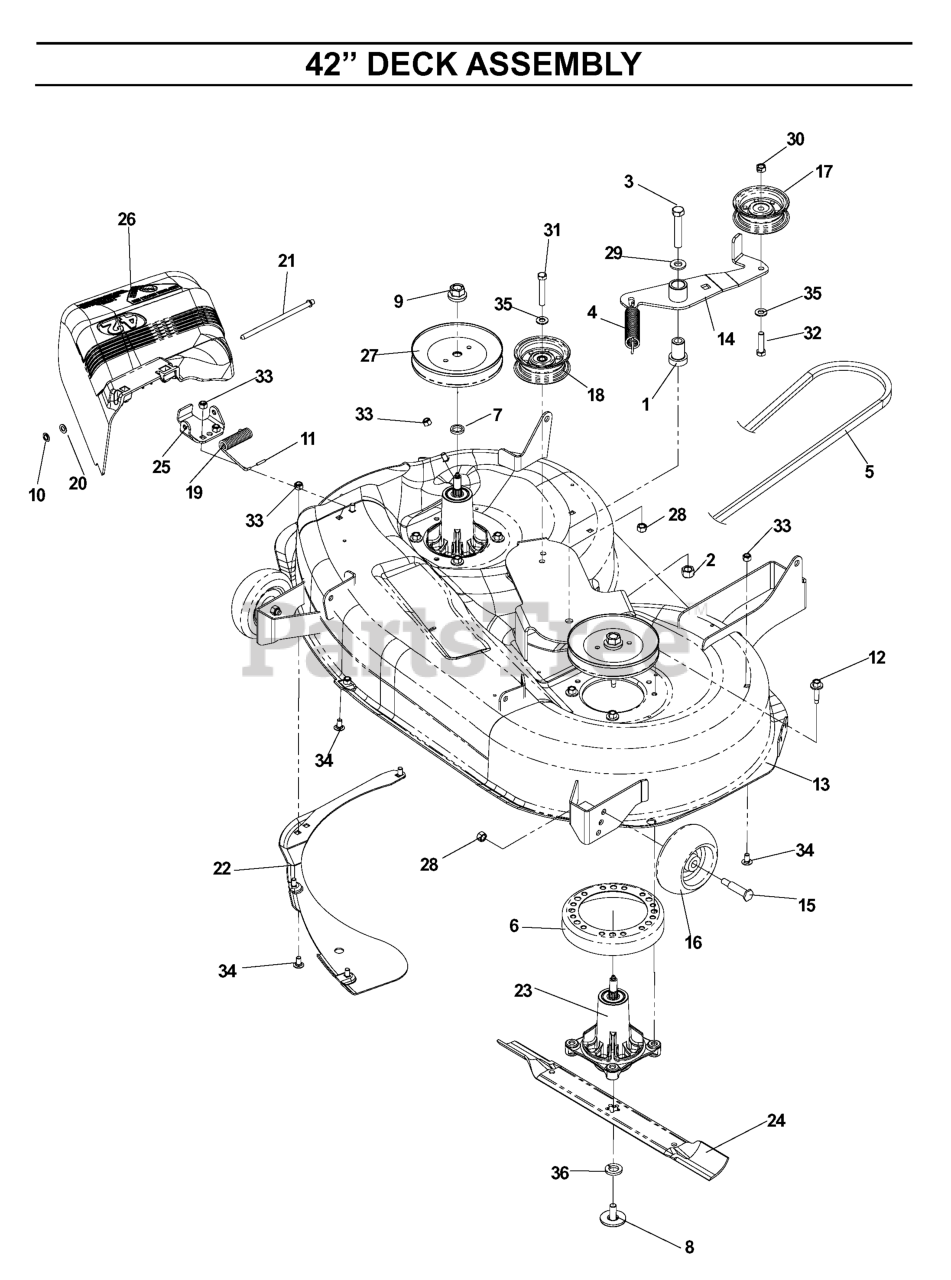

42INCH CUTTING DECK Parts Diagram

  • Title

20

Husqvarna 539110331

WASHER, 11/32 X 5/8 X 16 GA
(Superseded to 734116301)

$3.99

$

In Stock, Qty 18

0

5

Husqvarna 539102548

BELT, MULE DRIVE

$

$

Not available

28

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 539107626

PUSH NUT
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 539101231

IDLER SPINDLE

$13.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

34

Husqvarna 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 539107520

WASHER-SPACER
(Superseded to 532187690)

$4.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539102843

WASHER, 7/16 DISC SPRING
(Superseded to 539115528)

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 3 left!

0

13

Husqvarna 539110213

42" PAINTED DECK ASM
(Superseded to 539110528)

$3399.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539990250

WASHER 1/2" FLAT

$1.99

$

In Stock, only 2 left!

0

17

Husqvarna 539110316

PULLEY, IDLER, SHORT

$

$

Not available

2

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

30

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

35

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 539107590

LOCKNUT - 9/16
(Superseded to 596134801)

$4.99

$

In Stock, Qty 19

0

24

Husqvarna 539110460

BLADE 42" MULCHING STD
(Superseded to 532134149)

$

$

Not available

11

Husqvarna 539107627

CAP-SLEEVE
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

32

Husqvarna 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 2 left!

0

14

Husqvarna 539110217

DECK IDLER ARM WELDMENT

$

$

Not available

31

Husqvarna 539990629

HCS 3/8C X 2 1/4
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539110463

BAFFLE VORTEX 42
(Superseded to 532159770)

$

$

Not available

16

Husqvarna 539110289

WHEEL GUAGE

$8.99

$

In Stock, only 2 left!

0

12

Husqvarna 539107630

WASHER HEAD SCREW
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

18

Husqvarna 539110317

IDLER PULLEY ASM

$

$

Not available

6

Husqvarna 539107518

STRIPPER-ROUND-UNIVERSAL
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

21

Husqvarna 539110462

ROD, HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

23

Husqvarna 539112057

MANDREL GREASABLE
(Superseded to 587820301)

$56.99

$

In Stock, Qty 20+

0

4

Husqvarna 539101977

SPRING

$17.99

$

In Stock, Qty 10

0

19

Husqvarna 539110328

SPRING, TORSION DEFLECTOR
(Superseded to 539107609)

$5.99

$

In Stock, Qty 20+

0

15

Husqvarna 539110222

BOLT, SHOULDER
(Superseded to 532004898)

$

$

Not available

8

Husqvarna 539107522

BLADE BOLT ASSY-7/16" TB REPL
(Superseded to 532193003)

$8.99

$

Usually ships in 3-10 days

0
