Z-165 (53CA1A3G190) - White Outdoor 42" Zero-Turn Mower Seat Assembly Parts Diagram

42" Zero-Turn Mower

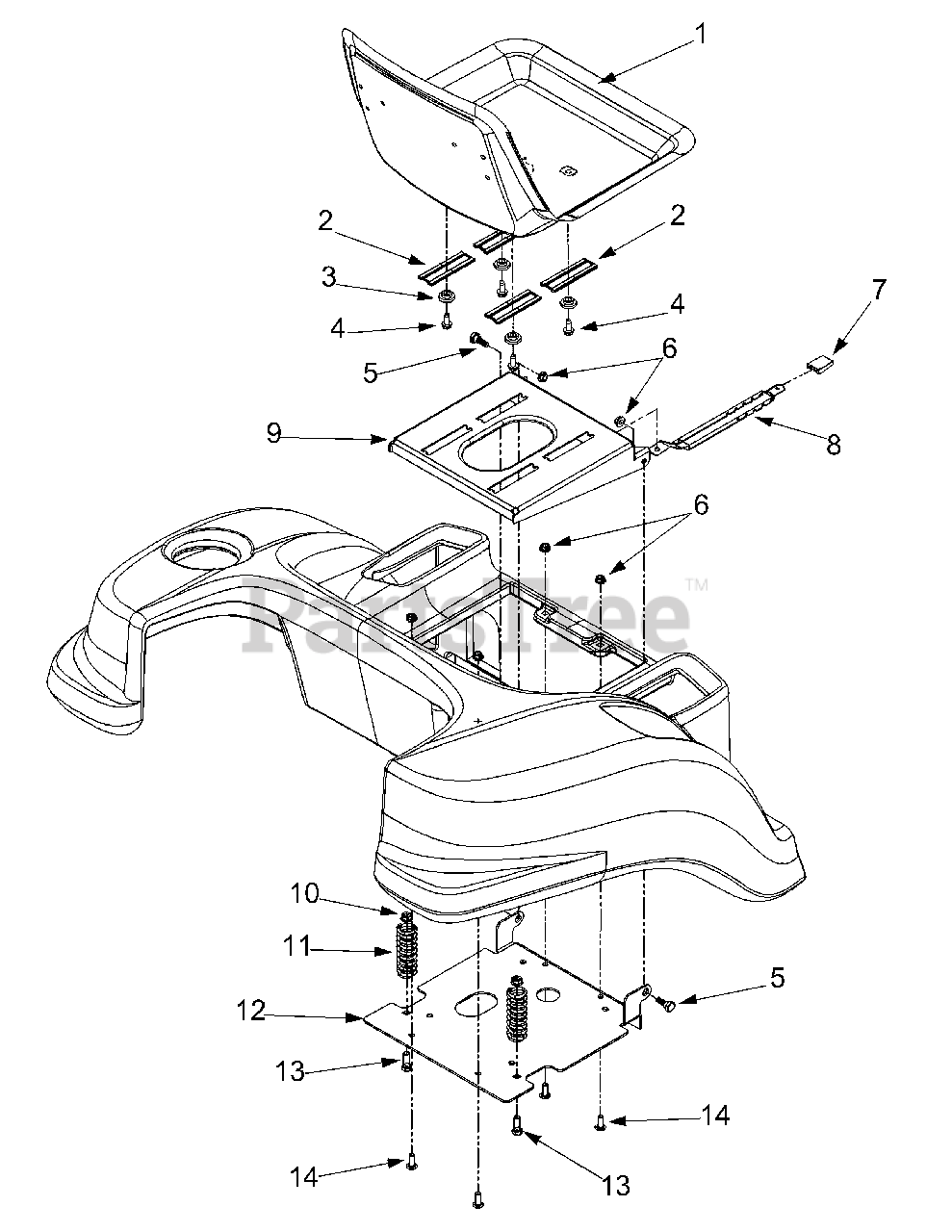

Seat Assembly Parts Diagram

  • Title

1

MTD 757-3006

Seat

$

$

Not available

2

White Outdoor 731-3154

Seat Slide

$

$

Not available

3

White Outdoor 738-0372

Shoulder Spacer
(Superseded to 738-0372B)

$9.49

$

In Stock, Qty 20+

0

4

White Outdoor 710-1260A

Hex Washer Screw 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

5

White Outdoor 738-0296

Shoulder Screw

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 712-3004A

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 720-0190

Height Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

8

White Outdoor 732-3098

Spring Index

$

$

Not available

9

White Outdoor 603-0294

Seat Base Bracket Assembly

Variations

White Outdoor 603-0294-0637

BRACKET ASSY: SEATBASE - POWDER BLACK (0637)

$

$

Not available

$

$

10

White Outdoor 712-3005

Flange Lock Nut 3/8-16

$6.99

$

Usually ships in 3-6 days

0

11

White Outdoor 732-3080

Compression Spring
(Superseded to 732-3080A)

$13.99

$

In Stock, Qty 11

0

12

703-3498

Seat Plate

$

$

Not available

13

White Outdoor 710-0514

Hex Cap Screw 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 710-3105

Bolt 5/16-18 x .875

$6.49

$

In Stock, only 2 left!

0
