Z-165 (53CA1A3G190) - White Outdoor 42" Zero-Turn Mower Parking Brake & Linkage Parts Diagram

42" Zero-Turn Mower

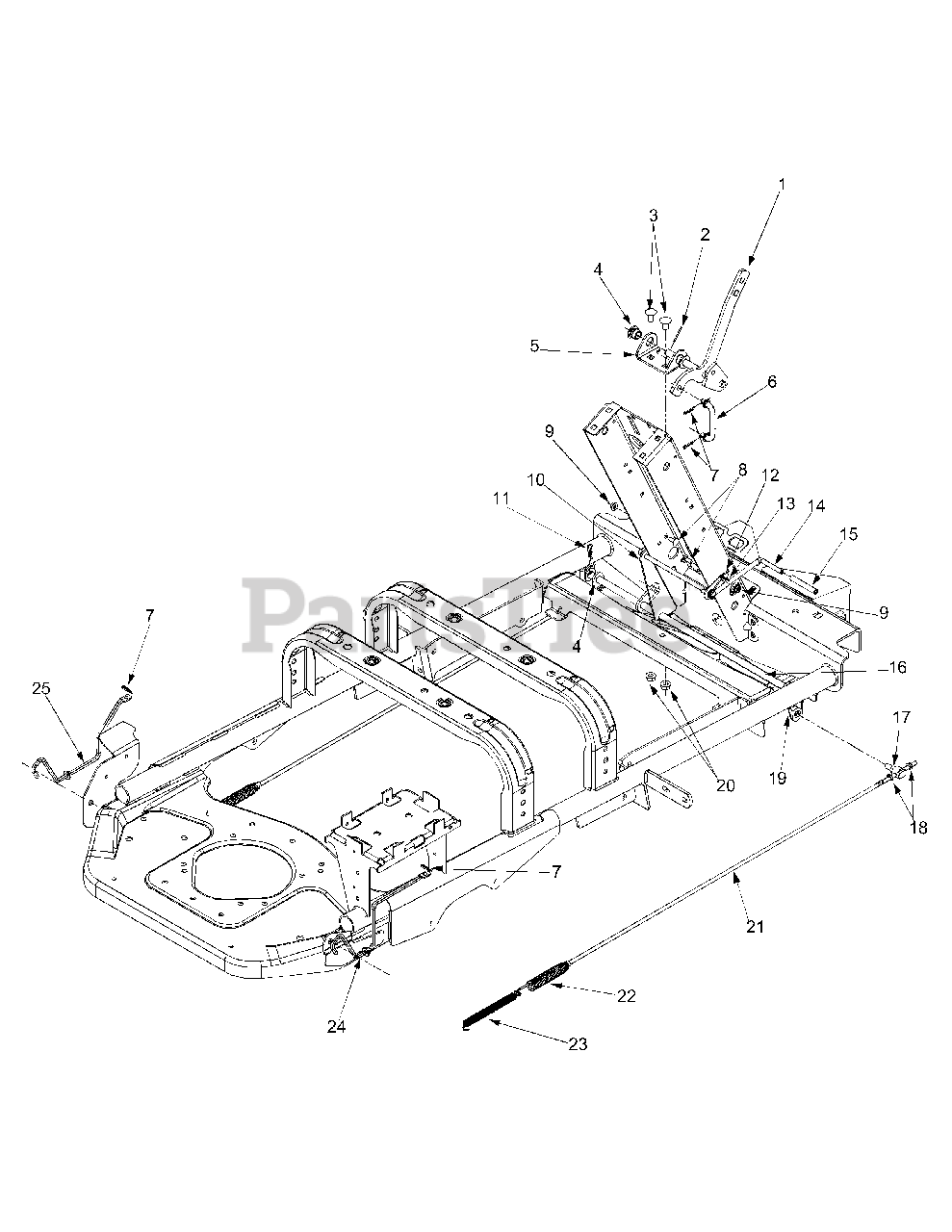

Parking Brake & Linkage Parts Diagram

  • Title
1

White Outdoor 603-0649

Parking Brake Shift Ass’y

$

$

Not available

2

$4.99

$

In Stock, Qty 8

0

3

White Outdoor 710-3178

Carriage Bolt 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 741-0324

Hex Flange Bearing .506 ID x .590
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 5

0

5

White Outdoor 703-3400

Brake Mounting Bracket

$

$

Not available

6

White Outdoor 747-3404

Connecting Brake Rod

$

$

Not available

7

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 710-0134

Carriage Screw 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 712-3027

Hex Flange Lock Nut 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 703-3405

Support Plate

$

$

Not available

11

$4.99

$

In Stock, only 2 left!

0

12

White Outdoor 703-2857

Retaining Rod Bracket

$

$

Not available

13

White Outdoor 732-0827

Torsion Spring 5/16

$

$

Not available

14

White Outdoor 747-3397

Parking Brake Retaining Rod

$

$

Not available

15

White Outdoor 735-0664

Parking Brake Pad

$

$

Not available

16

White Outdoor 603-0683

Brake Rod Ass’y

$

$

Not available

$

$

Not available

18

White Outdoor 712-0314

Jam Nut 1/4-28

$3.99

$

Usually ships in 3-6 days

0

19

White Outdoor 736-0258

Flat Washer .385 ID x 1.0 OD

$4.49

$

In Stock, only 3 left!

0

20

White Outdoor 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

21

$

$

Not available

22

White Outdoor 732-0463

Extension Spring
(Superseded to 732-0463A)

$18.99

$

Usually ships in 3-6 days

0

23

White Outdoor 732-0800

Extension Spring

$

$

Not available

24

White Outdoor 747-3284

Release Pump Rod RH

$

$

Not available

25

White Outdoor 747-3363

Release Pump Rod LH

$

$

Not available
