Z-165 (53CA1A3G190) - White Outdoor 42" Zero-Turn Mower Hydraulic Drive Parts Diagram

42" Zero-Turn Mower

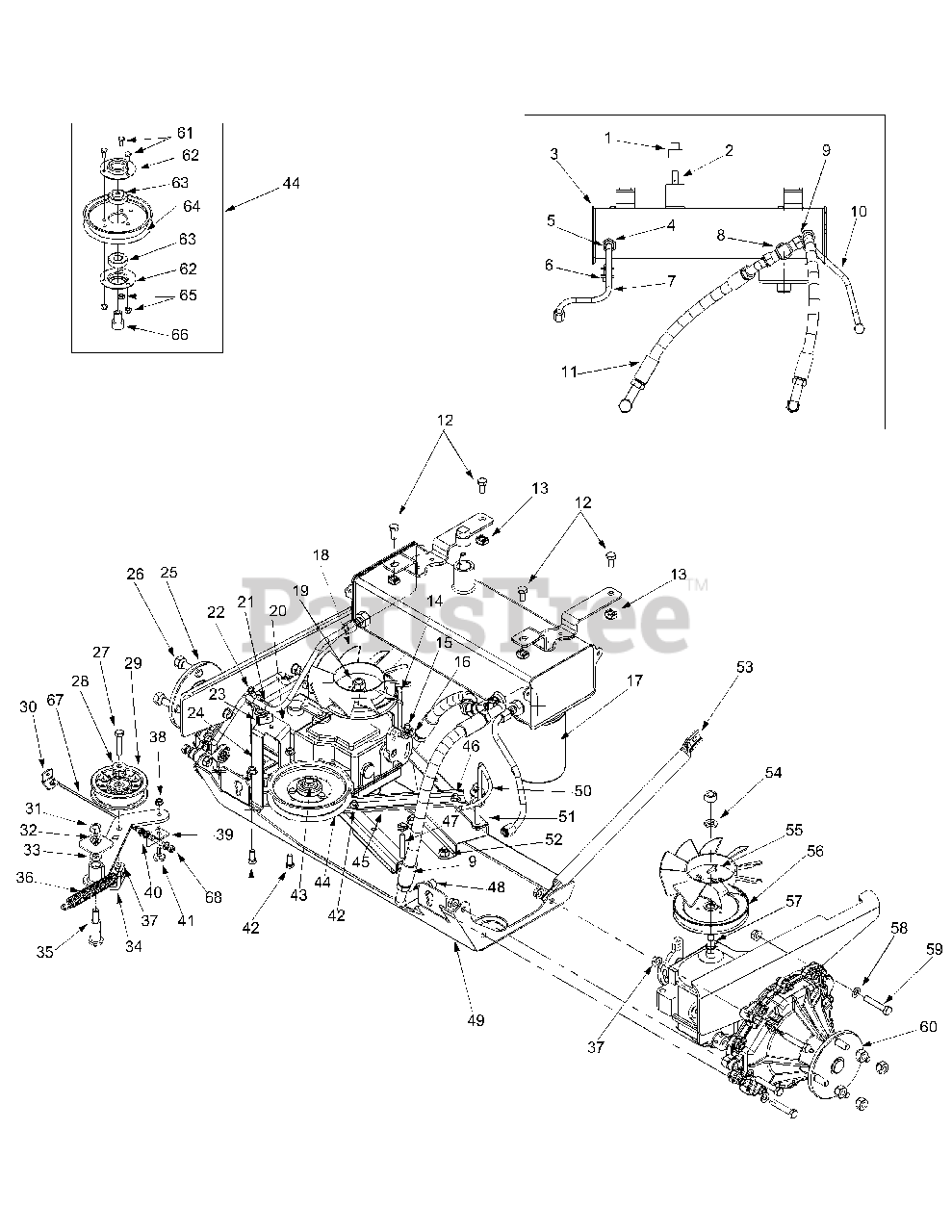

Hydraulic Drive Parts Diagram

  • Title

1

White Outdoor 737-3069

Pipe Plug

$

$

Not available

2

White Outdoor 737-3070A

Pipe Dipstick

$

$

Not available

3

White Outdoor 603-0639

Hydraulic Tank Assembly

Variations

White Outdoor 603-0639-0637

No Longer Available TANK ASSY-HYDRAULI - POWDER BLACK (0637)

$

$

Not available

$

$

4

White Outdoor 727-3116

Connection Fitting

$

$

Not available

5

White Outdoor 721-0223

Seal
(Superseded to 921-0223)

$

$

Not available

6

White Outdoor 738-0940

Drain Plug

$8.49

$

Usually ships in 3-6 days

0

7

White Outdoor 727-3120

Inlet Tube LH

$

$

Not available

8

White Outdoor 727-3155

Tee Fitting

$

$

Not available

9

White Outdoor 727-3154

Outlet Hose RH

$

$

Not available

10

White Outdoor 727-3121

Inlet Tube RH

$

$

Not available

11

White Outdoor 727-3153

Outlet Hose LH

$

$

Not available

12

White Outdoor 710-0216

Hex Cap Screw 3/8-16 x .75

$4.49

$

In Stock, Qty 15

0

13

White Outdoor 712-0455

Retainer Nut 3/8-16

$

$

Not available

14

White Outdoor 747-3360

Belt Retainer Rod RH

$

$

Not available

15

White Outdoor 710-0378

Hex Cap Screw 5/16-18 x 2.5

$4.99

$

In Stock, only 4 left!

0

16

White Outdoor 736-3089

Flat Washer 5/16

$

$

Not available

17

White Outdoor 723-3071

Filter Element

$68.99

$

In Stock, only 1 left!

0

18

White Outdoor 731-1449A

Fan Blade
(Superseded to 931-1449A)

$35.99

$

In Stock, Qty 9

0

19

White Outdoor 712-0333

Hex Nut 1/2-20
(Superseded to 912-0333)

$

$

Not available

20

White Outdoor 703-3168

Mounting Pulley Bracket

$

$

Not available

21

White Outdoor 756-0625

Roller Cable

$9.49

$

In Stock, Qty 14

0

22

White Outdoor 738-0924

Hex Shoulder Screw 1/4-28 x .375
(Superseded to 738-0924A)

$6.99

$

In Stock, Qty 5

0

23

White Outdoor 703-3169

Retainer Cable Bracket

$

$

Not available

24

White Outdoor 712-0117

Lock Nut 1/4-28
(Superseded to 912-0117)

$2.49

$

In Stock, only 2 left!

0

25

618-3165

Complete Transmission Assembly LH

$

$

Not available

26

White Outdoor 712-3050

Lug Nut

$9.99

$

In Stock, Qty 5

0

27

White Outdoor 710-0347

Hex Cap Screw 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

28

White Outdoor 736-0258

Flat Washer .385 ID x 1.0 OD

$4.49

$

Usually ships in 3-6 days

0

29

White Outdoor 756-0627

Flat Idler Pulley 3.5 OD
(Superseded to 756-0627D)

$30.99

$

In Stock, Qty 20+

0

30

White Outdoor 703-3174

Mounting Bracket Cable

$

$

Not available

31

White Outdoor 712-3019

Hex Nut 7/16-14

$6.99

$

In Stock, only 1 left!

0

32

White Outdoor 736-0171

Lock Washer 7/16

$4.49

$

In Stock, only 4 left!

0

33

White Outdoor 736-3015

Flat Washer .469 ID x .875 OD
(Superseded to 936-3015)

$4.49

$

In Stock, Qty 20+

0

34

White Outdoor 603-0377A

Idler Arm Assembly

Variations

White Outdoor 603-0377A-0637

ARM ASSY-IDLER - POWDER BLACK (0637)

$

$

Not available

$

$

35

White Outdoor 603-0102

Shoulder Screw

$

$

Not available

36

White Outdoor 732-0478

Extension Spring 6.12 Lg
(Superseded to 932-0478)

$12.99

$

In Stock, Qty 10

0

37

White Outdoor 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

38

White Outdoor 712-0138

Hex Nut 1/4-28

$6.99

$

Usually ships in 3-6 days

0

39

White Outdoor 736-0329

Lock Washer 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

40

White Outdoor 736-0342

Flat Washer .283 ID x .75 OD

$7.49

$

Usually ships in 3-6 days

0

41

White Outdoor 710-0428

Hex Cap Screw 1/4-28 x 1.25

$2.49

$

In Stock, only 1 left!

0

42

White Outdoor 710-3008

Hex Cap Screw 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

43

White Outdoor 710-3011

Hex Cap Screw 3/8-16 x 2.25

$6.99

$

In Stock, Qty 20+

0

44

White Outdoor 603-0362

Idler Pulley Assembly 5.0"
(Superseded to 903-0362)

$

$

Not available

45

White Outdoor 703-2888

Idler Bracket

Variations

White Outdoor 703-2888-0637

BRACKET-IDLER - POWDER BLACK (0637)

$

$

Not available

$

$

46

White Outdoor 712-3004A

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

47

White Outdoor 710-3103

Hex Cap Screw 5/16-18 x 2.0

$4.49

$

In Stock, Qty 20+

0

48

White Outdoor 727-3100

Connection Fitting 1/2 x 3/8
(Superseded to 01002606)

$

$

Not available

49

White Outdoor 603-0358B

Skid Plate Assembly
(Superseded to 603-0358B-0637)

Variations

White Outdoor 603-0358B-0637

PLATE ASSY-SKID - POWDER BLACK (0637)

$

$

Not available

$

$

50

White Outdoor 747-3361

Belt Rod LH

$

$

Not available

51

White Outdoor 603-0450

Support Pump Assembly
(Superseded to 603-0450-0637)

Variations

White Outdoor 603-0450-0637

ASSY: SUPPORT PUMP - POWDER BLACK (0637)

$

$

Not available

$

$

52

White Outdoor 710-3178

Carriage Bolt 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

53

White Outdoor 749-3040

Frame Strut

Variations

White Outdoor 749-3040-0498

STRUT:FRM - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 749-3040-0637

STRUT:FRM - POWDER BLACK (0637)

$

$

Not available

White Outdoor 749-3040-0648

Strut, Frame - TECH GRAY (0648)

$

$

Not available

$

$

54

White Outdoor 736-0921

Lock Washer 1/2

$4.49

$

In Stock, Qty 6

0

55

White Outdoor 710-1189

Hex Washer Screw #12-24 x .625

$

$

Not available

56

White Outdoor 756-0974

Transmission Pulley

$

$

Not available

57

White Outdoor 732-0729

Wire Ring

$4.99

$

In Stock, only 4 left!

0

58

White Outdoor 736-0185

Flat Washer

$3.99

$

In Stock, Qty 20+

0

59

White Outdoor 710-3144

Hex Cap Screw 3/8-16 x 2.0

$4.49

$

In Stock, Qty 20+

0

60

618-3164

Complete Tranmission Assembly RH

$

$

Not available

61

White Outdoor 710-0751

Hex Cap Screw 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

62

White Outdoor 703-2907

Bearing Cup

$

$

Not available

63

White Outdoor 741-0600

Ball Bearing
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

64

White Outdoor 756-3085

Idler Pulley 5.0"

$

$

Not available

65

White Outdoor 712-0324

Hex Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

66

White Outdoor 750-3176

Idler Spacer

$

$

Not available

67

White Outdoor 746-3083

Declutching Cable

$

$

Not available

68

White Outdoor 712-3007

Jam Nut 5/16-18

$6.99

$

In Stock, only 3 left!

0
