Z-165 (53CA1A3G190) - White Outdoor 42" Zero-Turn Mower Body Cover Panels Parts Diagram

42" Zero-Turn Mower

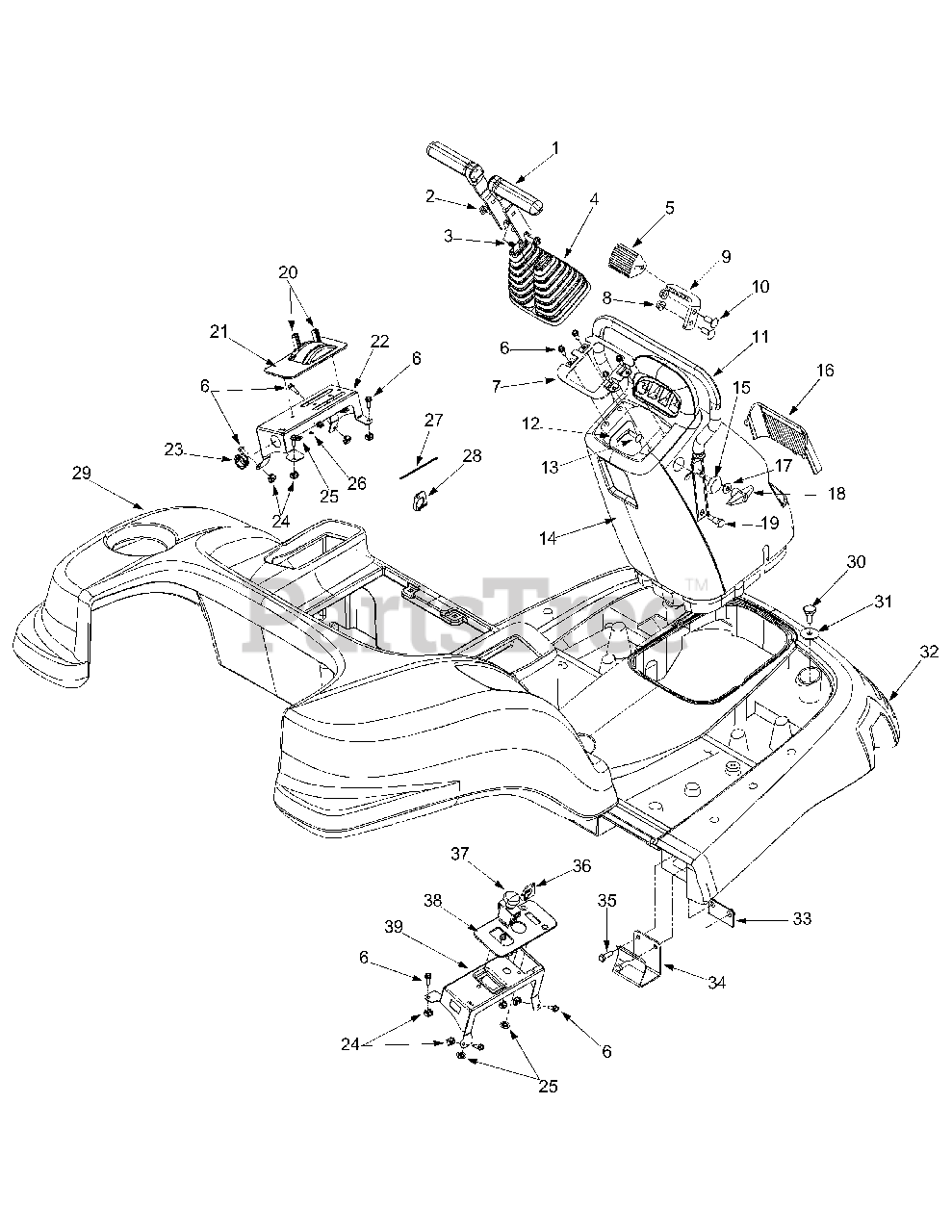

Body Cover Panels Parts Diagram

  • Title

1

White Outdoor 731-3263

Control Handle
(Superseded to 931-3263)

$

$

Not available

2

White Outdoor 712-3004A

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

3

White Outdoor 710-0451

Carriage Bolt 5/16-18

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 731-3185

Bellow

$

$

Not available

5

White Outdoor 735-0251

Foot Pad

$

$

Not available

6

White Outdoor 710-0642

Hex Washer Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 703-2648

Bellow Retainer Bracket

Variations

White Outdoor 703-2648-0637

BRACKET-RETAINER, BELLOWS - POWDER BLACK (0637)

$

$

Not available

$

$

8

White Outdoor 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

9

White Outdoor 703-2807B

Foot Pad Mounting Bracket

Variations

White Outdoor 703-2807B-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

10

White Outdoor 710-3168

Carriage Bolt 3/8-16

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 749-3081

Cruise Control Tube

Variations

White Outdoor 749-3081-0637

No Longer Available TUBE-CRUISE CONTRO - POWDER BLACK (0637)

$

$

Not available

$

$

12

White Outdoor 703-3288

Control Tube Mounting Bracket

Variations

White Outdoor 703-3288-0637

BRACKET-CONTROL TUBE - POWDER BLACK (0637)

$

$

Not available

$

$

13

White Outdoor 710-0276

Carriage Screw 5/16-18 x 1.0

$3.99

$

In Stock, Qty 20+

0

14

White Outdoor 731-3283

Consol

$

$

Not available

15

White Outdoor 726-0289

Plug

$

$

Not available

16

White Outdoor 731-3128A

Lens

$

$

Not available

17

White Outdoor 736-0242

Bell Washer .340 ID x .872 OD

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 720-0241

Wingnut Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

19

White Outdoor 738-0754

Shoulder Screw

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 720-0302

Knob

$

$

Not available

21

MTD 731-3195A

LH Control Panel Cover

$

$

Not available

22

White Outdoor 603-0424

LH Control Panel Assembly

Variations

White Outdoor 603-0424-0637

No Longer Available PANEL ASM: CONTROL - POWDER BLACK (0637)

$

$

Not available

$

$

23

White Outdoor 723-3042

Snap Bushing

$4.49

$

In Stock, only 1 left!

0

24

White Outdoor 712-0453

Retainer Nut 1/4-20

$

$

Not available

25

White Outdoor 726-3047

Push Nut
(Superseded to 926-3047)

$4.49

$

In Stock, only 4 left!

0

26

White Outdoor 728-0117

Pop Rivet

$3.99

$

Usually ships in 3-6 days

0

27

White Outdoor 726-0197

Cable Tie

$3.99

$

In Stock, only 1 left!

0

28

MTD 703-1345A

Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

29

White Outdoor 731-3309

Rear Body

$

$

Not available

30

White Outdoor 738-3163A

Shoulder Screw 3/8-16

$

$

Not available

31

White Outdoor 736-3039

Flat Washer .406 ID x 1.5 OD

$5.49

$

In Stock, Qty 5

0

32

White Outdoor 731-3318

Floor Body

$

$

Not available

33

White Outdoor 603-0578

Body Plate Assembly

$

$

Not available

34

White Outdoor 703-3474

Body Clip

Variations

White Outdoor 703-3474-0637

CLIP-BODY - POWDER BLACK (0637)

$

$

Not available

$

$

35

White Outdoor 710-0376

Hex Cap Screw 5/16-18 x 1.0

$3.99

$

In Stock, Qty 20+

0

36

MTD 703-1345A

Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

37

White Outdoor 725-3233

Electric PTO Switch
(Superseded to 925-3233A)

$51.99

$

In Stock, Qty 6

0

38

MTD 731-3196

RH Control Panel Cover
(Superseded to 731-3196A)

$

$

Not available

39

White Outdoor 603-0425

RH Control Panel Assembly

Variations

White Outdoor 603-0425-0637

No Longer Available PANEL ASM CONT. R - POWDER BLACK (0637)

$

$

Not available

$

$
