Z-165 (53CA1A3G190) - White Outdoor 42" Zero-Turn Mower 42-Inch Deck Assembly Parts Diagram

42" Zero-Turn Mower

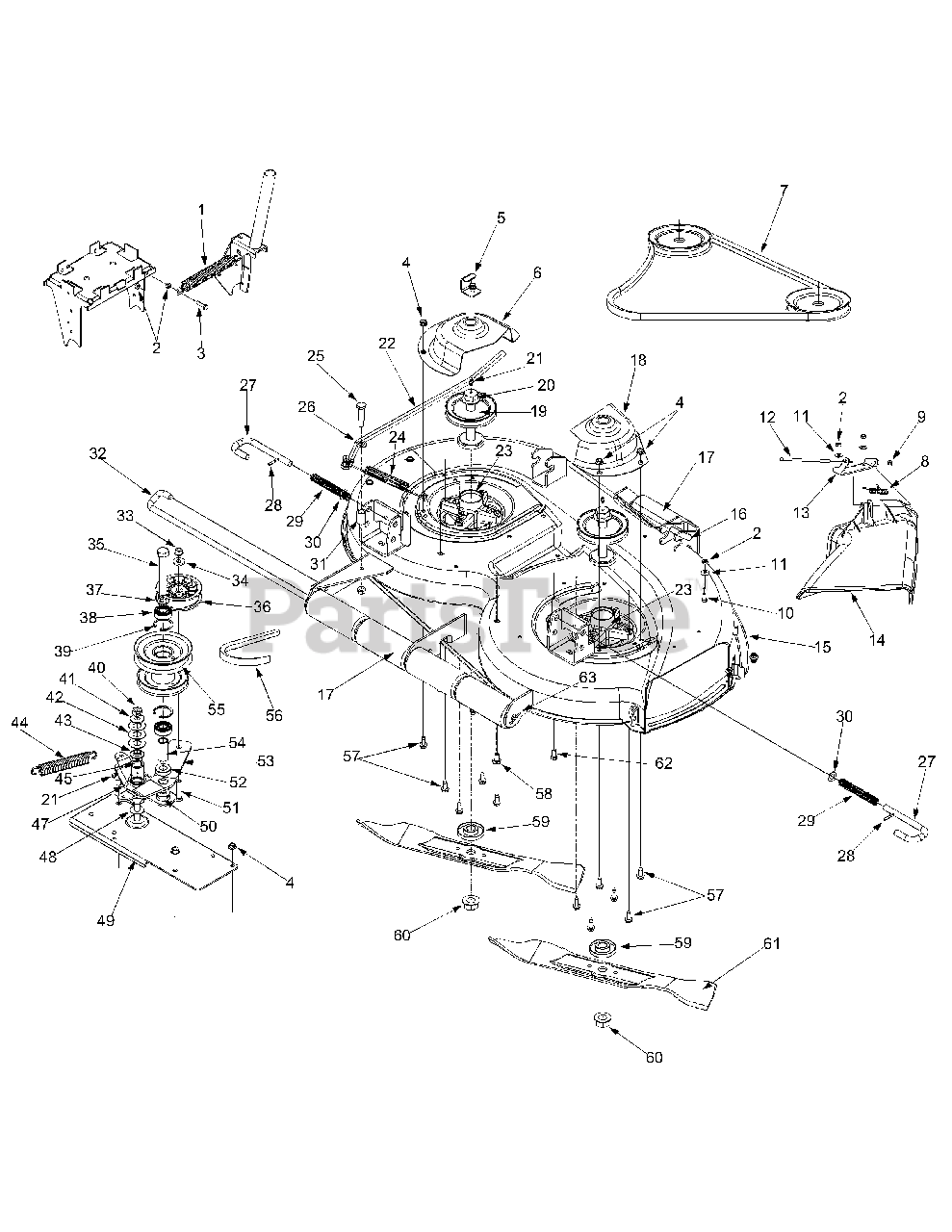

42-Inch Deck Assembly Parts Diagram

  • Title

1

White Outdoor 732-0556

Extension Spring .94 OD x 7.57 Lg
(Superseded to 932-0556)

$21.99

$

Usually ships in 3-6 days

0

2

White Outdoor 712-3006

Hex Nut 1/4-20

$4.99

$

In Stock, Qty 19

0

3

White Outdoor 710-0597

Hex Cap Screw 1/4-20 x 1.0

$3.99

$

In Stock, Qty 14

0

4

White Outdoor 712-3004A

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

5

White Outdoor 703-2559

Stop Bracket

Variations

White Outdoor 703-2559-0716

Stop Bracket - CUB YELLOW-99 (0716)

$26.99

$

Usually ships in 3-6 days

0

White Outdoor 703-2559-0637

Stop Bracket - POWDER BLACK (0637)

$26.99

$

Usually ships in 3-6 days

0

White Outdoor 703-2559-0648

Stop Bracket - TECH GRAY (0648)

$26.99

$

Usually ships in 3-6 days

0

White Outdoor 703-2559-4021

BRACKET-STOP - CUB YELLOW 2 (4021)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

6

White Outdoor 703-2945

LH Pulley Cover

Variations

White Outdoor 703-2945-0716

COVER-BELT LH - CUB YELLOW-99 (0716)

$71.99

$

Usually ships in 3-6 days

0

White Outdoor 703-2945-4021

COVER-BELT LH - CUB YELLOW 2 (4021)

$71.99

$

Usually ships in 3-6 days

0

White Outdoor 703-2945-0637

COVER-BELT LH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 703-2945-0648

COVER-BELT LH - TECH GRAY (0648)

$

$

Not available

$66.99

$

Usually ships in 3-6 days

0

7

White Outdoor 754-3091

V-Belt
(Superseded to 954-3091)

$94.99

$

Usually ships in 3-6 days

0

8

White Outdoor 732-0602

Torsion Spring
(Superseded to 732-0602A)

$12.99

$

In Stock, Qty 5

0

9

White Outdoor 726-0106

Speed Cap Nut

$3.99

$

Usually ships in 3-6 days

0

10

White Outdoor 710-0751

Hex Cap Screw 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 736-0270

Bell Washer .265 OD x .75 ID

$3.99

$

In Stock, Qty 20+

0

12

White Outdoor 711-0792

Hinge Pin .25 Dia. x 6.75 Lg
(Superseded to 911-0792)

$4.99

$

In Stock, only 1 left!

0

13

White Outdoor 703-1693

Hinge Mounting Bracket
(Superseded to 703-1693A)

$23.99

$

In Stock, only 4 left!

0

14

White Outdoor 731-1032

Deflector Ass’y Chute
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 6

0

15

White Outdoor 603-0316

Deck Ass’y

Variations

White Outdoor 603-0316-0637

No Longer Available DECK ASM SHELL 42 - POWDER BLACK (0637)

$

$

Not available

White Outdoor 603-0316-0648

No Longer Available DECK ASM SHELL 42 - TECH GRAY (0648)

$

$

Not available

$

$

16

White Outdoor 711-3314

Roller Pin
(Superseded to 711-3314A)

$25.99

$

In Stock, Qty 11

0

17

White Outdoor 731-3005

Roller

$28.99

$

In Stock, Qty 20+

0

18

White Outdoor 703-3237

RH Pulley Cover

Variations

White Outdoor 703-3237-0498

COVER-BELT RH - OLD CUB YELLOW (0498)

$66.99

$

Usually ships in 3-6 days

0

White Outdoor 703-3237-0716

Belt Cover, RH Yellow - CUB YELLOW-99 (0716)

$66.99

$

Usually ships in 3-6 days

0

White Outdoor 703-3237-0637

COVER-BELT RH - POWDER BLACK (0637)

$61.99

$

Usually ships in 3-6 days

0

White Outdoor 703-3237-4021

COVER-BELT RH - CUB YELLOW 2 (4021)

$66.99

$

Usually ships in 3-6 days

0

$61.99

$

Usually ships in 3-6 days

0

19

White Outdoor 756-3089

Pulley 4.0 Dia

$36.99

$

In Stock, only 3 left!

0

20

White Outdoor 710-1336

Spindle Bolt 3/4-16 x 4.25
(Superseded to 710-1336A)

$24.99

$

In Stock, Qty 8

0

21

White Outdoor 737-3000

Grease Fitting 3/16
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

22

White Outdoor 603-0580

Engag Rod Ass’y

$

$

Not available

23

White Outdoor 618-3129

Deck Spindle Ass’y
(Superseded to 918-3129C)

$112.99

$

In Stock, Qty 20+

0

24

White Outdoor 732-0851A

Extension Spring .75 OD x 8.63 Lg

$33.99

$

Usually ships in 3-6 days

0

25

White Outdoor 738-0213

Shoulder Screw .498 x 1.45 Lg

$7.99

$

In Stock, only 2 left!

0

26

White Outdoor 736-0192

Flat Washer .531 OD x .93 OD

$4.49

$

In Stock, Qty 18

0

27

White Outdoor 747-3013

Support Mower Pin

$22.99

$

In Stock, only 2 left!

0

28

White Outdoor 715-3003

Spirol Pin

$6.99

$

In Stock, Qty 7

0

29

White Outdoor 732-0802

Compression Spring .63 OD x 6.3 Lg

$4.49

$

In Stock, only 1 left!

0

30

White Outdoor 736-0160

Flat Washer .536 ID x .930 OD

$4.49

$

In Stock, only 2 left!

0

31

White Outdoor 750-0151

Spacer .550 ID x .750 OD
(Superseded to 950-0151)

$10.99

$

In Stock, Qty 20+

0

32

White Outdoor 711-3358

Deck Roller Pin

$

$

Not available

33

White Outdoor 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

34

White Outdoor 736-0258

Flat Washer .385 OD x 1.0 OD

$4.49

$

In Stock, only 2 left!

0

35

White Outdoor 710-3151

Hex Cap Screw 5/8-18 x 4.25

$20.99

$

In Stock, Qty 12

0

36

White Outdoor 756-0627

Flat Idler Pulley 3.5 OD
(Superseded to 756-0627D)

$30.99

$

In Stock, Qty 20+

0

37

White Outdoor 736-0290

Flat Washer 5/8 ID x 1.0 OD

$6.99

$

In Stock, Qty 20+

0

38

White Outdoor 741-0524

Bearing .625 ID x 1.574 OD
(Superseded to 941-0524A)

$23.99

$

In Stock, Qty 20+

0

39

White Outdoor 716-3020

Snap Ring
(Superseded to 916-3020)

$4.99

$

In Stock, Qty 20+

0

40

White Outdoor 712-0239

Lock Nut 1/2-20

$5.99

$

In Stock, Qty 20+

0

41

White Outdoor 736-0179

Flat Washer 1/2 ID x 1.25 OD

$4.99

$

In Stock, only 2 left!

0

42

White Outdoor 736-0188

Flat Washer .76 ID x 1.49 OD

$4.49

$

In Stock, Qty 20+

0

43

White Outdoor 741-0338

Flange Bearing 3/4 ID x .52 Lg

$9.49

$

Usually ships in 3-6 days

0

44

White Outdoor 732-0850

Extension Spring 1.0 OD x 6.140 Lg
(Superseded to 932-0850)

$24.99

$

In Stock, Qty 5

0

45

White Outdoor 750-0656

Spacer .50 OD x .75 ID

$11.99

$

In Stock, only 1 left!

0

47

White Outdoor 603-0581

Pivot Arm Pulley Ass’y

Variations

White Outdoor 603-0581-0498

ARM ASSY-PIVOT - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 603-0581-0648

ARM ASSY-PIVOT - TECH GRAY (0648)

$

$

Not available

$

$

48

White Outdoor 736-0100

Flat Washer .531 ID x 1.25 OD

$6.99

$

In Stock, Qty 7

0

49

White Outdoor 603-0584

Deck Plate Ass’y
(Superseded to 603-0584-0637)

Variations

White Outdoor 603-0584-0637

PLATE ASSY-DECK - POWDER BLACK (0637)

$

$

Not available

$

$

50

White Outdoor 736-0187

Flat Washer .64 ID x 1.24 OD

$4.49

$

In Stock, Qty 20+

0

51

White Outdoor 710-3037

Hex Cap Screw 3/8-16 x 1.75
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

52

White Outdoor 738-0988

Shoulder Spacer .875 Dia x .245

$

$

Not available

53

White Outdoor 703-3147

Idler Pivot Arm

Variations

White Outdoor 703-3147-0637

ARM-IDLER PIVOT - POWDER BLACK (0637)

$

$

Not available

White Outdoor 703-3147-0648

ARM-IDLER PIVOT - TECH GRAY (0648)

$

$

Not available

$

$

54

White Outdoor 750-3164

Spacer .635 ID x 2.0 Lg

$16.99

$

Usually ships in 3-6 days

0

55

White Outdoor 756-3103

Pulley

$178.99

$

In Stock, only 1 left!

0

56

White Outdoor 754-3092

V-Belt
(Superseded to 954-3092A)

$59.99

$

In Stock, only 1 left!

0

57

White Outdoor 710-1260A

Hex Washer Screw 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

58

White Outdoor 710-3178

Carriage Bolt 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

59

White Outdoor 748-3065

Deck Spindle Spacer
(Superseded to 748-3065A)

$13.99

$

In Stock, Qty 14

0

60

White Outdoor 712-3078

Hex Flange Nut 3/4-16

$9.99

$

In Stock, Qty 20+

0

61

White Outdoor 759-3830

Blade
(Superseded to 742P3033)

$34.99

$

In Stock, Qty 20+

0

62

White Outdoor 710-3008

Hex Cap Screw 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

63

White Outdoor 714-0115

Cotter Pin

$3.99

$

In Stock, only 2 left!

0
