Z 160T (82149) - Snapper Zero-Turn Mower, 16hp Mule Drive Assembly ("S" & "LB" Frames) Parts Diagram

Zero-Turn Mower, 16hp

Mule Drive Assembly ("S" & "LB" Frames) Parts Diagram

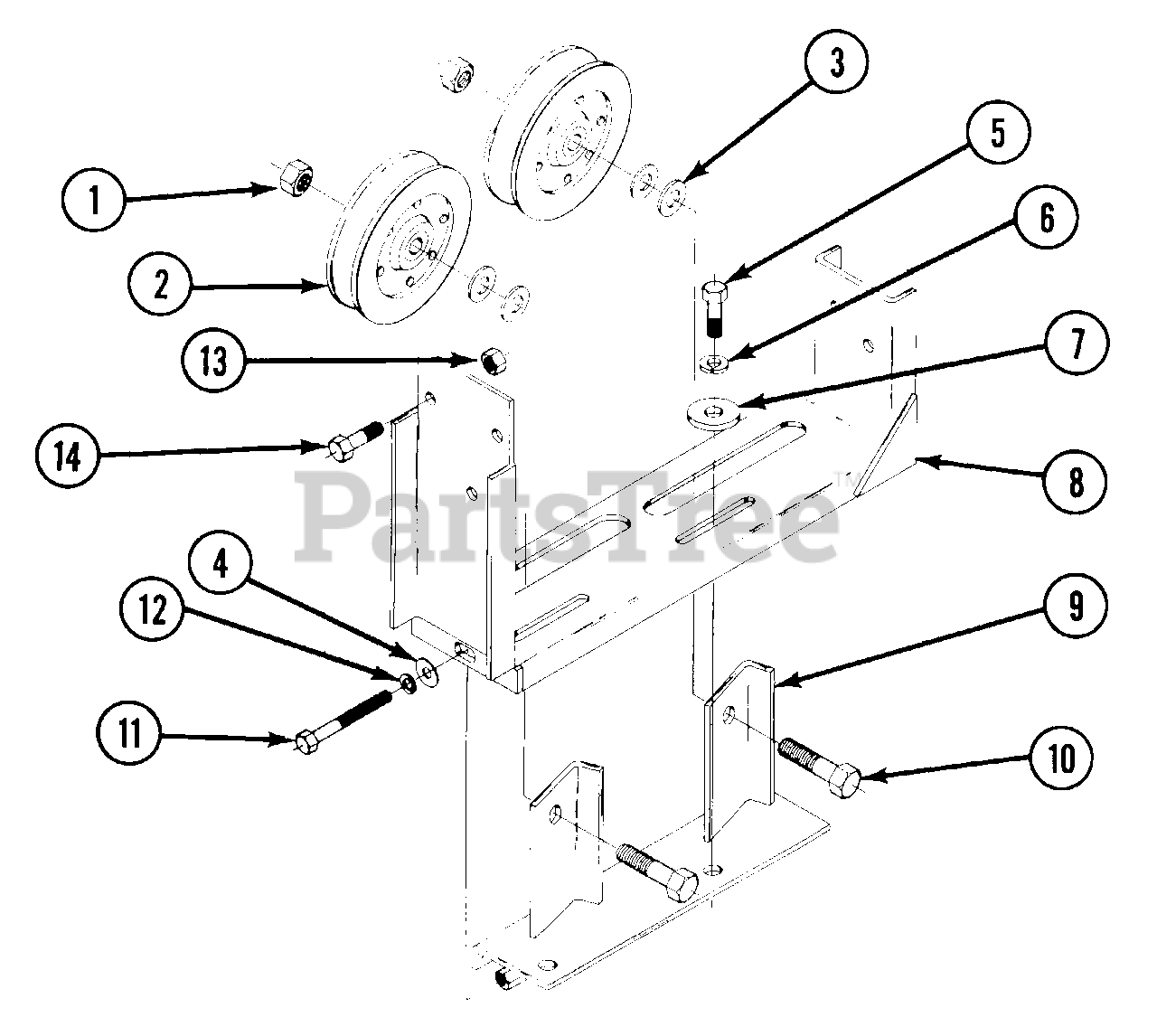

  • Title

Snapper 7079154

MULE DRIVE ASSEMBLY

$

$

Currently unavailable

1

Snapper 7079277

LOCKNUT, HEX, 1/2-13, W/NYLOC

$

$

Not available

2

Snapper 7079166

IDLER PULLEYS V, 4-3/8 OD, 1/2 BORE
(Superseded to 7079166YP)

$59.99

$

Usually ships in 2-12 days

0

3

Snapper 7090250

WASHER 1/2 STD, FLAT
(Superseded to 704123)

Note: Was 79264

$4.49

$

In Stock, only 3 left!

0

4

Snapper 7090188

WASHER, 5/16 STD, FLAT
(Superseded to 703350)

Note: Was 79263

$4.49

$

In Stock, only 3 left!

0

5

Snapper 7091304

CAPSCREW, HEX, 3/8-16 X 1, GRADE 5
(Superseded to 703407)

Note: Was 90563

$11.99

$

In Stock, Qty 7

0

6

Snapper 7079268

LOCKWASHER, 3/8 HEAVY, SPLIT SPRING
(Superseded to 7079268YP)

$3.49

$

In Stock, Qty 7

0

7

Snapper 7079108

WASHER, .406 ID X 1.25 OD X .168 THK

$

$

Currently unavailable

8

Snapper 7079153

MULE DRIVE IDLER MOUNT WELDMENT

$

$

Currently unavailable

9

Snapper 7079106

SLIDE PLATE WELDMENT

$

$

Not available

10

Snapper 7090543

CAPSCREW, HEX, 1/2-13 X 2, GRADE 5
(Superseded to 703817)

Note: Was 79276

$5.99

$

Usually ships in 2-12 days

0

11

Snapper 7079311

CAPSCREW, HEX, 5/16-18 X 2-1/2, GRADE 5
(Superseded to 7079311YP)

Note: (FULL LENGTH THREADS)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 7079267

LOCKWASHER, 5/16 HEAVY, SPLIT SPRING
(Superseded to 7079267YP)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper 7091299

LOCKNUT, HEX, 3/8-16, W/NYLOC
(Superseded to 703117)

Note: Was 79273

$3.49

$

In Stock, Qty 20+

0

14

Snapper 7091304

CAPSCREW, HEX, 3/8-16 X 1, GRADE 5
(Superseded to 703407)

Note: Was 90563

$11.99

$

In Stock, Qty 7

0

Snapper 7079181

BELT, HEX DRIVE, AA 53.5,
(Superseded to 7079181YP)

Note: (NOT SHOWN)

$44.99

$

Usually ships in 2-12 days

0
