Z 160T (82149) - Snapper Zero-Turn Mower, 16hp Joystick Brake Action Parts, Left Side Parts Diagram

Zero-Turn Mower, 16hp

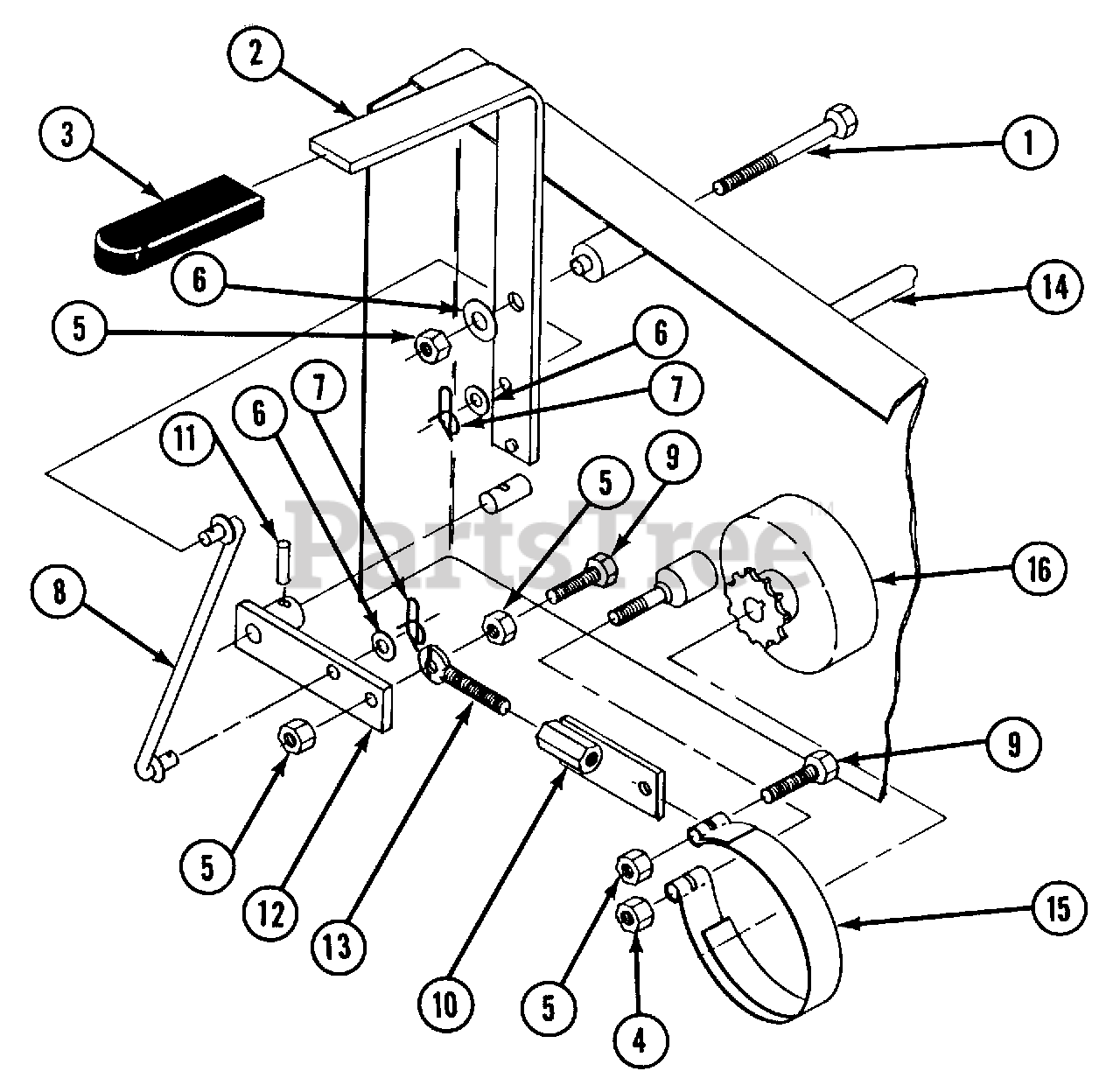

Joystick Brake Action Parts, Left Side Parts Diagram

  • Title

1

Snapper 7091830

CAPSCREW, HEX. 5/16-18 X 3 GR.5
(Superseded to 703870)

Note: Was 79365

$4.49

$

Usually ships in 2-12 days

0

2

Snapper 7079017

BRAKE HANDLE WLDT.

$

$

Currently unavailable

3

Snapper 7079213

GRIP, DIPPED VINYL, 1/4 X 1
(Superseded to 7079213YP)

$3.49

$

Usually ships in 2-12 days

0

4

Snapper 7090499

LOCKNUT, HEX, 3/8-16 W/NYLOC
(Superseded to 7090499YP)

Note: Was 79261

$3.49

$

Usually ships in 2-12 days

0

5

Snapper 7091298

LOCKNUT, HEX, 5/16-18 W/NYLOC
(Superseded to 703902)

Note: Was 90717

$3.99

$

In Stock, Qty 20+

0

6

Snapper 7090188

WASHER, 5/16 STD. FLAT
(Superseded to 703350)

Note: Was 79263

$4.49

$

In Stock, only 1 left!

0

7

Snapper 7091593

COTTER, RUE RING, 5/16-3/8 PIN
(Superseded to 703355)

Note: Was 79291

$3.99

$

In Stock, Qty 14

0

8

Snapper 7079072

BRAKE-ROD LINK WLDT,

$

$

Currently unavailable

9

Snapper 7079519

CAPSCREW, HEX, 5/16-18 X 1-1/4 GR. 5

$

$

Currently unavailable

10

Snapper 7079873

BRAKE LINK WLDT.

$

$

Not available

11

Snapper 7079294

PIN, SPIROL, 3/16 X 1, LIGHT DUTY
(Superseded to 7079294YP)

$2.99

$

In Stock, only 1 left!

0

12

Snapper 7079074

BRAKE ARM WLDT

$

$

Currently unavailable

13

Snapper 7079095

THUMB SWIVEL

$

$

Not available

14

Snapper 7079075

BRAKE CROSS SHAFT
(Superseded to 7079075YP)

$43.99

$

Usually ships in 2-12 days

0

15

Snapper 7079178

BRAKE BAND, 4-3/16 DIA 3/4 WIDE
(Superseded to 7079178YP)

$45.99

$

Usually ships in 2-12 days

0

16

Snapper 7079179

SPROCKET/BRAKE DRUM WLDT

$

$

Not available
