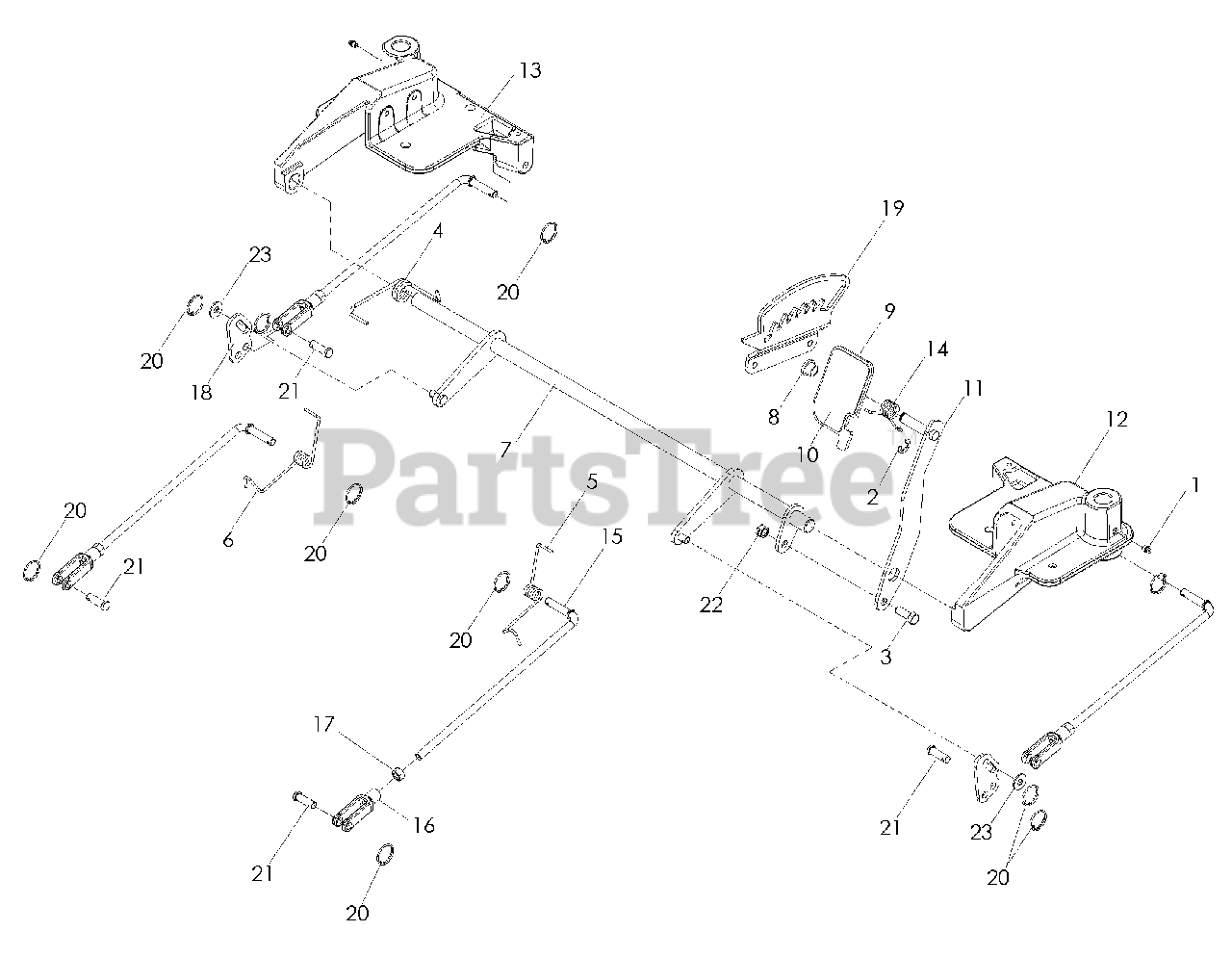

Z 16 CE (968999747) - Husqvarna Zero-Turn Mower (2008-02) Deck Lift Parts Diagram

Zero-Turn Mower

Deck Lift Parts Diagram

  • Title

1

Husqvarna 539101474

ZERK

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539101949

RING-E, 1/2

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539106791

HCS, 3/8-16 x 1, GR8

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539110071

TORSION SPRING

$8.99

$

In Stock, only 2 left!

0

5

Husqvarna 539110160

SPRING, DECK ROD, RIGHT

$7.49

$

In Stock, only 1 left!

0

6

Husqvarna 539110161

SPRING, DECK ROD, LEFT

$

$

Not available

7

Husqvarna 539110205

DECK LIFT

$398.99

$

In Stock, only 1 left!

0

8

Husqvarna 539100032

BUSHING, NYLON

$

$

Not available

9

Husqvarna 539110292

FOOT PEDAL

$

$

Not available

10

Husqvarna 539110308

FOOT PAD, NON-SLIP

$

$

Not available

11

Husqvarna 539110266

LIFT FOOT LEVER
(Superseded to 539110275)

$

$

Not available

12

Husqvarna 539110287

CASTER CASTING, RIGHT

$136.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539110288

CASTER CASTING, LEFT

$103.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539110295

SPRING, PEDAL, LIFT

$6.49

$

In Stock, only 4 left!

0

15

Husqvarna 539110306

DECK LIFT ROD

$

$

Not available

16

Husqvarna 539977465

YOKE, 3/8-24

$24.99

$

In Stock, Qty 11

0

17

Husqvarna 539990155

NUT, 3/8-24, GR2

$4.99

$

In Stock, Qty 16

0

18

Husqvarna 539113239

CONNECTOR, DECK LIFT

$

$

Not available

19

Husqvarna 539113931

HEIGHT PLATE, DECK

$

$

Not available

20

Husqvarna 539916459

RING-RETAINING

$6.49

$

In Stock, Qty 5

0

21

Husqvarna 539977703

PIN CLEVIS, 3/8 x 1 1/8

$5.99

$

In Stock, Qty 11

0

22

Husqvarna 539990546

NUT, 3/8-16, CENTERLOCK

$

$

Not available

23

Husqvarna 539990692

WASHER, 5/16
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0
