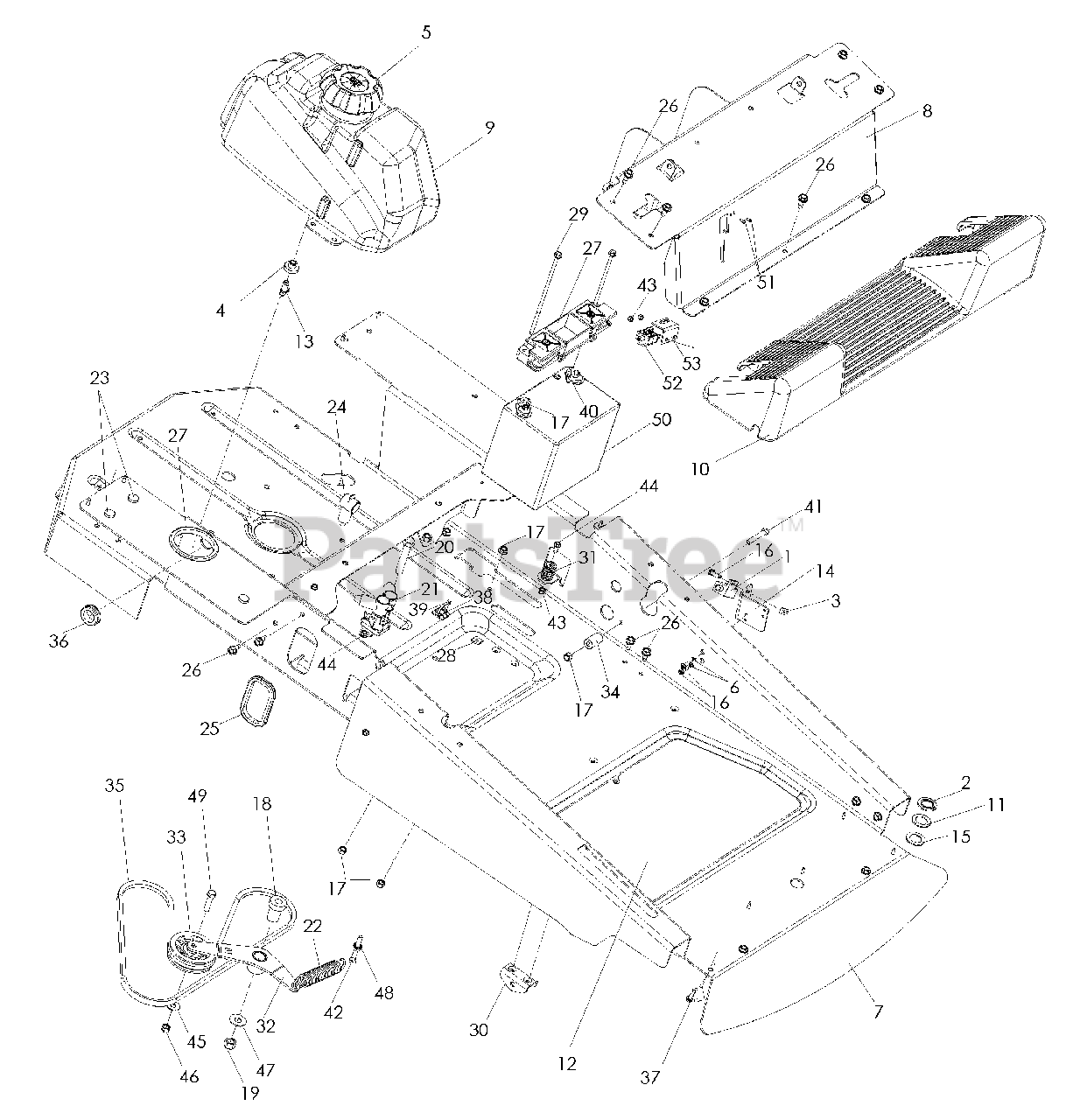

Z 16 CE (968999747) - Husqvarna Zero-Turn Mower (2008-02) Chassis/Frame Parts Diagram

Zero-Turn Mower

Chassis/Frame Parts Diagram

  • Title
1

Husqvarna 539101080

SWITCH-INTERLOCK

$17.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539101151

RING-RETAINING EXT, 7/8

$

$

Not available

3

Husqvarna 539102678

SCREW PLATE, #10-24

$15.99

$

In Stock, Qty 9

0

4

Husqvarna 539105245

GROMMET, RUBBER

$4.99

$

In Stock, Qty 12

0

5

Husqvarna 539106188

FUEL CAP, ANTISPLASH
(Superseded to 539130394)

$31.99

$

In Stock, only 1 left!

0

6

Husqvarna 539109552

LOCKWASHER, 3/16

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539110377

CHASSIS W/DECALS

$

$

Not available

8

Husqvarna 539110378

CONSOLE W/DECALS
(Superseded to 539110199)

$472.99

$

Usually ships in 3-10 days

0

9

$

$

Not available

10

$74.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539110294

WASHER, 7/8, WAVE

$7.99

$

In Stock, only 3 left!

0

12

Husqvarna 539110310

SLIP, MATTING

$21.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539110432

STEM, FUEL TANK
(Superseded to 532139277)

$8.99

$

In Stock, Qty 8

0

14

Husqvarna 539110860

SWITCH BRACKET

$5.99

$

Usually ships in 3-10 days

0

15

$3.99

$

In Stock, only 1 left!

0

16

Husqvarna 539976952

SCREW, #10-24 x 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

17

Husqvarna 539990717

NUT, 5/16-18, NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 539101231

SPINDLE-IDLER

$13.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539101331

NUT,1/2-13, NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

20

Husqvarna 539101332

HCS,1/2-13 x 2 3/4

$5.99

$

In Stock, only 3 left!

0

21

$26.99

$

Usually ships in 3-10 days

0

$17.99

$

In Stock, Qty 10

0

23

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

24

Husqvarna 539102759

INSULATOR-BATTERY

$4.99

$

In Stock, only 2 left!

0

25

$14.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539107475

BOLT, 5/16-18 x 3/4 THD FRM

$6.49

$

In Stock, only 4 left!

0

27

Husqvarna 539107628

BATTERY HOLD DOWN

$10.99

$

In Stock, only 1 left!

0

28

Husqvarna 539107629

NUT, 1/4, PUSH NYLON

$4.99

$

In Stock, Qty 7

0

29

Husqvarna 539107632

BOLT, 1/4 x 71/2, SPEC

$

$

Not available

30

Husqvarna 539110030

BRACKET, DECK HANGER

$9.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539110070

SPRING, RETURN

$

$

Not available

32

Husqvarna 539110219

PUMP IDLER ARM

$103.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539110311

PULLEY, IDLER

$17.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539110312

MOTION LIMITER

$4.99

$

Usually ships in 3-10 days

0

35

$31.99

$

In Stock, Qty 20+

0

36

Husqvarna 539110433

GROMMET, FUEL LINE

$4.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539110674

SCRW, #10-12 x 1 1/2 WSH HD

$4.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539110863

MOUNTING BLOCK, TIE

$3.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539976856

TIE-PLASTIC

$5.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539976934

HCS, 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

41

Husqvarna 539976937

HCS, 5/16-18 x 2

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539976938

HCS, 5/16-18 x 2 1/4

$4.99

$

In Stock, only 2 left!

0

43

Husqvarna 539976978

NUT, 1/4-20, NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

44

Husqvarna 539990362

SCREW, 1/4-20 x 5/8 SELF TAP

$4.99

$

In Stock, Qty 12

0

45

Husqvarna 539990517

WASHER, 3/8

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539990546

NUT, 3/8-16, CENTERLOCK

$

$

Not available

47

Husqvarna 539990550

WASHER,1/2

$3.99

$

Usually ships in 3-10 days

0

48

Husqvarna 539990585

NUT, 5/16-18, WHIZLK

$3.99

$

Usually ships in 3-10 days

0

49

Husqvarna 539990655

HCS, 3/8-16 x 1 1/2

$4.99

$

In Stock, only 2 left!

0

50

Husqvarna 539102436

BATTERY, DRY
(Superseded to 579411601)

$

$

Not available

51

Husqvarna 539990071

HCS, 1/4 x1/2

$3.99

$

Usually ships in 3-10 days

0

52

Husqvarna 539113792

SWITCH, BRAKE

$17.99

$

In Stock, Qty 12

0

53

Husqvarna 539114803

BRACKET, SWITCH

$34.99

$

Usually ships in 3-10 days

0

Husqvarna 539107616

BATTERY CABLE, POS

Note: NOT SHOWN

$

$

Not available

Husqvarna 539110068

BATTERY CABLE, NEG

Note: NOT SHOWN

$9.49

$

Usually ships in 3-10 days

0

Husqvarna 539114720

WIRING HARNESS

Note: NOT SHOWN

$

$

Not available

Husqvarna 539110290

FOAM STRIP, FUEL TANK

Note: NOT SHOWN

$3.49

$

Usually ships in 3-10 days

0
