Z 16 (968999747) - Husqvarna Zero-Turn Mower (2008-02) MOWER LIFT / DECK LIFT Parts Diagram

Zero-Turn Mower

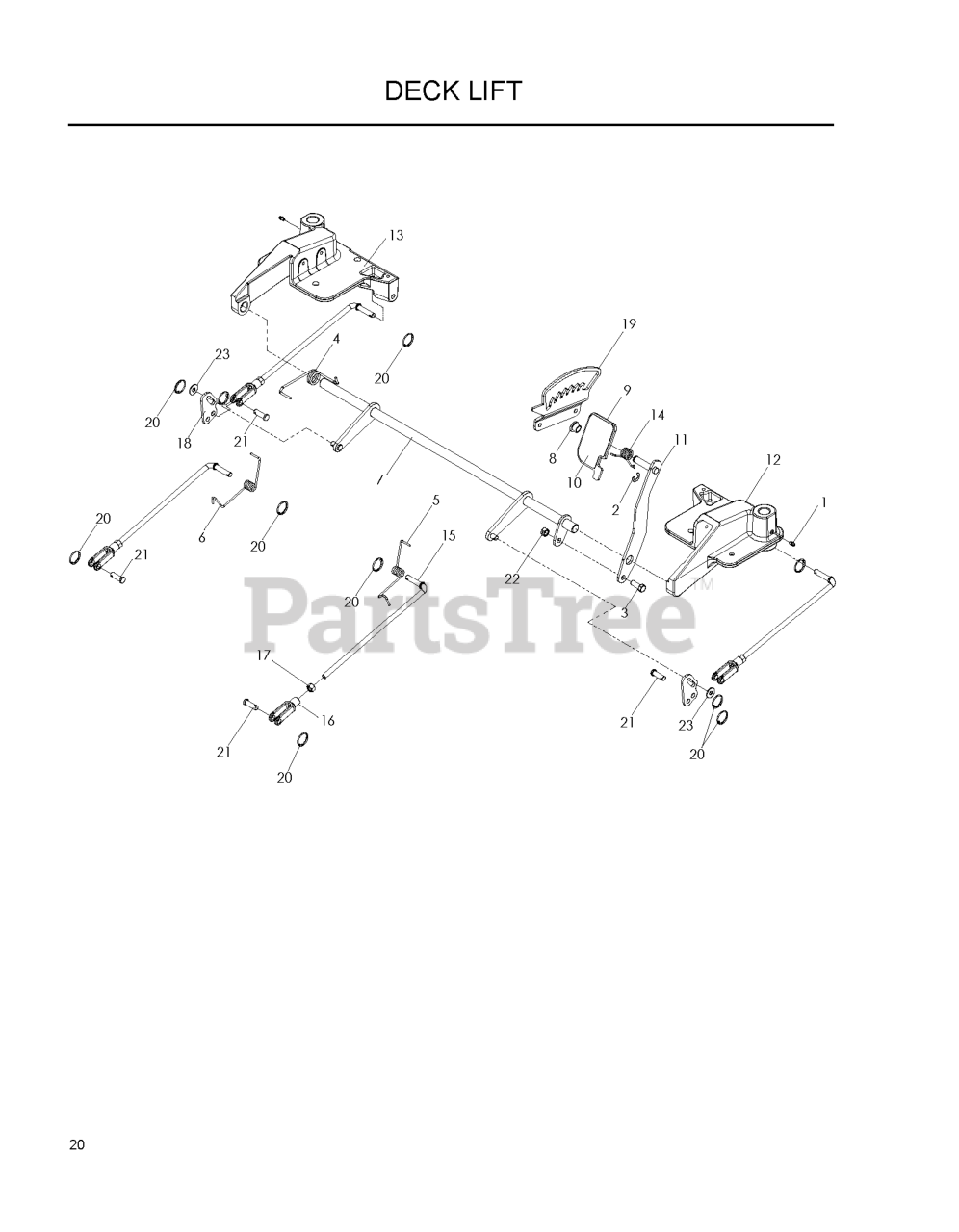

MOWER LIFT / DECK LIFT Parts Diagram

  • Title

12

Husqvarna 539110287

CASTER CASTING, RIGHT, PAINTED

Note: RIGHT

$136.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539106791

HEX BOLT 3/8 X 1"

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539110292

FOOT PEDAL

$

$

Not available

5

Husqvarna 539110160

SPRING, DECK ROD RIGHT

Note: RIGHT

$7.49

$

In Stock, only 1 left!

0

21

Husqvarna 539977703

CLEVIS PIN 3/8 X 1 1/8

$5.99

$

In Stock, Qty 11

0

10

Husqvarna 539110308

FOOT PAD, NON-SLIP

$

$

Not available

7

Husqvarna 539110205

DECK LIFT ASM PAINTED

$398.99

$

In Stock, only 1 left!

0

22

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

20

Husqvarna 539916459

RETAINER

$6.49

$

In Stock, Qty 5

0

6

Husqvarna 539110161

SPRING, DECK ROD LEFT

Note: LEFT

$

$

Not available

11

Husqvarna 539110266

LIFT FOOT, LEVER WELDED
(Superseded to 539110275)

$

$

Not available

23

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna 539110306

DECK LIFT ROD

$

$

Not available

14

Husqvarna 539110295

SPRING, PEDAL, LIFT

$6.49

$

In Stock, only 4 left!

0

17

Husqvarna 539990155

NUT 3/8F

$4.99

$

In Stock, Qty 16

0

19

Husqvarna 539113931

HEIGHT PLATE, DECK

$

$

Not available

2

Husqvarna 539101949

E-RING 1/2 (2 2)

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539100032

BUSHING, FLANGED NYLON

$

$

Not available

18

Husqvarna 539113239

CONNECTOR, DECK LIFT

$

$

Not available

1

Husqvarna 539101474

ZERK

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539110288

CASTER CASTING LEFT, PAINTED

Note: LEFT

$103.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539977465

YOKE-3/8-24 PLTD

$24.99

$

In Stock, Qty 11

0

4

Husqvarna 539110071

TORSION SPRING, DECK LIFT

$8.99

$

In Stock, only 2 left!

0
