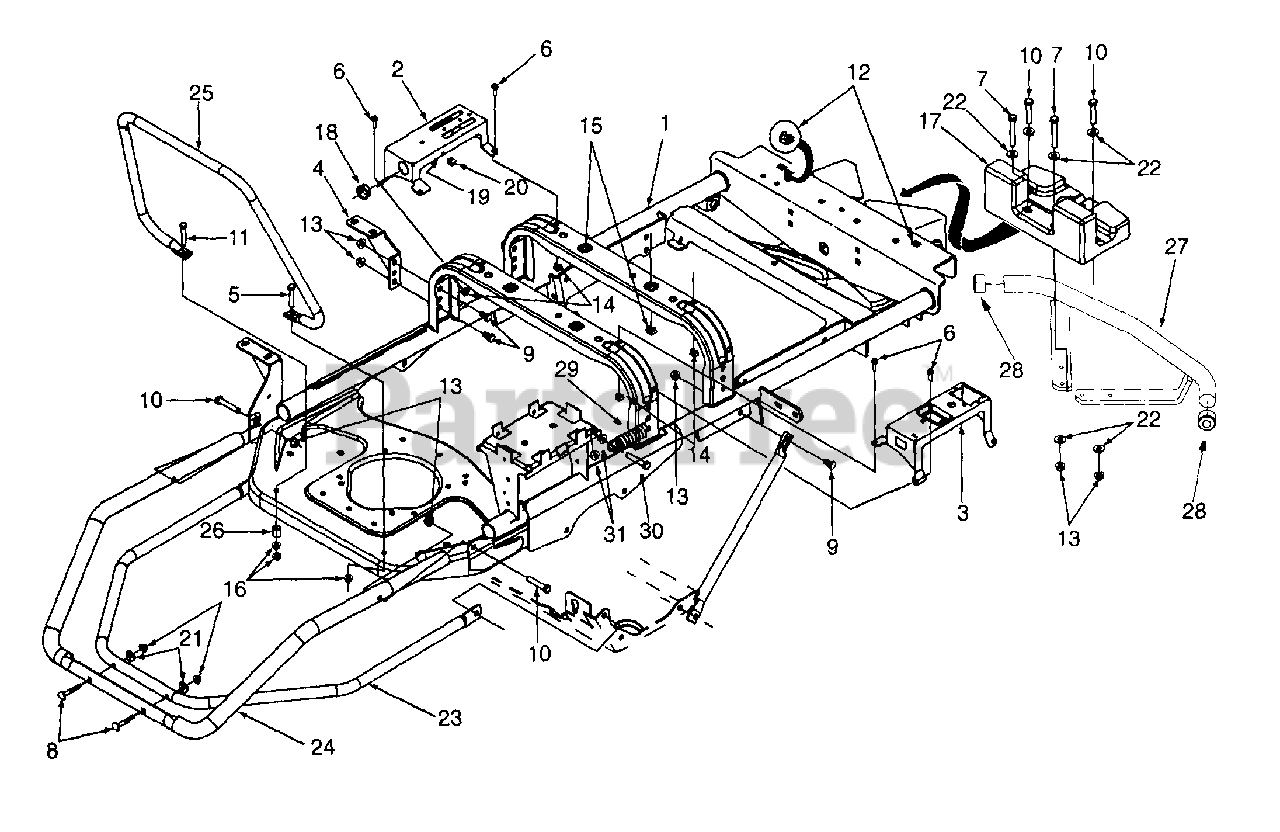

Z-16 (53BA1A3G190) - White Outdoor 42" Zero-Turn Mower (1999) Frame And Attachments Parts Diagram

42" Zero-Turn Mower

Frame And Attachments Parts Diagram

  • Title

1

White Outdoor 603-0258B

Frame

Variations

White Outdoor 603-0258B-0498

No Longer Available FRAME ASSEMBLY - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 603-0258B-0648

No Longer Available FRAME ASSEMBLY - TECH GRAY (0648)

$

$

Not available

$

$

2

White Outdoor 603-0424

Control Panel LH

Variations

White Outdoor 603-0424-0637

No Longer Available PANEL ASM: CONTROL - POWDER BLACK (0637)

$

$

Not available

$

$

3

White Outdoor 603-0425

Control Panel RH

Variations

White Outdoor 603-0425-0637

No Longer Available PANEL ASM CONT. R - POWDER BLACK (0637)

$

$

Not available

$

$

4

White Outdoor 703-2783

Fuel Tank Mounting Bracket

Variations

White Outdoor 703-2783-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 703-2783-0637

No Longer Available BRACKET-FUEL TANK - POWDER BLACK (0637)

$

$

Not available

White Outdoor 703-2783-0648

Bracket, Fuel Tank Mounting - TECH GRAY (0648)

$

$

Not available

$

$

5

White Outdoor 710-0376

Hex Cap Screw 5/16-18 x 1.0

$3.99

$

In Stock, Qty 20+

0

6

White Outdoor 710-0642

Hex Washer Screw 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 710-0521

Hex Cap Screw

$5.49

$

In Stock, Qty 11

0

8

White Outdoor 710-1174

Curved Carriage Screw 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

9

White Outdoor 710-0216

Hex Cap Screw 3/8-16 x 3/4

$4.49

$

In Stock, Qty 14

0

10

White Outdoor 710-0859

Hex Cap Screw 3/8-16 x 2.5

$6.99

$

In Stock, Qty 17

0

11

White Outdoor 710-3180

Hex Cap Screw 5/16-18 x 1.75

$5.49

$

In Stock, Qty 20+

0

12

White Outdoor 712-0251

Retainer Nut 3/8-16

$

$

Not available

13

White Outdoor 712-0431

Hex Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

14

White Outdoor 712-0453

Retainer Nut 1/4-20

$

$

Not available

15

White Outdoor 712-0455

Retainer Nut 3/8-16

$

$

Not available

16

White Outdoor 712-3004A

Hex Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

17

White Outdoor 719-3130

Frame Counter Weight

Variations

White Outdoor 719-3130-0637

No Longer Available WEIGHT-FRAME COUNT - POWDER BLACK (0637)

$

$

Not available

$

$

18

White Outdoor 723-3042

Snap Bushing

$4.49

$

In Stock, only 1 left!

0

19

White Outdoor 728-0117

Pop Rivet

$3.99

$

Usually ships in 3-6 days

0

20

White Outdoor 732-0830

Spring Clip
(Superseded to 932-0830)

$

$

Not available

21

White Outdoor 736-0451

Saddle Washer

$4.49

$

In Stock, Qty 11

0

22

White Outdoor 736-3004

Flat Washer .406 ID x .875 OD

$4.99

$

In Stock, Qty 6

0

23

White Outdoor 749-3061

Lower Tube Bumper

Variations

White Outdoor 749-3061-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 749-3061-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

White Outdoor 749-3061-0648

No Longer Available BMPR TUBE LWR - TECH GRAY (0648)

$

$

Not available

$

$

24

White Outdoor 749-3062

Upper Tube Bumper

Variations

White Outdoor 749-3062-0498

No Longer Available BMPR:TUBE:UPPER - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 749-3062-0637

No Longer Available BMPR:TUBE:UPPER - POWDER BLACK (0637)

$

$

Not available

White Outdoor 749-3062-0648

BMPR:TUBE:UPPER - TECH GRAY (0648)

$

$

Not available

$

$

25

White Outdoor 749-3082

Engine Support Tube

Variations

White Outdoor 749-3082-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

26

White Outdoor 750-3200

Spacer

$

$

Not available

27

White Outdoor 603-0620

Front Bumper

Variations

White Outdoor 603-0620-0498

No Longer Available BUMPER ASSY-FRONT - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 603-0620-0648

No Longer Available BUMPER ASSY-FRONT - TECH GRAY (0648)

$

$

Not available

$

$

28

White Outdoor 726-0298

End Cap

$

$

Not available

29

UNKNOWN

$

$

Not available

30

UNKNOWN

$

$

Not available

31

UNKNOWN

$

$

Not available
