Z-16 (53BA1A3G190) - White Outdoor 42" Zero-Turn Mower (1999) 42" Deck Drive & Spindle Assembly Parts Diagram

42" Zero-Turn Mower

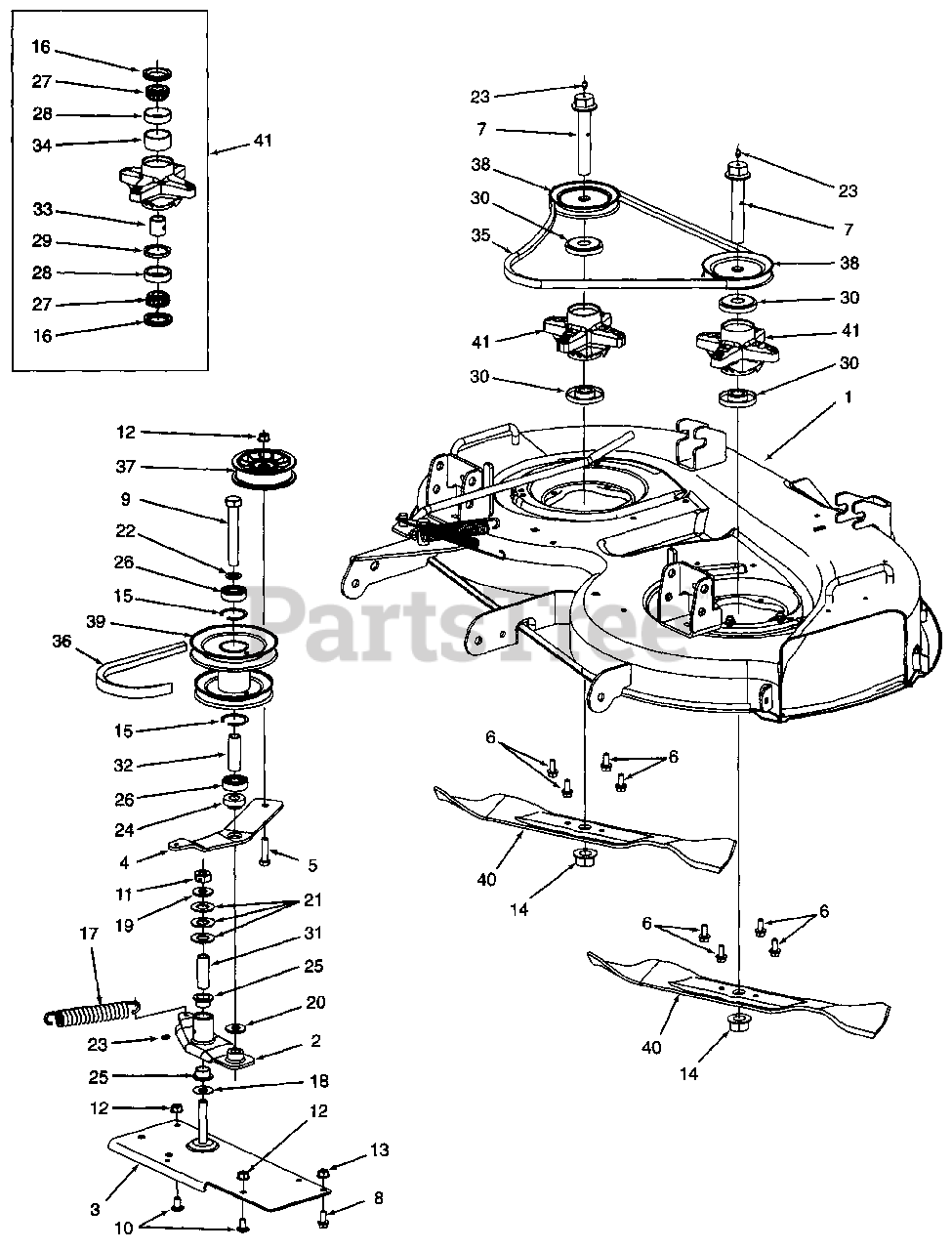

42" Deck Drive & Spindle Assembly Parts Diagram

  • Title

1

White Outdoor 603-0316

Housing Ass'y, 42" Mower Deck

Variations

White Outdoor 603-0316-0637

No Longer Available DECK ASM SHELL 42 - POWDER BLACK (0637)

$

$

Not available

White Outdoor 603-0316-0648

No Longer Available DECK ASM SHELL 42 - TECH GRAY (0648)

$

$

Not available

$

$

2

White Outdoor 603-0581

Pivot Arm Ass'y, Double Pulley

Variations

White Outdoor 603-0581-0498

ARM ASSY-PIVOT - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 603-0581-0648

ARM ASSY-PIVOT - TECH GRAY (0648)

$

$

Not available

$

$

3

White Outdoor 603-0584

Plate Ass'y, Deck Mounting
(Superseded to 603-0584-0637)

Variations

White Outdoor 603-0584-0637

PLATE ASSY-DECK - POWDER BLACK (0637)

$

$

Not available

$

$

4

White Outdoor 703-3147

Arm, Idler Pivot

Variations

White Outdoor 703-3147-0637

ARM-IDLER PIVOT - POWDER BLACK (0637)

$

$

Not available

White Outdoor 703-3147-0648

ARM-IDLER PIVOT - TECH GRAY (0648)

$

$

Not available

$

$

5

White Outdoor 710-0520

Screw, Hex Cap, 3/8-16 x .75 GR5

$4.49

$

In Stock, Qty 6

0

6

White Outdoor 710-1260

Screw, Hex Wash Hd TT Tapp 5/16-18 x .75
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 710-1336

Bolt, Spindle, 3/4-16 x 4.25
(Superseded to 710-1336A)

$24.99

$

In Stock, Qty 8

0

8

White Outdoor 710-3008

Screw, Hex Cap, 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 710-3151

Screw, Hex Cap, 5/16-18 x 4.25 GR5

$20.99

$

In Stock, Qty 12

0

10

White Outdoor 710-3178

Bolt, Carriage, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 712-0239

Nut, Hex Center Lock, 1/2-20

$5.99

$

In Stock, Qty 20+

0

12

White Outdoor 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

13

White Outdoor 712-3004A

Nut, Hex Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

White Outdoor 712-3078

Nut, Hex Flange, 3/4-16

$9.99

$

In Stock, Qty 20+

0

15

White Outdoor 716-3020

Ring, Internal Snap
(Superseded to 916-3020)

$4.99

$

In Stock, Qty 20+

0

16

White Outdoor 721-3018

Seal, Oil. 1.25 x 1.874 x .25
(Superseded to 921-3018A)

$8.49

$

In Stock, Qty 20+

0

17

White Outdoor 732-0850

Spring, Extension, 1.0 OD x 6.14
(Superseded to 932-0850)

$24.99

$

In Stock, only 4 left!

0

18

White Outdoor 736-0100

Washer, Flat, .513 x 1.25 x .036

$6.99

$

In Stock, Qty 7

0

19

White Outdoor 736-0179

Washer, Flat, .5 x 1.25 x .10

$4.99

$

In Stock, only 2 left!

0

20

White Outdoor 736-0187

Washer, Flat, .64 x 1.24 x .06 Hdn

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 736-0188

Washer, Flat, .76 x 1.49 x .06 Hdn

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 736-0290

Washer, Flat, 5/8 x 1.0 x .063

$6.99

$

In Stock, Qty 20+

0

23

White Outdoor 737-3000

Fitting, 3/16 Drive Lube
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

24

White Outdoor 738-0988

Spacer, Shoulder

$

$

Not available

25

White Outdoor 741-0338

Bearing, Flange, 3/4 ID x .52

$9.49

$

In Stock, only 2 left!

0

26

White Outdoor 741-0524

Bearing, Ball, .625 x 1.57 x .47
(Superseded to 941-0524A)

$23.99

$

In Stock, Qty 20+

0

27

White Outdoor 741-3028

Cone, Bearing
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 19

0

28

White Outdoor 741-3029

Cup, Bearing
(Superseded to 941-04299)

$6.99

$

In Stock, Qty 20+

0

29

White Outdoor 741-3031

Spacer, Bearing
(Superseded to 941-3031)

$

$

Not available

30

White Outdoor 748-3065

Spacer, Deck Spindle
(Superseded to 748-3065A)

$13.99

$

In Stock, Qty 14

0

31

White Outdoor 750-0656

Spacer, .50 x. 75 x 2.25

$11.99

$

In Stock, only 1 left!

0

32

White Outdoor 750-3164

Spacer, .635 x 2.0

$16.99

$

Usually ships in 3-6 days

0

33

White Outdoor 750-3190

Spacer, Bearing, .78 x .963 x .7777
(Superseded to 750-3190A)

$13.99

$

In Stock, only 2 left!

0

34

White Outdoor 750-3191

Spacer, Bearing 1.615 x 1.86 x .8427

$40.99

$

Usually ships in 3-6 days

0

35

White Outdoor 754-0347

Belt, Spindle, A-Section x 63.2
(Superseded to 954-0347)

$

$

Not available

36

White Outdoor 754-3091

Belt, PTO, B-Section x 69
(Superseded to 954-3091)

$94.99

$

Usually ships in 3-6 days

0

37

White Outdoor 756-0627

Pulley, Flat Idler, 3.5 OD
(Superseded to 756-0627D)

$30.99

$

In Stock, Qty 20+

0

38

White Outdoor 756-3089

V-Pulley, 4.0 Dia

$36.99

$

Usually ships in 3-6 days

0

39

White Outdoor 756-3100

Pulley, Double 5.0 OD x 5.56 OD

Note: Use with P/N 717-3389 PTO

$

$

Not available

White Outdoor 756-3103

Pulley, Double 4.66 OD x 5.06 OD

Note: Use with P/N 717-3460 PTO

$178.99

$

In Stock, only 1 left!

0

40

White Outdoor 759-3830

Blade, 3 in One, 21.20 Lg
(Superseded to 742P3033)

$34.99

$

In Stock, Qty 20+

0

41

White Outdoor 918-3129

Spindle Assembly, Blade
(Superseded to 918-3129C)

Note: (Includes Ref Nos 16, 27, 28, 29, 33 & 34)

$112.99

$

In Stock, Qty 20+

0

White Outdoor 717-3389

Clutch PTO
(Superseded to 917-3389)

$642.99

$

Usually ships in 3-6 days

0

White Outdoor 717-3460

Clutch PTO
(Superseded to 917-3460)

$

$

Not available
