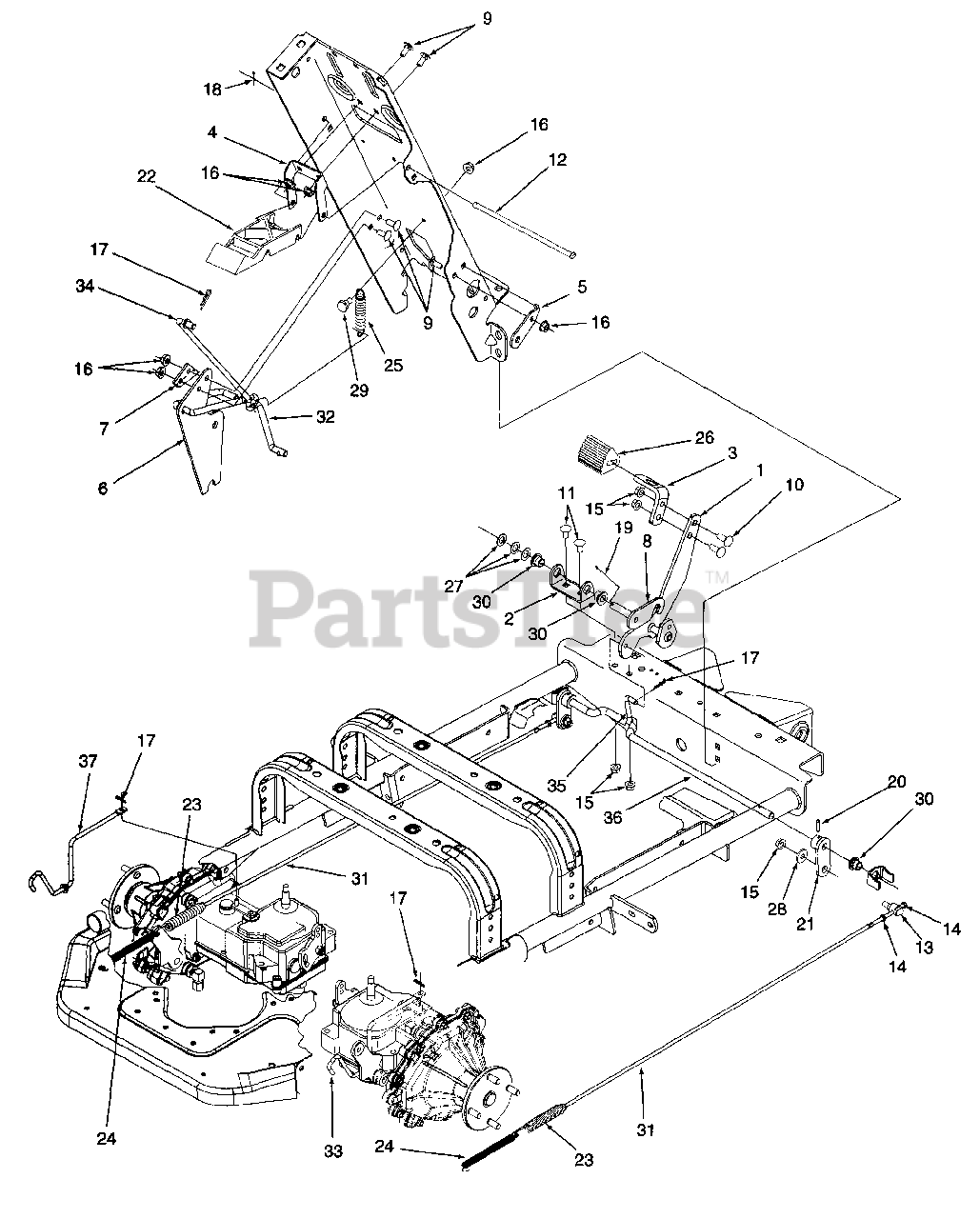

Z-16 (53AC225G190) - White Outdoor 42" Zero-Turn Mower Parking Brake & Linkage Parts Diagram

42" Zero-Turn Mower

Parking Brake & Linkage Parts Diagram

  • Title

1

White Outdoor 603-0461A

Shaft, Park Brake Pedal

Variations

White Outdoor 603-0461A-0637

No Longer Available SHAFT-PARK BRAKE P - POWDER BLACK (0637)

$

$

Not available

$

$

2

White Outdoor 703-2806

Bracket, Pedal Mounting

Variations

White Outdoor 703-2806-0637

No Longer Available BRKT MGT. PEDAL - POWDER BLACK (0637)

$

$

Not available

$

$

3

White Outdoor 703-2807B

Bracket, Foot Pad Mounting

Variations

White Outdoor 703-2807B-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

4

White Outdoor 703-2856

Bracket, Park Brake

Variations

White Outdoor 703-2856-0637

No Longer Available BRKT BRAKE PARK - POWDER BLACK (0637)

$

$

Not available

$

$

5

White Outdoor 703-2857

Bracket, Rod Retainer

$

$

Not available

6

White Outdoor 703-3073

Plate, Support

Variations

White Outdoor 703-3073-0637

No Longer Available PLATE-SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

7

White Outdoor 703-3074

Bracket, Brake Rod Stop

$

$

Not available

8

White Outdoor 703-3076

Plate, Brake Link

Variations

White Outdoor 703-3076-0637

No Longer Available PLATE-BRAKE LINK - POWDER BLACK (0637)

$

$

Not available

$

$

9

White Outdoor 710-0134

Bolt, Carriage, 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 710-3168

Bolt, Carriage, 3/8-16 x 1.0 GR5

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 710-3178

Bolt, Carriage, 3/8-16 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 711-1088

Pin, Clevis, 1/4 x 6.65

$

$

Not available

13

White Outdoor 711-3357

Ferrule

$

$

Not available

14

White Outdoor 712-0314

Nut, Hex Jam, 1/4-28

$3.99

$

Usually ships in 3-6 days

0

15

White Outdoor 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

16

White Outdoor 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 17

0

17

White Outdoor 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 714-0127

Pin, Cotter, 1/16 x .75

$

$

Not available

19

White Outdoor 714-3004

Pin, Cotter, 3/32 x 1.25

$4.99

$

In Stock, Qty 9

0

20

White Outdoor 715-0120

Pin, Spiral, 3/16 x 1.0

$10.99

$

In Stock, only 1 left!

0

21

White Outdoor 718-3090

Arm, Brake

$

$

Not available

22

MTD 731-3165

Lever, Park Brake Engagement
(Superseded to 759-04158)

$

$

Not available

23

White Outdoor 732-0463

Spring, Extension, .75 O.D. x 5.0
(Superseded to 732-0463A)

$18.99

$

Usually ships in 3-6 days

0

24

White Outdoor 732-0800

Spring, Extension

$

$

Not available

25

White Outdoor 732-0857

Spring, Extension, .5 O.D. x 2.25

$

$

Not available

26

White Outdoor 735-0251

Foot Pad, Brake

$

$

Not available

27

White Outdoor 736-0160

Washer, Flat, .536 x .930 x .05

$4.49

$

In Stock, only 2 left!

0

28

White Outdoor 736-0258

Washer, Flat, .385 x 1.0 x .135

$4.49

$

Usually ships in 3-6 days

0

29

White Outdoor 738-0137A

Bolt, Shoulder, .340 x .285:1/4-20

$10.99

$

In Stock, Qty 10

0

30

White Outdoor 741-0324

Bearing, Hex Flange, .506 I.D
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 5

0

31

White Outdoor 747-3266A

Rod, Brake

$

$

Not available

32

White Outdoor 747-3272

Rod, Park Brake Retaining

$

$

Not available

33

White Outdoor 747-3284

Rod, Hydro Pump Release RH

$

$

Not available

34

White Outdoor 747-3293

Rod, Park Brake

$

$

Not available

35

White Outdoor 747-3317

Rod, Park Brake Support

$

$

Not available

36

White Outdoor 747-3318

Rod, Brake Connecting

$

$

Not available

37

White Outdoor 747-3363

Rod, Hydro Pump Release LH

$

$

Not available
