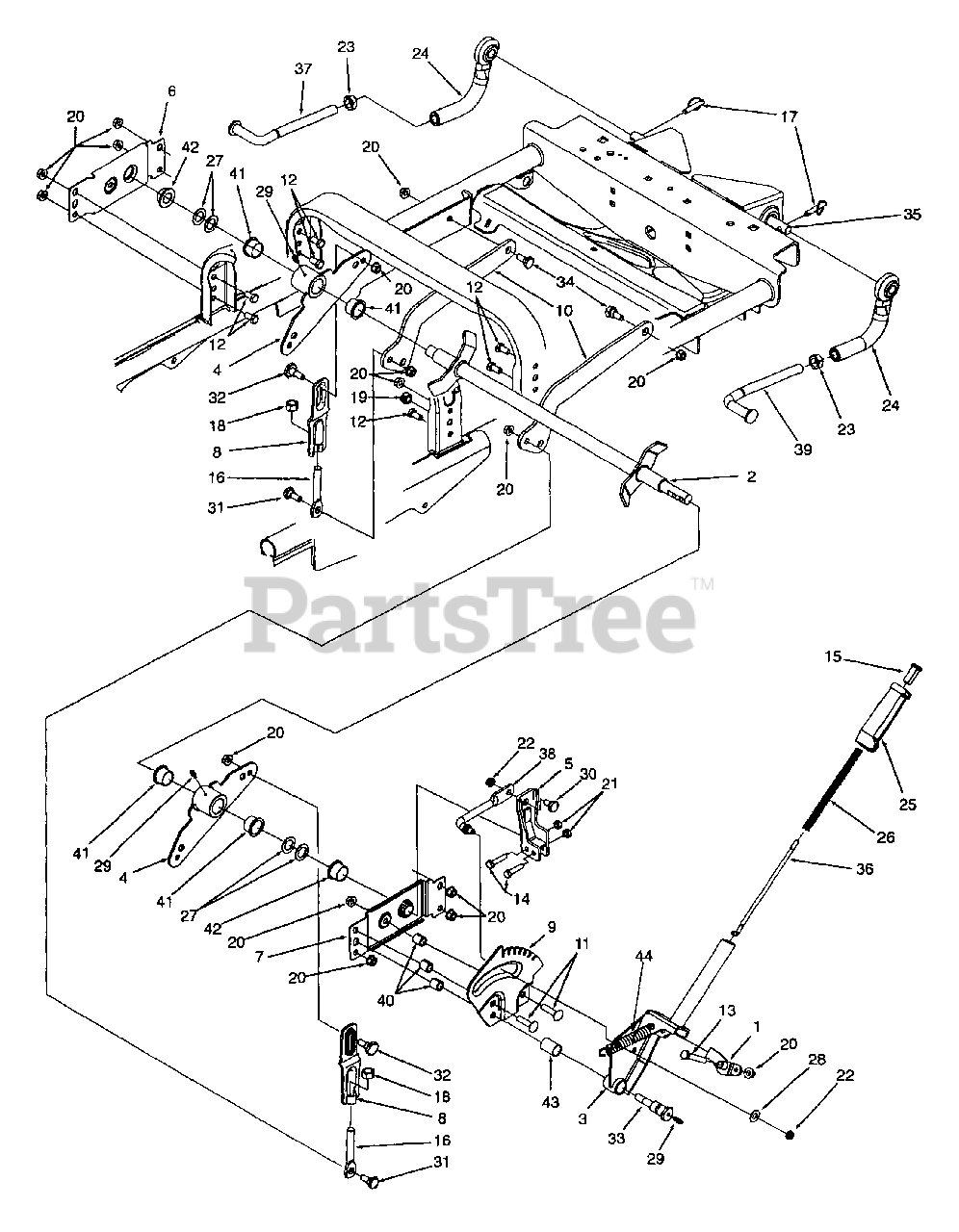

Z-16 (53AC225G190) - White Outdoor 42" Zero-Turn Mower Lift System & Linkage Parts Diagram

42" Zero-Turn Mower

Lift System & Linkage Parts Diagram

  • Title

1

White Outdoor 603-0257

Fork, Lift

Variations

White Outdoor 603-0257-0637

FORK ASSY-LIFT - POWDER BLACK (0637)

$94.99

$

In Stock, only 1 left!

0

$94.99

$

In Stock, only 1 left!

0

2

White Outdoor 603-0313

Shaft, Lift
(Superseded to 603-0313-0637)

Variations

White Outdoor 603-0313-0637

SHAFT ASSY: LIFT - POWDER BLACK (0637)

$

$

Not available

$

$

3

White Outdoor 603-0327

Handle Ass'y, Lift,

Note: Includes Ref. No. 43

Variations

White Outdoor 603-0327-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 603-0327-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

White Outdoor 603-0327-0648

Handle Ass'y, Lift - TECH GRAY (0648)

$

$

Not available

$

$

4

White Outdoor 603-0370

Link Ass'y, Pivot,

Note: Includes Ref. Nos. 29 and 41 (2)

Variations

White Outdoor 603-0370-0637

LINK ASSY:PIVOT - POWDER BLACK (0637)

$45.99

$

In Stock, only 1 left!

0

White Outdoor 603-0370-0498

LINK ASSY:PIVOT - OLD CUB YELLOW (0498)

$

$

Not available

$

$

5

White Outdoor 603-0401

Arm, Lift
(Superseded to 603-0401-0637)

Variations

White Outdoor 603-0401-0637

ARM ASSY-LIFT - POWDER BLACK (0637)

$

$

Not available

$

$

6

White Outdoor 603-0422

Bracket, Shaft Mtg. LH

Note: Includes Ref. No. 42

$

$

Not available

7

White Outdoor 603-0423

Bracket, Shaft Mtg. RH

Note: Includes Ref. No. 42

$

$

Not available

8

White Outdoor 703-2621

Link, Adjustable Deck Lift

Variations

White Outdoor 703-2621-0637

No Longer Available LINK LIFT ADJ DECK - POWDER BLACK (0637)

$

$

Not available

$

$

9

White Outdoor 703-2772

Plate, Deck Height Adjustment

Variations

White Outdoor 703-2772-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 703-2772-0648

Plate, Deck Height Adjustment - TECH GRAY (0648)

$

$

Not available

$

$

10

White Outdoor 703-2780

Link, Parallel Lift

$

$

Not available

11

White Outdoor 710-0431

Bolt, Carriage, 3/8-16 x 1.5

$4.99

$

Usually ships in 3-6 days

0

12

White Outdoor 710-0216

Screw, Hex Cap, 3/8-16 x .75 GR5

$4.49

$

In Stock, Qty 15

0

13

White Outdoor 710-3011

Screw, Hex Cap, 3/8-16 x 2-1/4

$6.99

$

In Stock, Qty 20+

0

14

White Outdoor 710-3083

Screw, Hex Cap, 5/16-18 x 1.38 GR5

$4.49

$

Usually ships in 3-6 days

0

15

White Outdoor 711-0642A

Button, Handle

$7.99

$

In Stock, Qty 12

0

16

White Outdoor 711-0773

Link, Eye Bolt Adjustment

$

$

Not available

17

White Outdoor 711-3266

Clevis Pin, w/ Detent Ball

$15.99

$

In Stock, Qty 7

0

18

White Outdoor 712-0206

Nut, Hex, 1/2-13

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 712-0290

Nut, Hex Center Lock, 7/16-14

$4.99

$

In Stock, Qty 11

0

20

White Outdoor 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

21

White Outdoor 712-3009

Nut, Hex Center Lock, 5/16-18

$6.99

$

In Stock, Qty 20+

0

22

White Outdoor 712-3020

Nut, Hex Insert Lock Jam 3/8-16
(Superseded to 912-3020)

$6.49

$

In Stock, Qty 10

0

23

White Outdoor 712-3056

Nut, Hex Jam, 5/8-18

$4.99

$

In Stock, Qty 13

0

24

White Outdoor 723-0453

Link, Parallel

$

$

Not available

25

White Outdoor 731-3158

Grip, Deck Lift Handle

$17.99

$

Usually ships in 3-6 days

0

26

White Outdoor 732-3097

Spring, Compression

$14.99

$

In Stock, only 4 left!

0

27

White Outdoor 736-0287

Washer, Flat, .79 x 1.24 x .06

$4.49

$

In Stock, Qty 20+

0

28

White Outdoor 736-0300

Washer, Flat, .406 x .875 x .06

$4.49

$

In Stock, Qty 20+

0

29

White Outdoor 737-0280

Fitting, Grease

$7.99

$

In Stock, Qty 8

0

30

White Outdoor 738-0183

Bolt, Shoulder
(Superseded to 938-0183)

$

$

Not available

31

White Outdoor 738-0380

Bolt, Shoulder

$7.99

$

In Stock, only 1 left!

0

32

White Outdoor 738-0507B

Bolt, Shoulder

$4.49

$

In Stock, Qty 20+

0

33

White Outdoor 738-3150

Bolt, Lift Handle Shoulder

$

$

Not available

34

White Outdoor 738-3151

Bolt, Shoulder
(Superseded to 738-05008)

$8.49

$

In Stock, only 1 left!

0

35

White Outdoor 747-3255

Rod, Parallel Link Front Mtg.

$

$

Not available

36

White Outdoor 747-3267

Rod, Lift Handle

$

$

Not available

37

White Outdoor 747-3275

Rod, Connecting LH

$

$

Not available

38

White Outdoor 747-3276

Rod, Lift Link

$

$

Not available

39

White Outdoor 747-3286

Rod, Connecting RH

$

$

Not available

40

White Outdoor 750-3200

Spacer, .448 x .688 x .673

$

$

Not available

41

White Outdoor 741-0229

Bearing, Flange, 1.0 ID

$

$

Not available

42

White Outdoor 741-0376

Bearing, Flange, .75 ID x 1.0 OD
(Superseded to 941-0376)

$8.99

$

In Stock, Qty 7

0

43

White Outdoor 741-3081

Bearing, Sleeve, .75 x .875 x 1.25

$

$

Not available

44

White Outdoor 732-0556

Spring
(Superseded to 932-0556)

$21.99

$

Usually ships in 3-6 days

0
