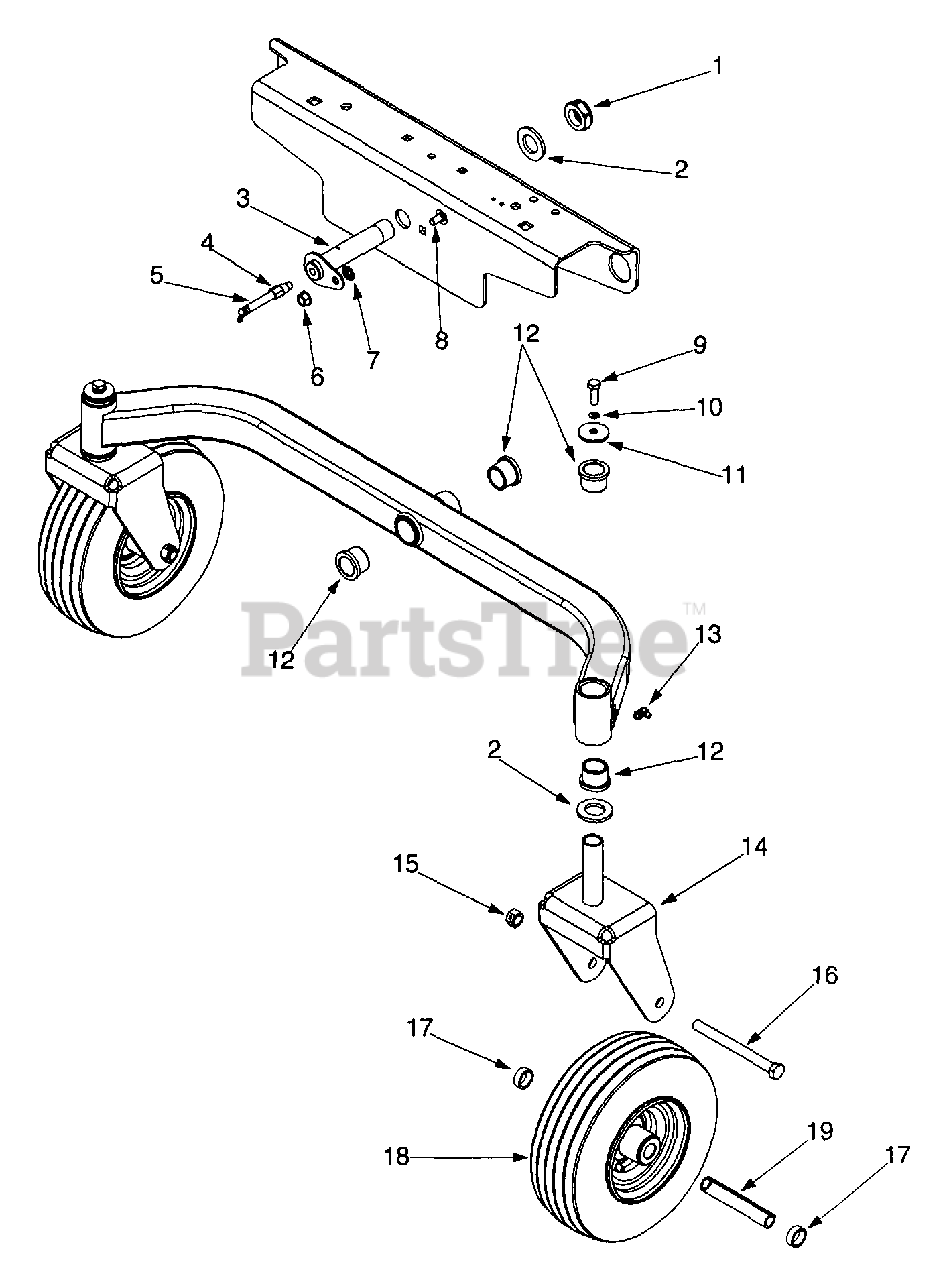

Z-16 (53AC225G190) - White Outdoor 42" Zero-Turn Mower Front Axle & Tire Assembly II Parts Diagram

42" Zero-Turn Mower

Front Axle & Tire Assembly II Parts Diagram

  • Title
1

White Outdoor 712-3075

Hex Lock Nut, 1.0-14
(Superseded to 712-05008)

$14.99

$

In Stock, only 1 left!

0

2

$8.99

$

In Stock, Qty 14

0

3

White Outdoor 603-0389A

Pin Ass'y, Pivot

$

$

Not available

4

White Outdoor 737-3090

Adapter, 1/8 NPTF x 1/8 NPTF
(Superseded to 937-3090)

$

$

Not available

5

White Outdoor 737-3072

Grease Fitting, 65° w/Extension

$

$

Not available

6

White Outdoor 712-0431

Hex Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

7

White Outdoor 712-0229

Push Nut, 3/8 ID

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 710-3178

Carriage Bolt, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 710-0514

Hex Cap Screw, 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 736-0169

Lock Washer 3/8

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 712-0239

Hex Center Lock Nut, 1/2-20

$5.99

$

In Stock, Qty 20+

0

12

White Outdoor 731-0374

Flange Bearing 1.0 ID
(Superseded to 931-0374)

$7.49

$

In Stock, only 3 left!

0

13

White Outdoor 737-0280

Grease Fitting

$7.99

$

In Stock, Qty 8

0

14

White Outdoor 603-0363

Castor Wheel Bracket
(Superseded to 603-0363A)

Variations

White Outdoor 603-0363-0498

Caster Wheel Bracket - OLD CUB YELLOW (0498)

$114.99

$

Usually ships in 3-6 days

0

White Outdoor 603-0363-0637

Caster Wheel Bracket - POWDER BLACK (0637)

$114.99

$

Usually ships in 3-6 days

0

White Outdoor 603-0363-0648

Caster Wheel Bracket - TECH GRAY (0648)

$114.99

$

Usually ships in 3-6 days

0

$114.99

$

Usually ships in 3-6 days

0

15

White Outdoor 712-0239

Hex Center Lock Nut 1/2-20

$5.99

$

In Stock, Qty 20+

0

16

White Outdoor 710-0506

Hex Cap Screw, 1/2-20 x 5.5

$10.99

$

In Stock, only 2 left!

0

17

White Outdoor 750-0456

Spacer, .79 ID x .347 Lg

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 634-3164

Wheel Comp 11.0 x 4.0 x 5.0

$

$

Not available

19

White Outdoor 750-3197

Wheel Spacer
(Superseded to 750-3197A)

$21.99

$

In Stock, Qty 13

0
