Z-16 (53AC225G190) - White Outdoor 42" Zero-Turn Mower Drive Controls & Support Tower Parts Diagram

42" Zero-Turn Mower

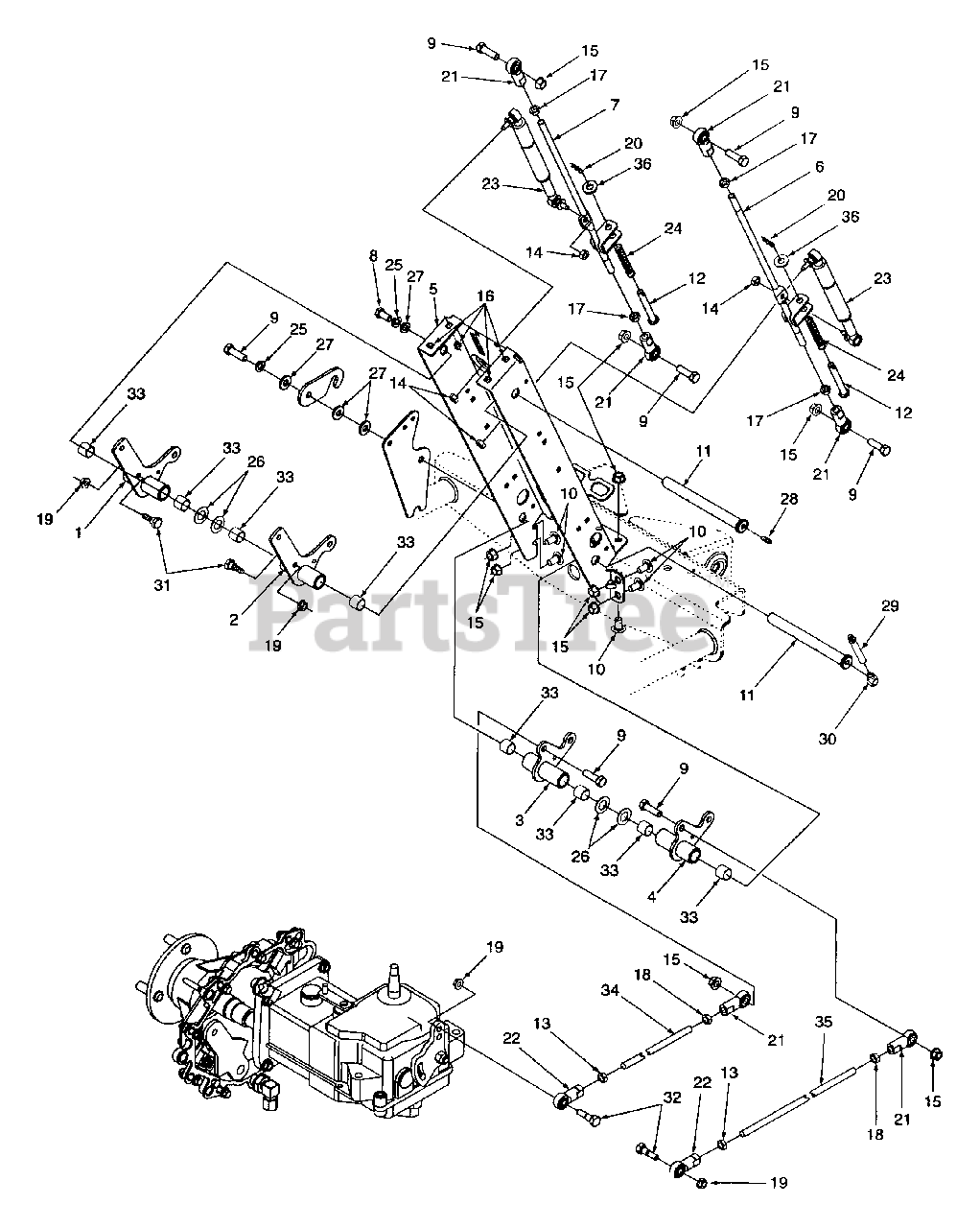

Drive Controls & Support Tower Parts Diagram

  • Title

1

White Outdoor 603-0340

Bellcrank Ass'y, Upper LH

Note: Includes Ref. No. 33 (2)

Variations

White Outdoor 603-0340-0637

BELLCRANK ASSY:W/BEARING - POWDER BLACK (0637)

$

$

Not available

$

$

2

White Outdoor 603-0341

Bellcrank Ass'y, Upper RH

Note: Includes Ref. No. 33 (2)

Variations

White Outdoor 603-0341-0637

BELLCRANK ASSY:W/BEARING - POWDER BLACK (0637)

$

$

Not available

$

$

3

White Outdoor 603-0342

Bellcrank Ass'y, Lower LH

Note: Includes Ref. No. 33 (2)

Variations

White Outdoor 603-0342-0637

BELLCRANK ASSY:W/BEARING - POWDER BLACK (0637)

$

$

Not available

$

$

4

White Outdoor 603-0343

Bellcrank Ass'y, Lower RH
(Superseded to 603-0343-0637)

Note: Includes Ref. No. 33 (2)

Variations

White Outdoor 603-0343-0637

BELLCRANK ASSY:W/BEARING - POWDER BLACK (0637)

$

$

Not available

$

$

5

White Outdoor 603-0364-0498

Support Ass'y, Tower

$

$

Not available

6

White Outdoor 603-0410

Rod Ass'y, Control RH

$

$

Not available

7

White Outdoor 603-0411

Rod Ass'y, Control LH

$

$

Not available

8

White Outdoor 710-3000

Screw, Hex Cap 3/8-16 x 3/4 GR5
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 14

0

9

White Outdoor 710-3005

Screw, Hex Cap 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 710-3178

Bolt, Carriage, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 711-1111

Shaft, Control

$

$

Not available

12

White Outdoor 711-1124

Pin, .374 Dia. x 2.88 Lg

$

$

Not available

13

White Outdoor 712-0312

Nut, Hex Jam LH Thrd, 3/8-24
(Superseded to 712-0312A)

$3.99

$

Usually ships in 3-6 days

0

14

White Outdoor 712-0365

Nut, Hex Center Lock, M8 GR 8.8

$

$

Not available

15

White Outdoor 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

16

White Outdoor 712-0453

Nut, Retainer, 1/4-20

$

$

Not available

17

White Outdoor 712-0711

Nut, Hex Jam, 3/8-24

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 712-3001

Nut, Hex Jam, 3/8-24
(Superseded to 912-3001)

$6.99

$

In Stock, Qty 17

0

19

White Outdoor 712-3004A

Nut, Hex Flange Lock, 5/16-18 GR5

$3.99

$

In Stock, Qty 20+

0

20

White Outdoor 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 723-0420

Rod End, Spherical RH, 3/8-24
(Superseded to 923-0420)

$

$

Not available

22

White Outdoor 723-0421

Rod End, Spherical LH, 3/8-24
(Superseded to 923-0421)

$

$

Not available

23

White Outdoor 727-3113

Cylinder, Damper

$207.99

$

Usually ships in 3-6 days

0

24

White Outdoor 732-3084

Spring, Compression

$

$

Not available

25

White Outdoor 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

26

White Outdoor 736-0539

Washer, Thrust, .625 x 1.12 x .06

$

$

Not available

27

White Outdoor 736-3004

Washer, Flat, .406 x .875 x .105

$4.99

$

In Stock, Qty 6

0

28

White Outdoor 737-0280

Fitting, Grease ,

$7.99

$

In Stock, Qty 8

0

29

White Outdoor 737-3072

Fitting, Grease w/Tube

$

$

Not available

30

White Outdoor 737-3073

Adapter, 90° 1/4-20 Thrd

$

$

Not available

31

White Outdoor 738-0296

Bolt, Shoulder, .437 Dia. x .268

$4.49

$

In Stock, Qty 20+

0

32

White Outdoor 738-3153

Bolt, Shoulder

$

$

Not available

33

White Outdoor 741-3063

Bearing, Sleeve, .628 x .75 x .625

$17.99

$

Usually ships in 3-6 days

0

34

White Outdoor 747-3281

Rod, Control, LH 31-5/8 Lg

$

$

Not available

35

White Outdoor 747-3282

Rod, Control, RH 35-3/8 Lg

$

$

Not available

36

White Outdoor 736-3004

Washer, Flat, .406 x .875 x .105

$4.99

$

In Stock, Qty 6

0

White Outdoor 736-0300

Flat Washer .406 ID x .87 x .06

$4.49

$

In Stock, Qty 20+

0
