Z 142 - Husqvarna 42" Zero-Turn Mower (Original) MOWER DECK / CUTTING DECK Parts Diagram

42" Zero-Turn Mower

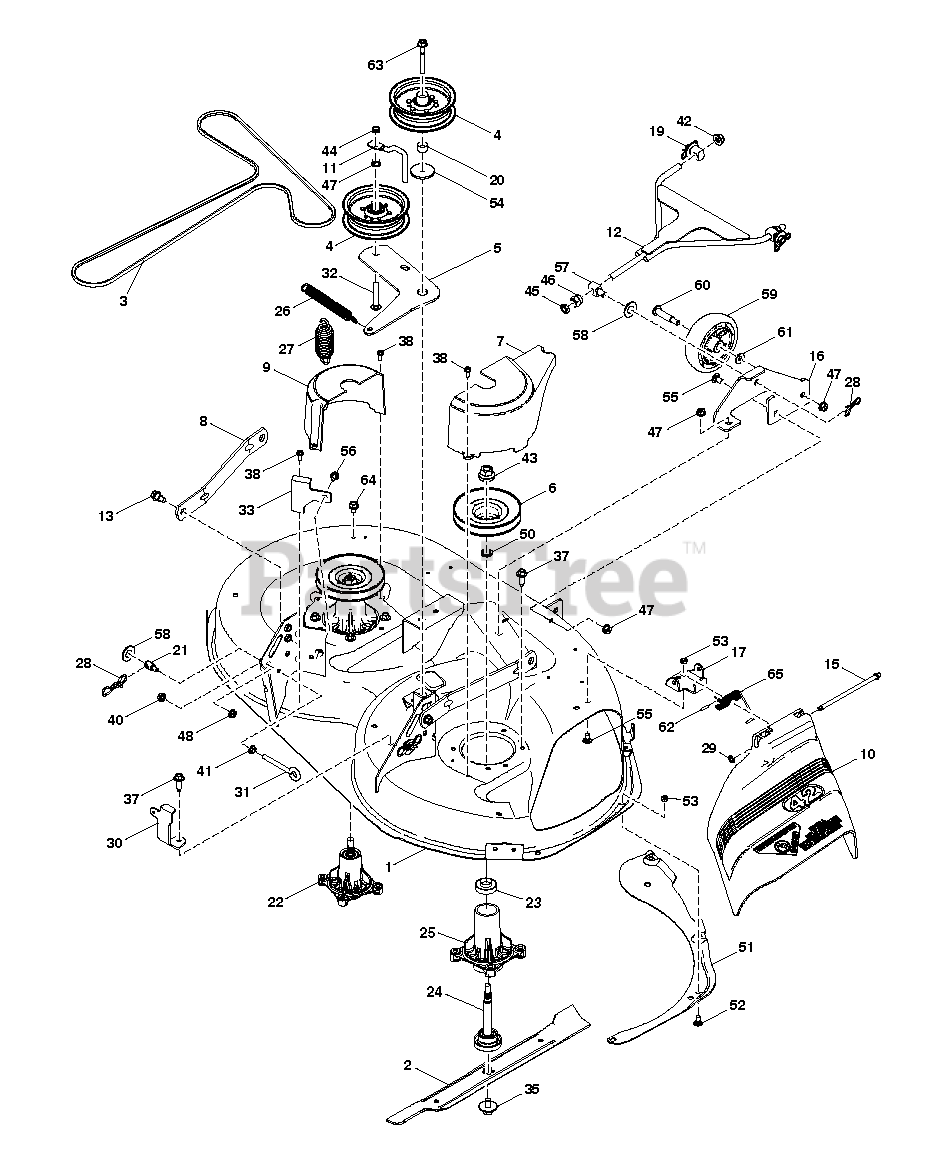

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

16

Husqvarna 594114403

BRACKET.FRONT.SUSPENSION.X668

$24.99

$

Usually ships in 3-10 days

0

44

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532403004

SHIELD.DEFLECTOR.MOWER.42"BLAC

$44.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532192557

BRKT.DEFLECTOR.38"2005+

$9.49

$

In Stock, Qty 8

0

3

Husqvarna 596014801

BELT 42 STAMPED RZ DECK DRIVE

$43.99

$

In Stock, only 1 left!

0

48

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

43

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

4

Husqvarna 532196106

PULLEY.IDLER.2006

$39.99

$

In Stock, Qty 14

0

40

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

53

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

61

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

Note: For 96792480100

$3.49

$

Usually ships in 3-10 days

0

56

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

61

Husqvarna 819121414

WASHER.5/16.FLAT.STE.STD.
(Superseded to 596134901)

Note: For 96792460100

$3.49

$

Usually ships in 3-10 days

0

Husqvarna 532416405

COUPLING.QUICK CONNECT

$10.99

$

In Stock, Qty 6

0

33

Husqvarna 597452703

BRACKET 42 STAMPED RZ LH REAR

Note: Fits 96792480100

$3.49

$

Usually ships in 3-10 days

0

27

Husqvarna 539118762

SPRING

$

$

Not available

13

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

58

Husqvarna 819212113

WASHER
(Superseded to 583609901)

$

$

Not available

52

Husqvarna 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

26

Husqvarna 532197251

SPRING.MOWER.DRIVE.ELECTRIC

$11.99

$

Usually ships in 3-10 days

0

5

Husqvarna 594114602

ARM 42 STAMPED RZ CLUTCHING AR

$14.99

$

Usually ships in 3-10 days

0

33

Husqvarna 596017003

BRCKT.REAR.DECK.UPSTOP.LH.X668

Note: Fits 96792460100, 96792480100

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

9

Husqvarna 594114001

COVER 42 STAMPED RZ LH MANDREL

Note: GREY

$9.49

$

Usually ships in 3-10 days

0

29

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532165723

SPACER.RETAINER.MOWER

$6.99

$

In Stock, only 1 left!

0

31

Husqvarna 539115574

EYE BOLT 5/16 X 3.50

$

$

Not available

50

Husqvarna 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 20+

0

60

Husqvarna 532124842

BOLT M
(Superseded to 532004898)

$

$

Not available

63

Husqvarna 817490644

SCREW.HXWSH.3/8

$

$

Not available

35

Husqvarna 584309301

SCREW.SEMS.7/16-20X1.HEX.HEAD
(Superseded to 532193003)

$8.99

$

Usually ships in 3-10 days

0

64

Husqvarna 817670608

SCREW 3/8-16X1/2

$6.49

$

Usually ships in 3-10 days

0

8

Husqvarna 587140502

ARM.RFIXED.MOWER.SUSPNSIONX431

$6.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532174358

HOUSING, MANDREL 48"

$56.99

$

In Stock, only 3 left!

0

38

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

20

Husqvarna 596014702

SPACER

$2.49

$

Usually ships in 3-10 days

0

37

Husqvarna 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$4.99

$

In Stock, Qty 16

0

47

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

45

Husqvarna 873360700

NUT **
(Superseded to 873610700)

$7.49

$

In Stock, only 4 left!

0

6

Husqvarna 588586601

PULLEY.MANDREL.46"

$34.99

$

In Stock, Qty 11

0

19

Husqvarna 532195263

BUSHING SPHERICAL SUSP. FRONT

Note: For 96792480100

$

$

Not available

46

Husqvarna 532175994

NUT, LIFT LINK 7/16-20
(Superseded to 589464902)

$4.99

$

In Stock, Qty 5

0

11

Husqvarna 532198468

KEEPER.BELT.IDLER.54"T

$17.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

32

Husqvarna 539128101

CARRIAGE BOLT 3/8-16 X

$

$

Not available

55

Husqvarna 872110606

BOLT

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532185263

NEEDS DESCRIPTION

Note: For 96792460100

$

$

Currently unavailable

22

Husqvarna 587125201

MANDREL.W/SPCR.BRG.SHRT.NONRVL

$56.99

$

In Stock, only 4 left!

0

21

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

65

Husqvarna 532197026

SPRING.TORSION.DEFLECT

$10.99

$

In Stock, Qty 20+

0

30

Husqvarna 597452803

BRACKET 42 STAMPED RZ RH REAR

Note: Fits 96792480100

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 588610902

LINK.RZ.FRONT.WELDMENT.E-DIP

$53.99

$

In Stock, only 1 left!

0

59

Husqvarna 589527401

WHEEL.GAUGE.RALLY.NARROW

$11.99

$

In Stock, Qty 8

0

30

Husqvarna 596016903

BRCKT.REAR.DECK.UPSTOP.RH.X668

Note: Fits 96792460100, 96792480100

$7.49

$

Usually ships in 3-10 days

0

24

Husqvarna 587255601

SHAFT
(Superseded to 587125201)

$56.99

$

In Stock, only 4 left!

0

7

Husqvarna 594114101

COVER 42 STAMPED RZ RH MANDREL

$11.99

$

Usually ships in 3-10 days

0

57

Husqvarna 581514301

SWIVEL.TRUNION.LINK.DECK.FRONT

$4.99

$

In Stock, only 1 left!

0

2

Husqvarna 532138971

42" HI-LIFT BLADE

$20.99

$

In Stock, Qty 20+

0

51

Husqvarna 583911401

BAFFLE DECK 42 SD BLACK

$

$

Not available

1

Husqvarna 596973301

KIT.42"DECK.W/DECALS.X668
(Superseded to 598602801)

$398.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539119124

7/16-14 HEX NUT W/NYL RING ZD

$

$

Not available

23

Husqvarna 585323901

BEARING.MANDREL.TOP.EXTENDED

$14.99

$

In Stock, only 2 left!

0
