Z 142 (967924601-00) - Husqvarna 42" Zero-Turn Mower (2018-09) SEAT Parts Diagram

42" Zero-Turn Mower

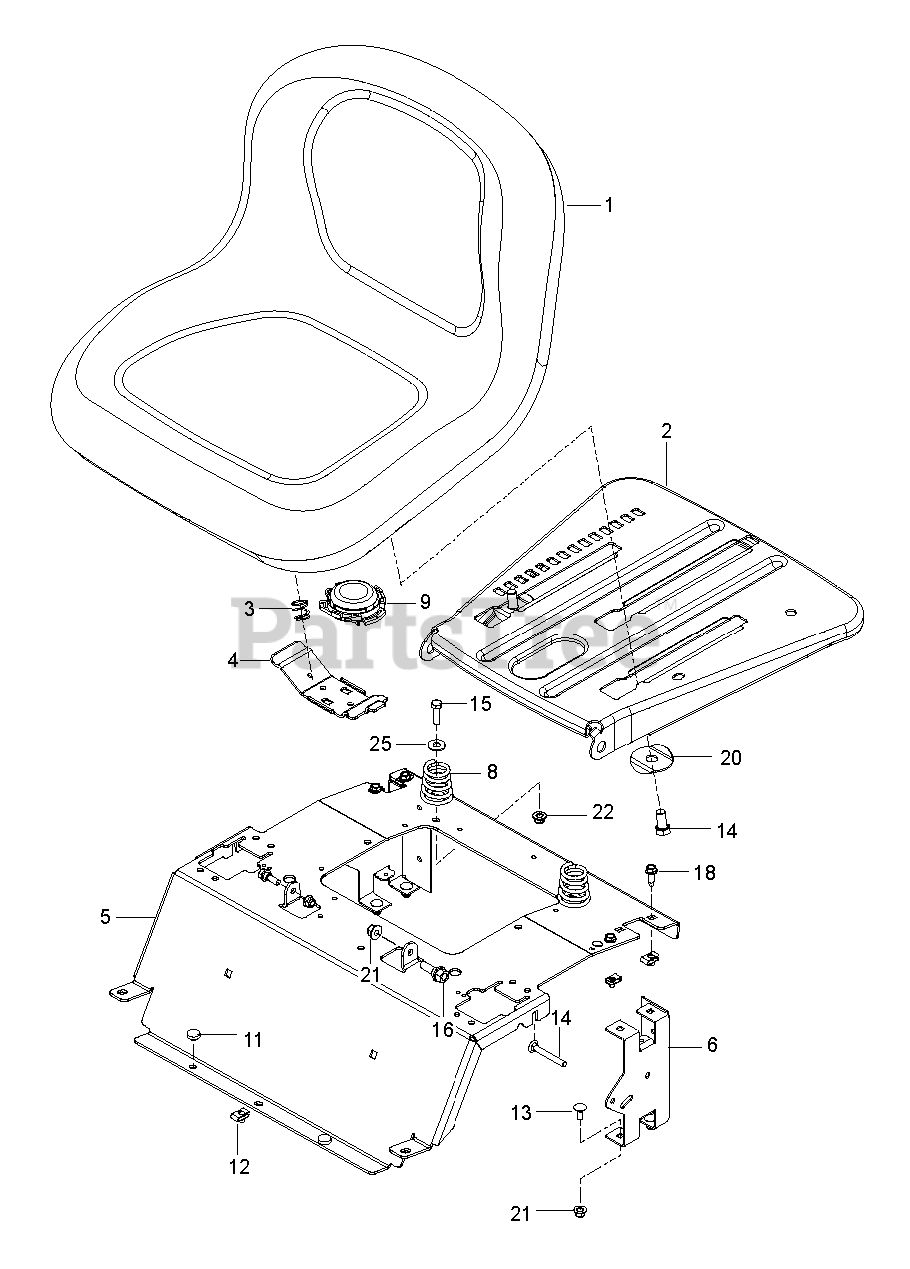

SEAT Parts Diagram

  • Title

1

Husqvarna 532439822

SEAT.TH150.MS498.GRY.HUSQ.TEX

$218.99

$

Usually ships in 3-10 days

0

2

Husqvarna 587232002

PLATE.PNT.SEAT.SLIDE.3PT.EDIP
(Superseded to 596768801)

$56.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532198200

SPRING.LATCH.SEAT.TEX

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 532197661

HANDLE.SLIDE.SEAT.TEX.BLACK

$

$

Not available

5

Husqvarna 589761206

SUPPORT.SEAT.RZ.HUSQ.ORANGE
(Superseded to 589761211)

$125.99

$

Usually ships in 3-10 days

0

6

Husqvarna 580308202

SUPPORT REAR SEAT BLACK

$22.99

$

Usually ships in 3-10 days

0

8

Husqvarna 589483501

SPRING.COMPRESS.SEAT.TAPERED

$9.49

$

In Stock, only 2 left!

0

9

Husqvarna 532401545

SWITCH.SEAT.DELTA.OPC.

$39.99

$

In Stock, Qty 6

0

11

Husqvarna 585989301

GROMMET.BUMPER

$4.99

$

In Stock, Qty 5

0

12

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

13

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 510422701

RHSNB 5/16-18 X 2-1/2 GR5 ZD

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 874780620

BOLT
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

16

Husqvarna 539110303

BOLT, SHOULDER

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

20

Husqvarna 501051801

WASHER.WINGED.3/8ID.1.5OD

$4.99

$

In Stock, only 2 left!

0

21

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

22

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

25

Husqvarna 819141614

RP WASHER 3/8 FLAT
(Superseded to 539990517)

$3.99

$

Usually ships in 3-10 days

0
