Z 1404K (80722) - Snapper Zero-Turn Mower, 14hp Motor Mount Assembly (Part 1) Parts Diagram

Zero-Turn Mower, 14hp

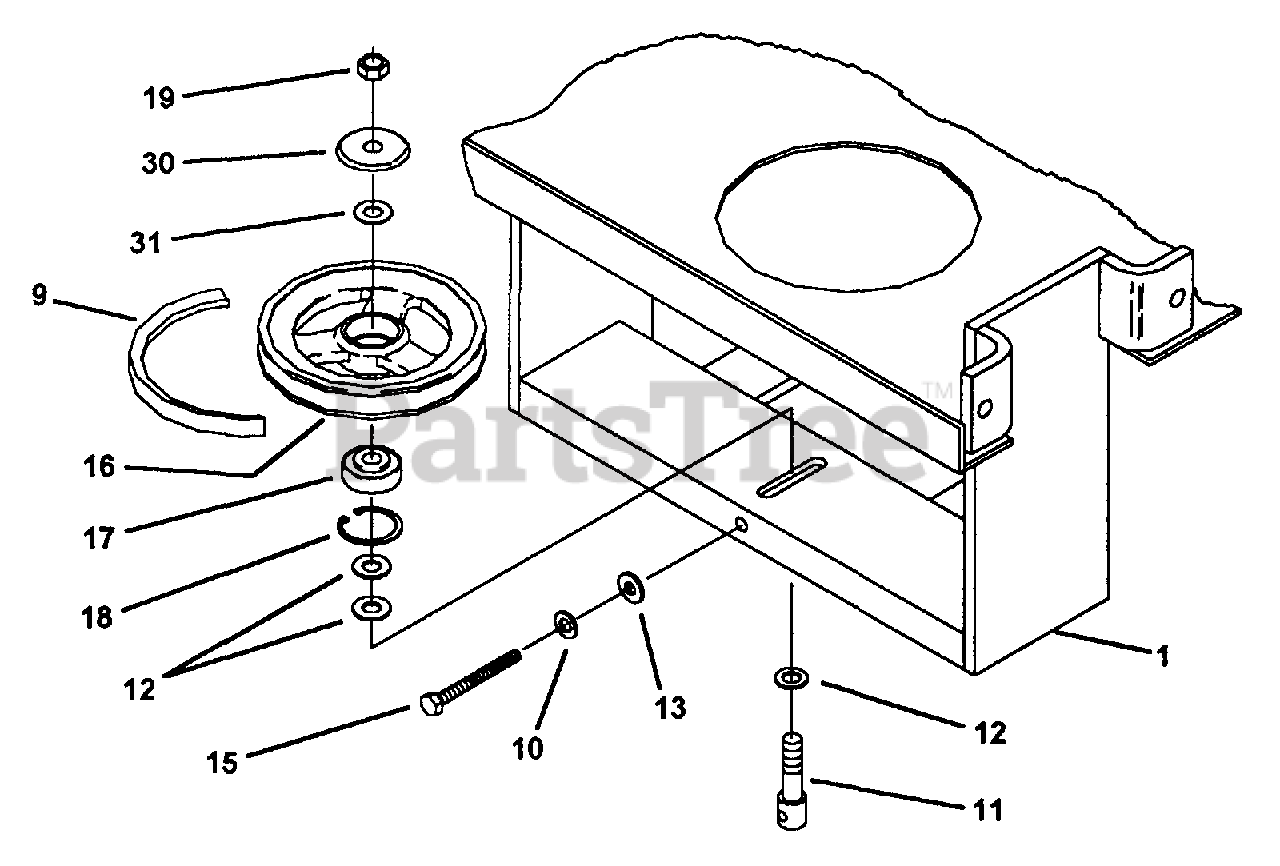

Motor Mount Assembly (Part 1) Parts Diagram

  • Title
1

Snapper 7062447

MOTOR MOUNT WELDMENT
(Superseded to 7062447YP)

$387.99

$

Usually ships in 2-12 days

0

9

Snapper 7062465

BELT, A-80 KEVLAR, MAIN DRIVE BELT

$49.99

$

Usually ships in 2-12 days

0

10

Snapper 7079267

LOCKWASHER, 5/16" SPLIT SPRING
(Superseded to 7079267YP)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper 7079404

STUD, ADJUSTABLE

$

$

Not available

12

Snapper 7090250

WASHER, FLAT STD. 1/2"
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

13

Snapper 7090188

WASHER, FLAT STD. 5/16"
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

15

Snapper 7079584

CAPSCREW, 5/16-18 X 3" GR.2 FULL THRD.
(Superseded to 7079584YP)

$6.49

$

Usually ships in 2-12 days

0

16

Snapper 7062454

IDLER PULLEY ASSEMBLY

$

$

Not available

17

Snapper 7062466

BEARING, WIDE INTER-RACE

$

$

Not available

18

Snapper 7062036

SNAP RING,INTERNAL 40mm BORE
(Superseded to 7062036YP)

$4.99

$

Usually ships in 2-12 days

0

19

Snapper 7079277

LOCKNUT, 1/2-13, NYLOC

$

$

Not available

30

Snapper 7062286

WASHER, BEARING CAP
(Superseded to 7062286YP)

$11.99

$

Usually ships in 2-12 days

0

31

Snapper 7079306

WASHER, 1/2" NOM. TYPE B NARROW

$

$

Not available
