Z 1402K (80184) - Snapper Zero-Turn Mower, 14hp 14 H.P. Engine Assembly Parts Diagram

Zero-Turn Mower, 14hp

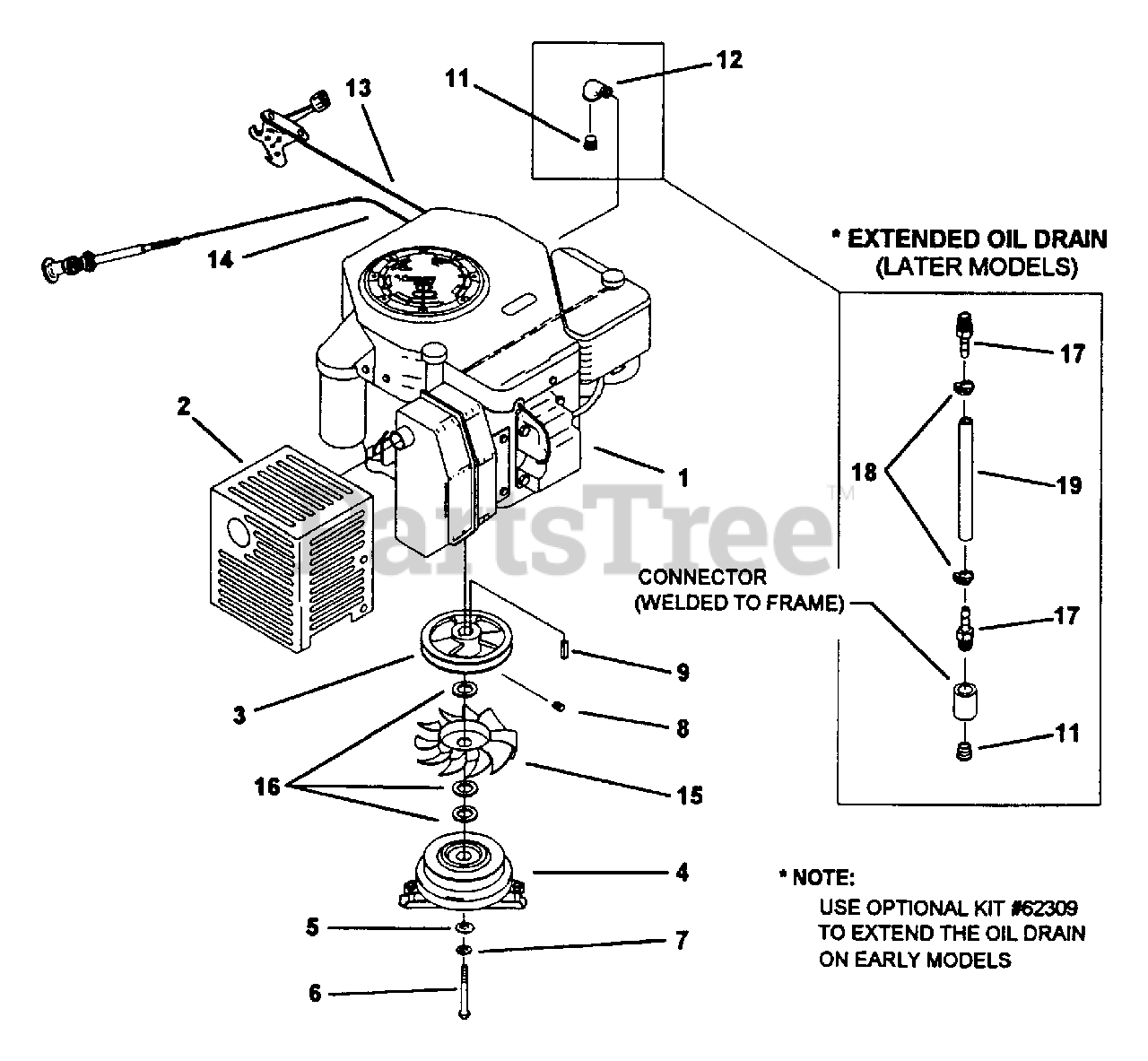

14 H.P. Engine Assembly Parts Diagram

  • Title
1

--

ENGINE, 14 HP KOHLER COMMAND

$

$

Not available

2

Snapper 7079891

MUFFLER GUARD WELDMENT, KOHLER
(Superseded to 7079891YP)

$67.99

$

Usually ships in 2-12 days

0

3

Snapper 7079736

PULLEY, MOTOR DRIVE

$

$

Not available

4

Snapper 7079446

CLUTCH, ELECTRIC, 1" BORE
(Superseded to 7079446YP)

$542.99

$

Usually ships in 2-12 days

0

5

Snapper 7079022

WASHER, 15/32" I.D.

$

$

Not available

6

Snapper 7062264

CAPSCREW, HEX HD. 10M-1.5 X 90MM

$

$

Currently unavailable

Snapper 7079830

CAPSCREW, HEX HD. 10M-1.5 X 75MM

Note: IF THE MOWER DOES NOT HAVE 7" FAN (ITEM 15) AND SHIM WASHERS (ITEM 16). USE #79830, CAPSCREW, M10-1.5 X 75MM.

$

$

Currently unavailable

7

Snapper 7091301

LOCKWASHER, 7/16" SPLIT SPRING
(Superseded to 704007)

Note: Was 90247

$4.49

$

In Stock, Qty 20+

0

8

Snapper 7079823

SETSCREW, SOCKET HD. 5/16-18 X 3/8"
(Superseded to 7079823YP)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 7079000

KEY, 1/4" SQ. X 1"
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 1 left!

0

?10

Snapper 7079237

DECAL, "PERIODICALLY CLEAN"
(Superseded to 7079237YP)

$5.99

$

Usually ships in 2-12 days

0

11

Snapper 7079367

PLUG, PIPE 3/8"

$

$

Not available

12

Snapper 7017420

ELBOW, STREET, 3/8" 90D. SCH. 40

Note: Was 79852

$

$

Not available

13

Snapper 7079865

CABLE, THROTTLE 12HP & 14HP

$

$

Not available

14

Snapper 7079866

CABLE, CHOKE 12HP & 14HP
(Superseded to 7079866YP)

$30.99

$

Usually ships in 2-12 days

0

15

Snapper 7062236

FAN, 7" DIA. 10 BLADE CW

$

$

Not available

16

Snapper 7062242

WASHER, SHIM

$

$

Not available

17

Snapper 7062296

HOSE BARB, 3/8" HOSE X 3/8" MPT

$

$

Not available

18

Snapper 7079861

HOSE CLAMP, 19/32-21/32, NYLON
(Superseded to 7079861YP)

$3.99

$

Usually ships in 2-12 days

0

19

Snapper 7062288

HOSE, 8" LONG

$

$

Not available

Snapper 7079830

CAPSCREW, M10-1.5 X 75MM

$

$

Currently unavailable
