YZ 20485 BVE (84943) - Snapper Scrambler 48" Zero-Turn Mower, 20hp 48" MOWER DECK ASSEMBLY (Part 1) Parts Diagram

Scrambler 48" Zero-Turn Mower, 20hp

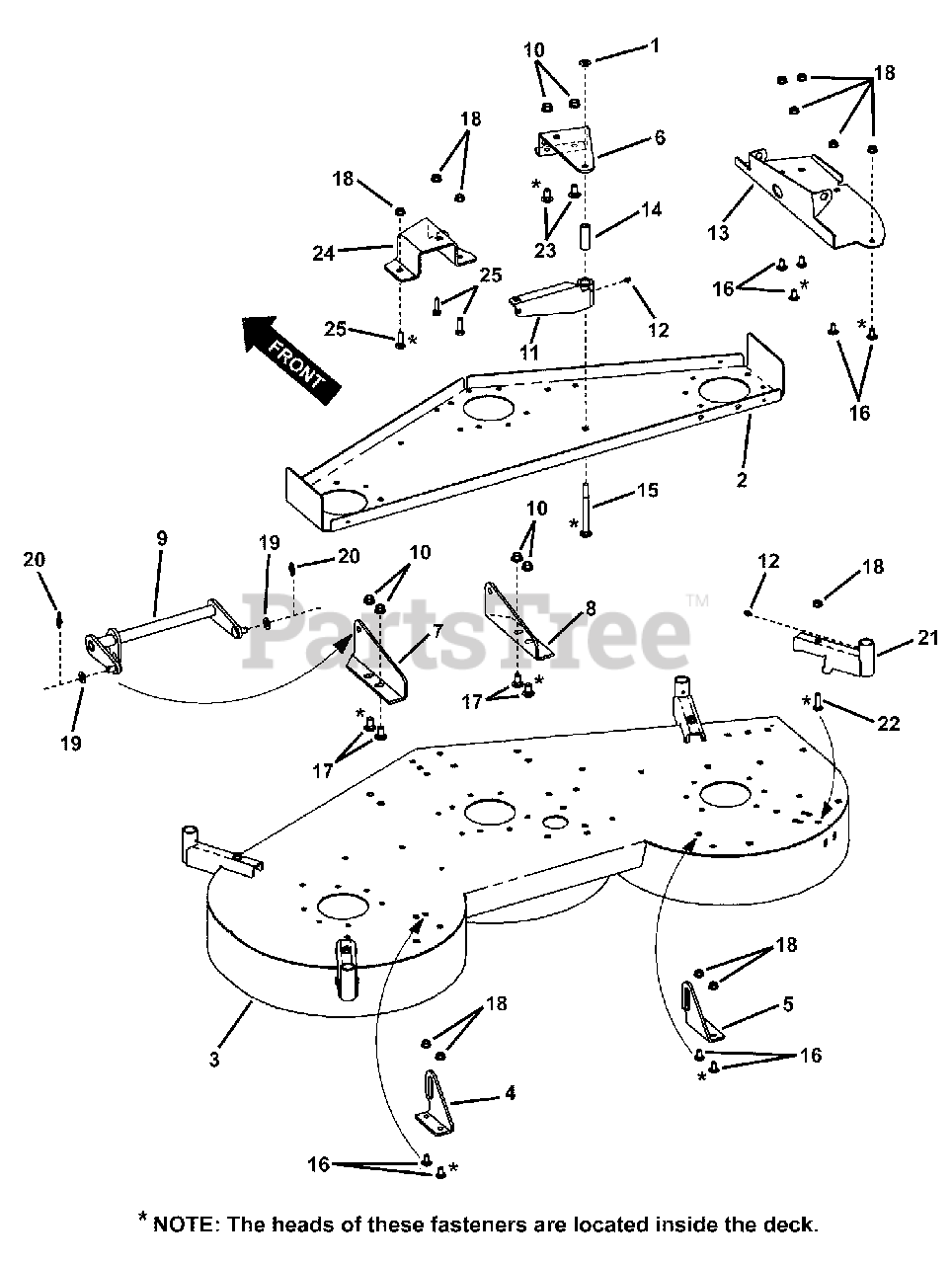

48" MOWER DECK ASSEMBLY (Part 1) Parts Diagram

  • Title

1

Snapper 7013847

RETAINER, 3/8" Bolt
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0

2

Snapper 7034321

STIFFENER, 48" Deck, HOZ
(Superseded to 7034321YP)

$125.99

$

Usually ships in 2-12 days

0

3

Snapper 7044848

WELDMENT, 48" Deck
(Superseded to 7044848YP)

$547.99

$

Usually ships in 2-12 days

0

4

Snapper 7047047

HANGER Rear R.H.
(Superseded to 7047047YP)

$11.99

$

Usually ships in 2-12 days

0

5

Snapper 7047048

HANGER Rear L.H.

$

$

Not available

6

Snapper 7047049

BRACKET, Pulley Mounting
(Superseded to 7047049YP)

$30.99

$

Usually ships in 2-12 days

0

7

Snapper 7074230

BRACKET, Front Lift L.H.
(Superseded to 7074230YP)

$38.99

$

Usually ships in 2-12 days

0

8

Snapper 7074231

BRACKET, Front Lift R.H.
(Superseded to 7074231YP)

$34.99

$

Usually ships in 2-12 days

0

9

Snapper 7059240

WELDMENT, Front Lift, 48

Note: Ref: Item 22 on 48" FRONT FRAME & COVER ASSEMBLY page

$

$

Not available

10

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

11

Snapper 7058076

ASSEMBLY, Idler Arm/Lube Fitting
(Superseded to 7058076YP)

Note: incl. 46706, Idler Arm Weldment & one item 12

$91.99

$

In Stock, only 2 left!

0

12

Snapper 7013864

LUBE FITTING, Straight (press-fit for .187 dia. Hole)
(Superseded to 7013864SM)

$3.49

$

In Stock, Qty 12

0

13

Snapper 7074951

BRACKET, Hinge, 48" Deck
(Superseded to 7074951YP)

$48.99

$

Usually ships in 2-12 days

0

14

Snapper 7071698

SPACER, Pivot Collar, 48 HOZ

$27.99

$

Usually ships in 2-12 days

0

15

Snapper 7091888

BOLT, 3/8-16 x 4" Square Neck Carriage, GR 5
(Superseded to 7091888YP)

$10.99

$

In Stock, only 1 left!

0

16

Snapper 7090799

BOLT, 5/16-18 x 5/8" Short Neck Carriage, GR 5
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

17

Snapper 7091923

BOLT, 3/8-16 x 3/4" Short Neck Carriage, GR 5
(Superseded to 7091923SM)

$3.49

$

Usually ships in 2-12 days

0

18

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

19

Snapper 7090122

WASHER, 3/8" SAE Flat
(Superseded to 703878)

Note: replaces 91514, 91296

$3.99

$

In Stock, Qty 20+

0

20

Snapper 7091593

PIN, 3/8 Self Locking Cotter
(Superseded to 703355)

$3.99

$

In Stock, Qty 14

0

21

Snapper 7044801

WELDMENT, Caster Bracket

$

$

Not available

22

Snapper 7091169

BOLT, 5/16-18X1-1/8" Short Neck Carriage, GR 5
(Superseded to 704002)

$4.49

$

Usually ships in 2-12 days

0

23

Snapper 7091923

BOLT, 3/8-16 x 3/4" Short Neck Carriage, GR 5
(Superseded to 7091923SM)

$3.49

$

Usually ships in 2-12 days

0

24

Snapper 7075587

BRACKET, Stationary Idler
(Superseded to 7075587YP)

$39.99

$

Usually ships in 2-12 days

0

25

Snapper 7027168

SCREW, 5/16-18 x 1" Hex Head Cap, GR 5
(Superseded to 703585)

Note: Was 90636

$4.99

$

In Stock, only 1 left!

0
