YZ 20484 BVE (84889) - Snapper Yard Cruiser 48" Zero-Turn Mower, 18hp Fuel Tank & Operator's Seat (YZ Series 4) (Part 2) Parts Diagram

Yard Cruiser 48" Zero-Turn Mower, 18hp

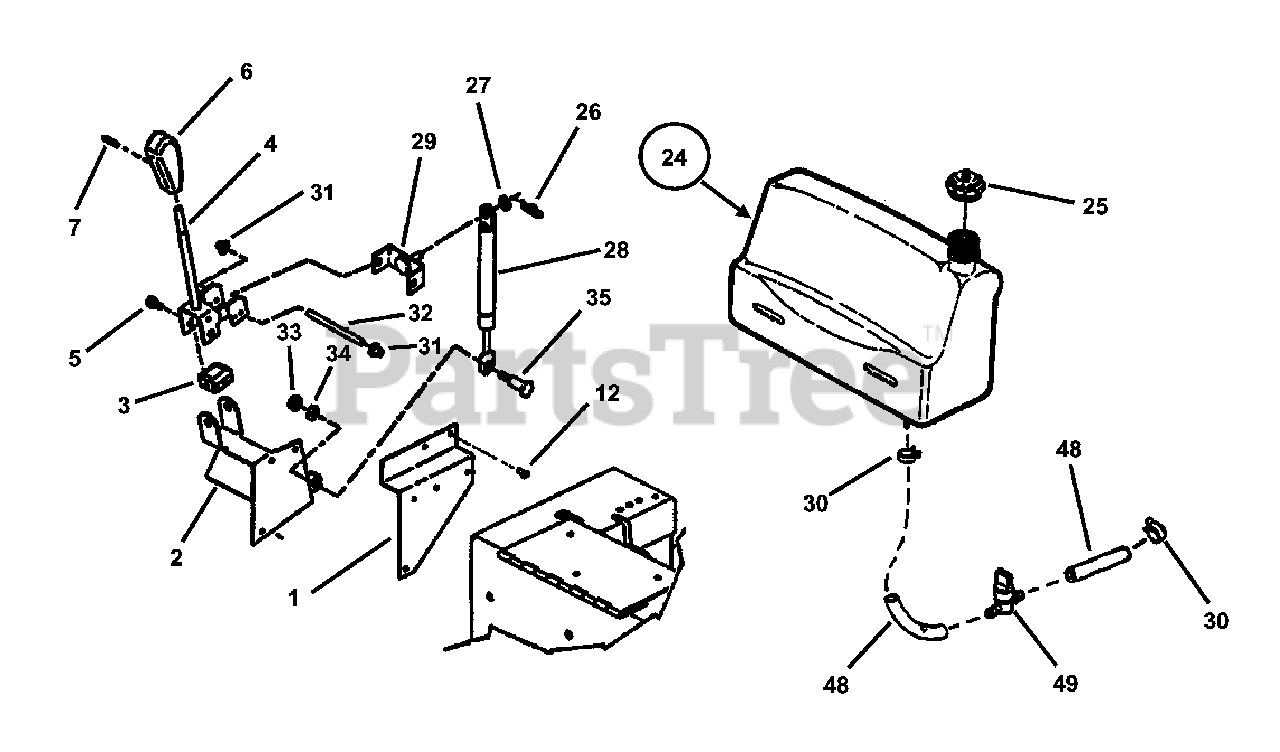

Fuel Tank & Operator's Seat (YZ Series 4) (Part 2) Parts Diagram

  • Title
1

Snapper 7035483

BRACKET, R. Hand Tank Support

$

$

Not available

2

Snapper 7042637

BRACKET, Joystick
(Superseded to 7042637YP)

$87.99

$

Usually ships in 2-12 days

0

3

Snapper 7035533

PIVOT, Joystick Control
(Superseded to 7035533YP)

$22.99

$

In Stock, only 2 left!

0

4

Snapper 7042636

WELDMENT, Joystick Control Handle

$

$

Not available

5

Snapper 7091800

BOLT, 5/16-18 x 3/4" Shoulder

$

$

Not available

6

Snapper 7023656

LEVER, Shift Handle
(Superseded to 7023656YP)

$5.99

$

In Stock, Qty 6

0

7

Snapper 7090844

PIN, 3/16 x 3/4" Roll
(Superseded to 2816169SM)

$4.49

$

Usually ships in 2-12 days

0

12

Snapper 7090999

SCREW, 1/4 x 5/8" Pan Head Self-Tap
(Superseded to 7090999FS)

$3.99

$

Usually ships in 2-12 days

0

24

Snapper 7051905

Ass'y, Fuel Tank
(Superseded to 7051905YP)

Note: (Incl. item 25)

$201.99

$

In Stock, only 2 left!

0

25

Snapper 7012515

CAP, Fuel Tank (w/screw vent)
(Superseded to 7012515YP)

$19.99

$

In Stock, only 3 left!

0

26

Snapper 7091593

COTTER-PIN, 3/8 Self Locking
(Superseded to 703355)

$3.99

$

In Stock, Qty 14

0

27

Snapper 7090188

WASHER, 11/32 x 11/16" Flat
(Superseded to 703350)

Note: Was 91296

$4.49

$

In Stock, only 1 left!

0

28

Snapper 7044717

CYLINDER, Joystick Control
(Superseded to 7044717YP)

$170.99

$

Usually ships in 2-12 days

0

29

Snapper 7044763

BRACKET, Joystick Control
(Superseded to 7044763YP)

$29.99

$

Usually ships in 2-12 days

0

30

Snapper 7029900

CLAMP, Fuel Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

31

Snapper 7091020

PUSH-NUT, 1/4"
(Superseded to 7091020YP)

$4.49

$

In Stock, Qty 20+

0

32

Snapper 7044702

PIN, Joystick
(Superseded to 7044702YP)

$4.49

$

Usually ships in 2-12 days

0

33

Snapper 7091511

NUT, 5/16-18 Hex, Grade 5
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

35

Snapper 7014664

BOLT, 5/16-18 Shoulder
(Superseded to 7014664SM)

$1.99

$

Usually ships in 2-12 days

0

48

Snapper 7073240

LINE, Fuel, 5"
(Superseded to 7073240SM)

Note: Was 32038

$24.99

$

Usually ships in 2-12 days

0

49

Snapper 7016325

SHUT-OFF VALVE, Fuel
(Superseded to 7016325SM)

$19.99

$

In Stock, Qty 11

0
