YZ 20484 BVE (84889) - Snapper Yard Cruiser 48" Zero-Turn Mower, 18hp Caster, Front Wheel & Tire Assembly Parts Diagram

Yard Cruiser 48" Zero-Turn Mower, 18hp

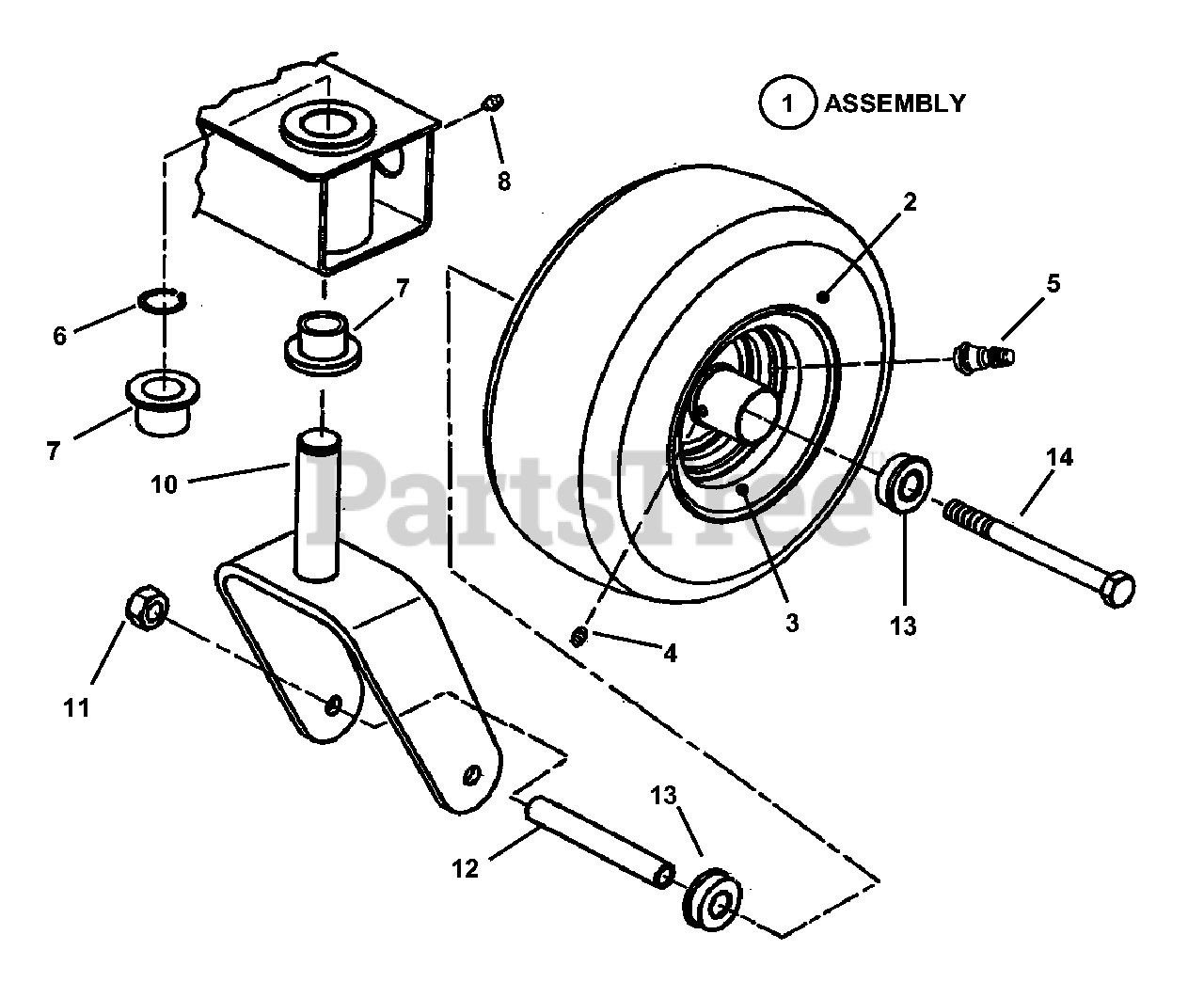

Caster, Front Wheel & Tire Assembly Parts Diagram

  • Title

1

Snapper 7053980

ASSEMBLY, Front Wheel & Tire (Complete)
(Superseded to 1734013SM)

Note: (Includes Items 2 thru 6)

$110.99

$

In Stock, Qty 20+

0

2

Snapper 7035618

TIRE, 11 x 4.00-5, Smooth Tread
(Superseded to 7035618SM)

$75.99

$

In Stock, only 3 left!

0

3

Snapper 7072197

RIM, Caster Wheel
(Superseded to 1734013SM)

Note: Was 29122

$110.99

$

In Stock, Qty 20+

0

4

Snapper 7014247

FITTING, Lube
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

5

Snapper 7012234

VALVE, Air (Snap-in)
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

6

Snapper 7012709

RING, 1" External Retaining
(Superseded to 703993)

$3.49

$

In Stock, Qty 13

0

7

Snapper 7023556

BUSHING, Caster
(Superseded to 7023556YP)

$8.49

$

In Stock, Qty 20+

0

8

Snapper 7013864

LUBE FITTING, Straight (press-fit for .187 dia. Hole)
(Superseded to 7013864SM)

$3.49

$

In Stock, Qty 12

0

10

Snapper 7041783

CASTER, Pivot Yoke
(Superseded to 7400191DYP)

$107.99

$

Usually ships in 2-12 days

0

11

Snapper 7090839

NUT, 7/16-14 Hex Center Lock
(Superseded to 7090839SM)

$4.99

$

In Stock, Qty 5

0

12

Snapper 7035359

TUBE, 5/8 O.D. x 14 Ga. x 4.51
(Superseded to 1734841SM)

$12.99

$

In Stock, Qty 20+

0

13

Snapper 7035358

BEARING, Ball 5/8 x 1-3/8"
(Superseded to 7035358SM)

$37.99

$

In Stock, only 4 left!

0

14

Snapper 7091772

SCREW, 7/16-14 x 6" Hex Head Cap, Grade 5
(Superseded to 7091772SM)

$8.49

$

In Stock, Qty 20+

0
