YZ 18426 BVE (85695) - Snapper Scrambler 42" Zero-Turn Mower, 18hp 42" FRONT FRAME & COVER ASSEMBLY Parts Diagram

Scrambler 42" Zero-Turn Mower, 18hp

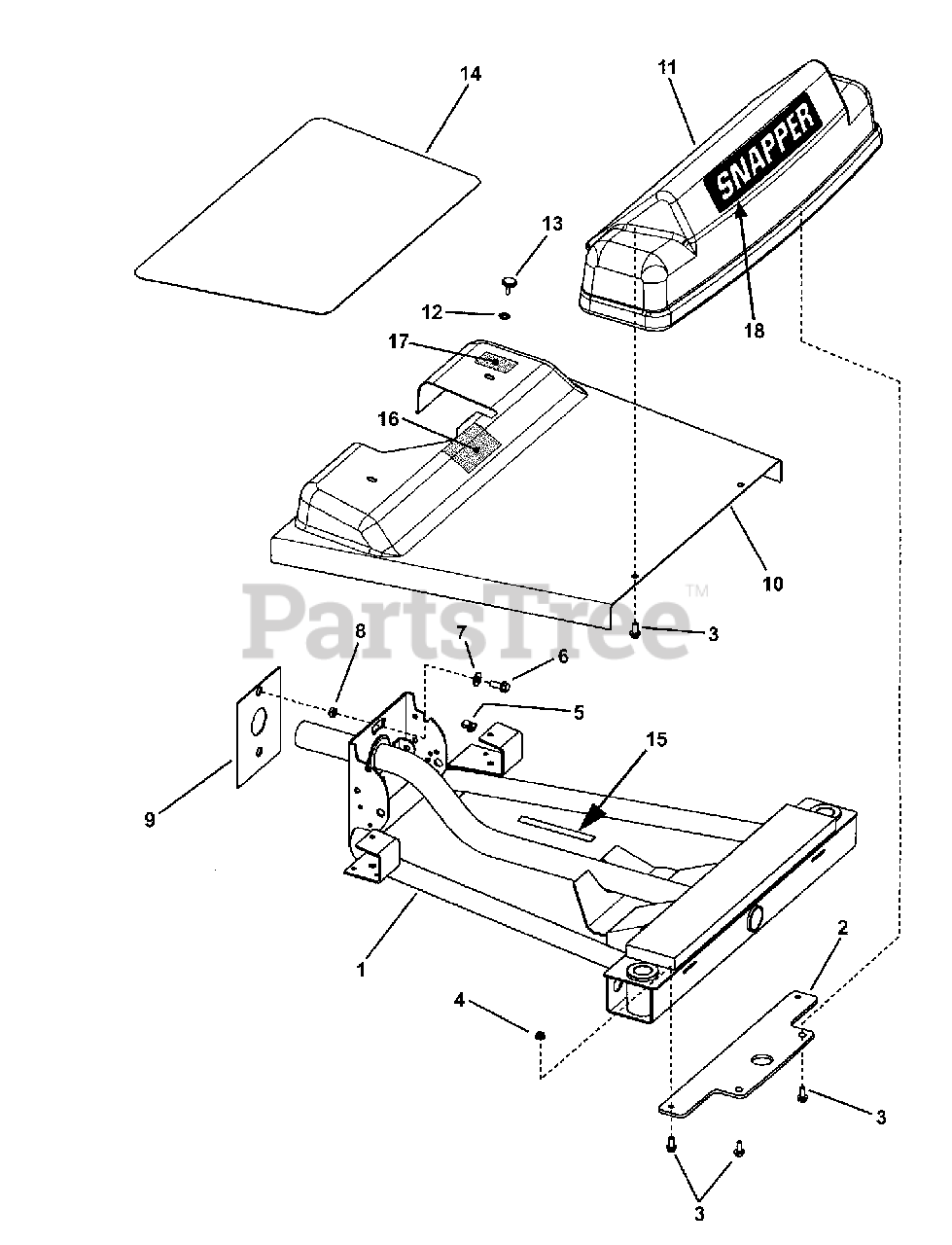

42" FRONT FRAME & COVER ASSEMBLY Parts Diagram

  • Title

1

Snapper 7059380

WELDMENT, Front Frame Series 3
(Superseded to 7059380YP)

$911.99

$

Usually ships in 2-12 days

0

2

Snapper 7075910

PLATE, Footrest Support

$

$

Not available

3

Snapper 7090595

BOLT, 5/16-18 x 3/4" Hex Flange Lock
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

4

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR5
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

5

Snapper 7028260

FASTENER, "U" Type
(Superseded to 7028260YP)

$4.49

$

Usually ships in 2-12 days

0

6

Snapper 7090324

SCREW, 3/8-16 x 1" Hex Washer Self-tap
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

7

Snapper 7090517

WASHER, 3/8" FLAT (wide)
(Superseded to 7090517SM)

$4.49

$

In Stock, Qty 8

0

8

Snapper 7035375

SPACER, Front Frame Pivot

$

$

Not available

9

Snapper 7035374

PLATE, Front Frame Slip

$7.99

$

Usually ships in 2-12 days

0

10

Snapper 7075841

FLOOR PAN, HOZ

$

$

Not available

11

Snapper 7075219

FOOTREST, HOZ
(Superseded to 7075219YP)

$262.99

$

Usually ships in 2-12 days

0

12

Snapper 7091890

WASHER, 1/4" Internal/External Lock
(Superseded to 7091890SM)

$4.49

$

Usually ships in 2-12 days

0

13

Snapper 7023341

KNOB (1/4-20 thread)

$7.99

$

Usually ships in 2-12 days

0

14

Snapper 7075885

MAT, Floor
(Superseded to 7075885YP)

$26.99

$

In Stock, only 1 left!

0

15

Snapper 7041818

PAD, Floor Board Support
(Superseded to 7041818YP)

$10.99

$

In Stock, only 1 left!

0

16

Snapper 7075993

DECAL, Warning, Read Manuals & Instructions

Note: see decal page

$

$

Not available

17

Snapper 7046426

DECAL, Deck Height

Note: see decal page

$4.99

$

Usually ships in 2-12 days

0

18

Snapper 7071916

DECAL, SNAPPER (14.56" long)
(Superseded to 1750913YP)

$12.99

$

In Stock, only 1 left!

0
