YZ 16424 BVE (84890) - Snapper Yard Cruiser 42" Zero-Turn Mower, 16hp 42" Front Frame & Cover Assembly Parts Diagram

Yard Cruiser 42" Zero-Turn Mower, 16hp

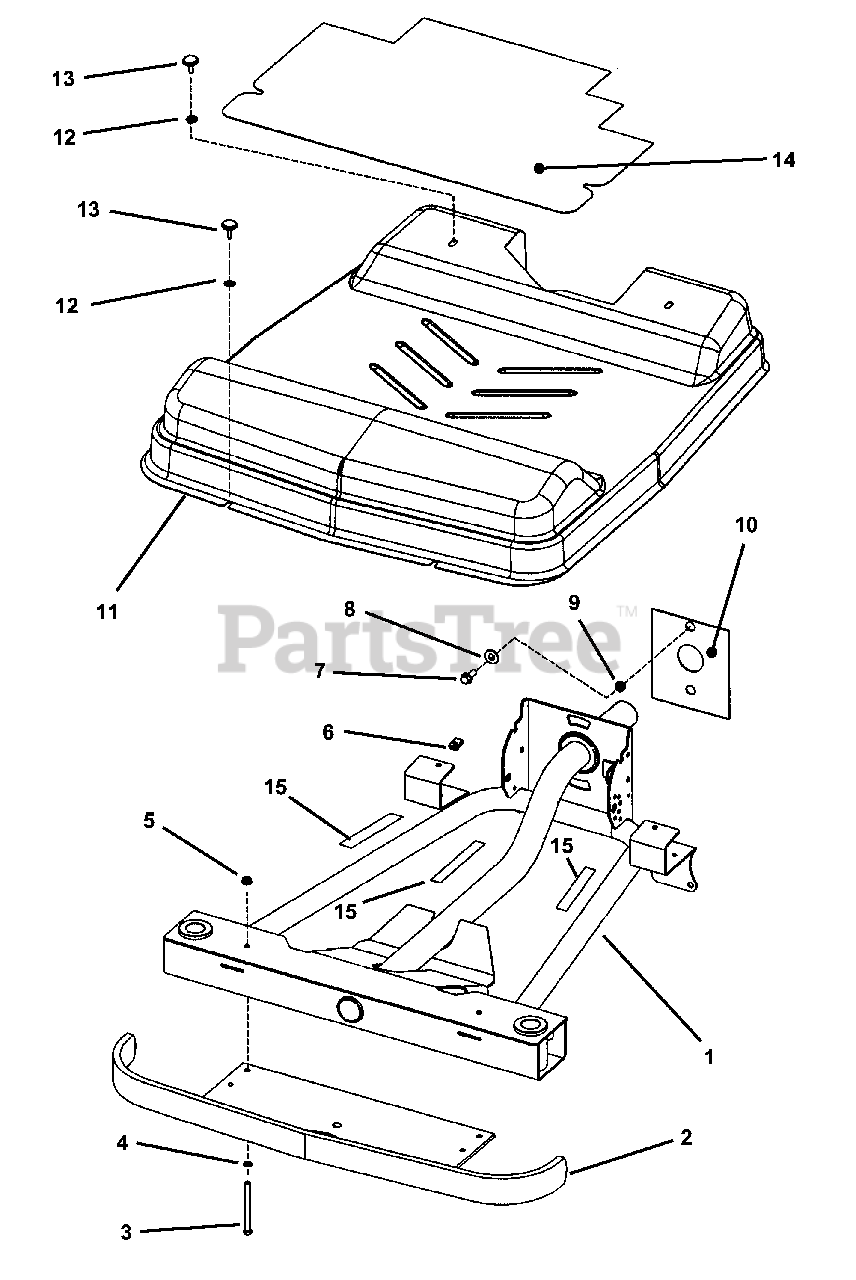

42" Front Frame & Cover Assembly Parts Diagram

  • Title

1

Snapper 7059380

FRAME, Front
(Superseded to 7059380YP)

$911.99

$

Usually ships in 2-12 days

0

2

Snapper 7042921

BUMPER, Front

$

$

Not available

3

Snapper 7091058

BOLT, 5/16-18 x 3-3/4"
(Superseded to 7091058YP)

$4.49

$

Usually ships in 2-12 days

0

4

Snapper 7091315

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

5

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

6

Snapper 7028260

FASTENER, "U" Type 1/4"-20
(Superseded to 7028260YP)

$4.49

$

Usually ships in 2-12 days

0

7

Snapper 7090324

SCREW, 3/8-16 x 1" Hex Washer Face, Self-Tap
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

8

Snapper 7090122

WASHER, 3/8" Flat (was 90517)
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

9

Snapper 7035375

SPACER, Front Frame Pivot

$

$

Not available

10

Snapper 7035374

PLATE, Front Frame Pivot

$7.99

$

Usually ships in 2-12 days

0

11

Snapper 7046895

FLOOR, Front Frame
(Superseded to 7046895YP)

$387.99

$

Usually ships in 2-12 days

0

12

Snapper 7091890

WASHER, 1/4" Internal/External Lock
(Superseded to 7091890SM)

$4.49

$

Usually ships in 2-12 days

0

13

Snapper 7023341

KNOB

$7.99

$

Usually ships in 2-12 days

0

14

Snapper 7072141

FLOOR MAT

$

$

Not available

15

Snapper 7041818

PAD, Floor Pan
(Superseded to 7041818YP)

$10.99

$

In Stock, only 1 left!

0
