YZ 16385 BVE (84945) - Snapper Scrambler 38" Zero-Turn Mower, 16hp JOYSTICK & OPERATOR SEAT (Part 2) Parts Diagram

Scrambler 38" Zero-Turn Mower, 16hp

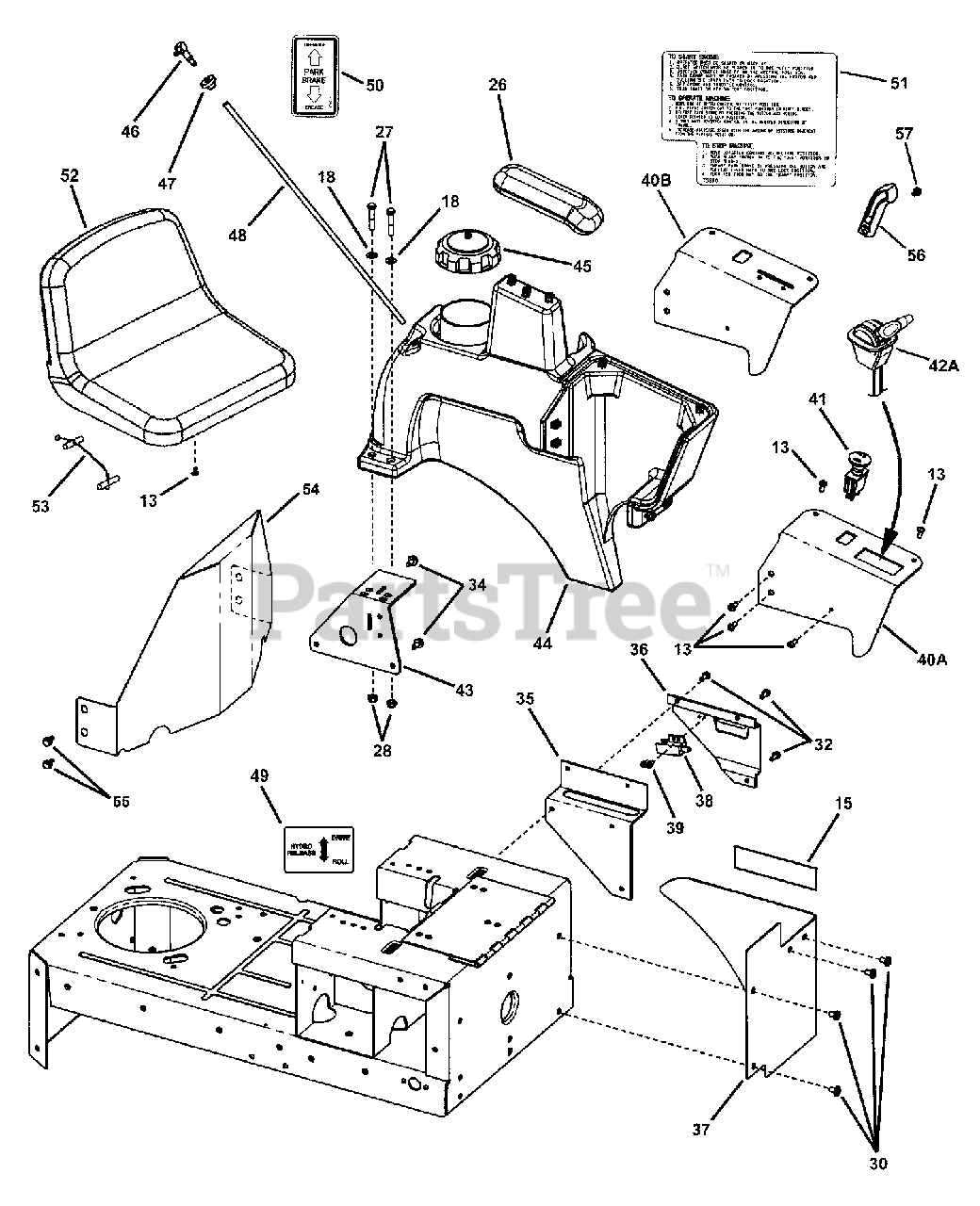

JOYSTICK & OPERATOR SEAT (Part 2) Parts Diagram

  • Title

13

Snapper 7090999

SCREW, 1/4-20 x 5/8" Pan Head Self-Tap
(Superseded to 7090999FS)

Note: (Torx)

$3.99

$

Usually ships in 2-12 days

0

42A

Snapper 7072517

CONTROL, Throttle/Choke, Dual Lever
(Superseded to 7072517SM)

Note: series 5

$118.99

$

In Stock, Qty 7

0

15

Snapper 7075760

DECAL, SNAPPER
(Superseded to 7075760YP)

$11.99

$

Usually ships in 2-12 days

0

18

Snapper 7090188

WASHER, .34 x .69 x .08 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

26

Snapper 7075617

ARM REST, HOZ

$

$

Not available

27

Snapper 7091908

SCREW, 5/16-18 x 1-3/4" Hex Head Cap, GR5
(Superseded to 7091908YP)

$4.99

$

Usually ships in 2-12 days

0

28

Snapper 7091298

NUT, 5/16-18 Hex Nyloc
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

30

Snapper 7091542

SCREW, 5/16-18 x 1/2" Pan Head Self-Tap
(Superseded to 703932)

Note: (Torx)

$4.99

$

Usually ships in 2-12 days

0

32

Snapper 7091819

SCREW, 1/4-20 x 5/8" Hex Washer Self-Tap
(Superseded to 703054)

Note: Was 90362

$4.49

$

In Stock, Qty 5

0

34

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

35

Snapper 7035481

BRACKET, L.H. Tank Support

$

$

Not available

36

Snapper 7075629

BRACKET, Brake/Clutch Detent
(Superseded to 7075629YP)

$25.99

$

Usually ships in 2-12 days

0

37

Snapper 7075609

FENDER, L.H. Lower

$

$

Not available

38

Snapper 7023355

SWITCH, Park Brake (NC/NO)
(Superseded to 7023355YP)

Note: also shown on electronic components page

$17.99

$

In Stock, Qty 20+

0

39

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

Note: (Torx)

$3.49

$

In Stock, Qty 9

0

40A

Snapper 7075611

BRACKET, L.H. Console
(Superseded to 7075611YP)

Note: series 5

$28.99

$

Usually ships in 2-12 days

0

40B

Snapper 7038601

BRACKET, L.H. Console
(Superseded to 7038601YP)

Note: series 6

$45.99

$

Usually ships in 2-12 days

0

41

Snapper 7075884

SWITCH, PTO E.C. (Delta Part No. 6201-219)
(Superseded to 7075884YP)

Note: also shown on electronic components page

$40.99

$

Usually ships in 2-12 days

0

42B

Snapper 7024642

CONTROL, Throttle
(Superseded to 7024642YP)

Note: series 6 (not shown)

$32.99

$

Usually ships in 2-12 days

0

44

Snapper 7058530

ASSEMBLY, Fuel Tank/Left Hand Fender

Note: includes fuel cap (75748), grommet (12337), fitting (74835) & tube (75708)

$

$

Not available

45

Snapper 7075748

GAS CAP w/Screw Vent
(Superseded to 7075748YP)

$59.99

$

Usually ships in 2-12 days

0

46

Snapper 7074835

FITTING, Dapco
(Superseded to 7074835YP)

Note: Dapco part number #11492

$14.99

$

Usually ships in 2-12 days

0

47

Snapper 7012337

GROMMET
(Superseded to 1654930SM)

$7.99

$

In Stock, Qty 20+

0

48

Snapper 7075708

DIP TUBE
(Superseded to 7071872YP)

$33.99

$

Usually ships in 2-12 days

0

49

Snapper 7071683

DECAL, Hydro Release
(Superseded to 7071683YP)

Note: see decal page

$5.99

$

Usually ships in 2-12 days

0

50

Snapper 7075812

DECAL, Park Brake
(Superseded to 7075812YP)

Note: see decal page

$7.99

$

Usually ships in 2-12 days

0

51

Snapper 7075810

DECAL, Operating Instructions
(Superseded to 7075810YP)

Note: see decal page

$7.99

$

Usually ships in 2-12 days

0

52

Snapper 7044897

SEAT, Milsco High Back
(Superseded to 7035271YP)

$353.99

$

Usually ships in 2-12 days

0

53

Snapper 7046561

TETHER, Seat
(Superseded to 7046561YP)

$17.99

$

Usually ships in 2-12 days

0

54

Snapper 7075628

HEAT SHIELD, Engine
(Superseded to 7075628YP)

$25.99

$

Usually ships in 2-12 days

0

55

Snapper 7090858

SCREW, 5/16-18 x 1/2" Hex Washer Self-Tap
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

56

Snapper 7023655

LEVER, Throttle Control
(Superseded to 7023655YP)

Note: series 6

$

$

Not available

57

Snapper 7071921

RIVET, Plastic Snap
(Superseded to 7071921YP)

Note: series 6

$3.49

$

In Stock, only 1 left!

0

43

Snapper 7058511

WELDMENT, Fuel Tank Support
(Superseded to 7058511YP)

$58.99

$

Usually ships in 2-12 days

0
