YZ 16385 BVE (84945) - Snapper Scrambler 38" Zero-Turn Mower, 16hp 38" MOWER DECK ASSEMBLY (Part 3) Parts Diagram

Scrambler 38" Zero-Turn Mower, 16hp

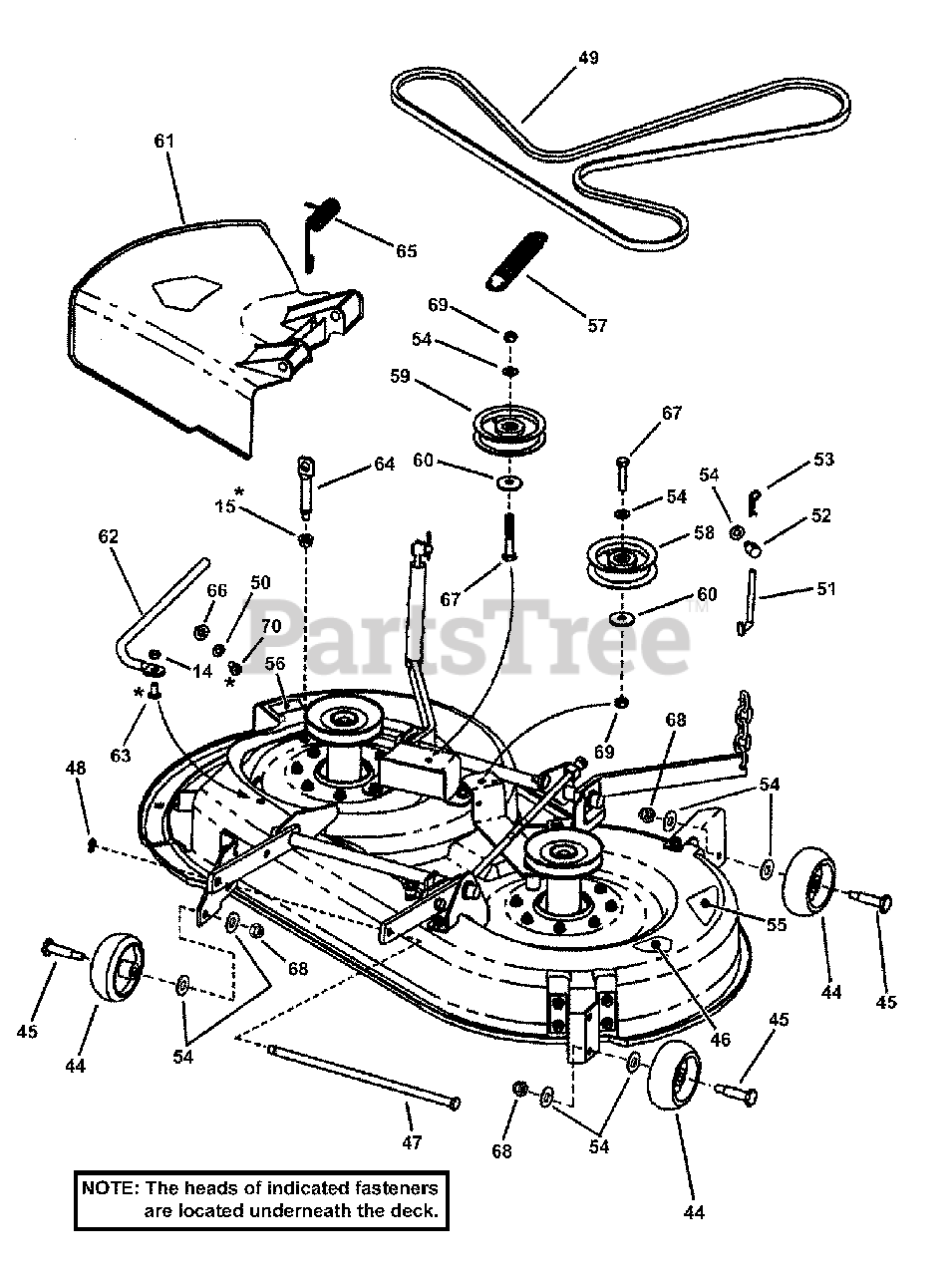

38" MOWER DECK ASSEMBLY (Part 3) Parts Diagram

  • Title

14

Snapper 7091575

NUT, 5/16-18 Hex Center Lock, GR5 or B
(Superseded to 703164)

$3.49

$

In Stock, Qty 18

0

15

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

44

Snapper 7026122

WHEEL, 4 x 1-1/2" Offset
(Superseded to 7026122SM)

$10.99

$

In Stock, only 2 left!

0

45

Snapper 7091526

BOLT, 3/8-24 x .62 Shoulder
(Superseded to 7091526SM)

$

$

Not available

46

Snapper 7013010

DECAL, Danger, Cut Finger (CPSC)
(Superseded to 7013010SM)

Note: replaces 26831

$9.49

$

In Stock, Qty 10

0

47

Snapper 7022717

ROD, Deck Support
(Superseded to 7022717YP)

$48.99

$

Usually ships in 2-12 days

0

48

Snapper 7017847

RING, .438 External Retaining
(Superseded to 7017847YP)

$4.49

$

In Stock, only 1 left!

0

49

Snapper 7029308

V-BELT, HA Section 89.8" Effective Length
(Superseded to 7029308YP)

$56.99

$

In Stock, only 2 left!

0

50

Snapper 7090188

WASHER, .34 x .69 x .08 Flat
(Superseded to 703350)

Note: replaces 91296

$4.49

$

In Stock, only 1 left!

0

51

Snapper 7028728

ADJUSTER, Chain (5/16-18 thread)
(Superseded to 703827)

$10.99

$

In Stock, Qty 11

0

52

Snapper 7028200

SWIVEL, Adjustment
(Superseded to 7028200SM)

$13.99

$

In Stock, only 2 left!

0

53

Snapper 7091503

HAIR PIN, 3/32 x 1-1/2"
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

54

Snapper 7090122

WASHER, 3/8" SAE Flat
(Superseded to 703878)

Note: replaces 91514

$3.99

$

In Stock, Qty 20+

0

55

Snapper 7026154

DECAL, 38 Inch
(Superseded to 7026154SM)

$6.49

$

Usually ships in 2-12 days

0

56

Snapper 7046720

DECAL, Chute/Deflector
(Superseded to 7046720SM)

$7.49

$

In Stock, only 1 left!

0

57

Snapper 7035969

SPRING, Extension 1.03 Dia. X 6.8" long
(Superseded to 7035969SM)

$20.99

$

Usually ships in 2-12 days

0

58

Snapper 7024452

IDLER, 3-1/4" I.D. x 1-1/4" Flat
(Superseded to 1723579SM)

$

$

Not available

59

Snapper 7072319

PULLEY, 3-1/4 Dia. Flat Idler
(Superseded to 7072319SM)

$74.99

$

In Stock, only 1 left!

0

60

Snapper 7012063

WASHER, Cone
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

61

Snapper 7029425

CHUTE, Discharge, 38" Deck
(Superseded to 7104733YP)

$87.99

$

In Stock, Qty 19

0

62

Snapper 7035502

ROD, Pivot, Side Discharge, 38
(Superseded to 7035502SM)

$32.99

$

Usually ships in 2-12 days

0

63

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage, GR5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

64

Snapper 7035503

ROD, Mounting, Side Discharge
(Superseded to 7035503SM)

Note: 3/8-16 thread

$14.99

$

Usually ships in 2-12 days

0

65

Snapper 7035813

SPRING, Torsion-Side Discharge-38 Deck
(Superseded to 7035813SM)

$24.99

$

In Stock, only 1 left!

0

66

Snapper 7036543

TEENUT, 5/16-18 Thread
(Superseded to 7036543SM)

$2.99

$

Usually ships in 2-12 days

0

67

Snapper 7091553

SCREW, 3/8-16 x 1-3/4" Hex Head Cap, GR5
(Superseded to 704289)

Note: replaces 91560

$4.99

$

In Stock, Qty 12

0

68

Snapper 7090289

NUT, 3/8-24 Hex Center Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

69

Snapper 7091585

NUT, 3/8-16 Hex Center Lock, GR5 or B
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

70

Snapper 7091833

SCREW 5/16-18 x 5/8" Cross Recessed Pan Head
(Superseded to 7091833SM)

Note: Was 91918

$4.49

$

In Stock, only 1 left!

0
